• Model NO.：KD-2258
• Power Supply：220V
• Weight：0-50kg
• Certification：CE
• Section Thickness Range：0.5~60μm
• Minimum Setting Value：0.5μm
• Specimen Horizontal Feeding：28mm
• Tolerance：±1%
• Specimen Stroke Length：60 mm
• Maximum Section of Slice：60 X 50 mm
• Mechanized Advance/Return Range：0-28mm
• Dimensions：500 X 460 X 300 mm
• Total Weight：27kg
• Transport Package：Standard Export Package
• Trademark：WEST TUNE
• Origin：China
• HS Code：9027900000
• Production Capacity：200PCS

Basic Info.

Model NO. KD-2258 Power Supply 220V Weight 0-50kg Certification CE Section Thickness Range 0.5~60μm Minimum Setting Value 0.5μm Specimen Horizontal Feeding 28mm Tolerance ±1% Specimen Stroke Length 60 mm Maximum Section of Slice 60 X 50 mm Mechanized Advance/Return Range 0-28mm Dimensions 500 X 460 X 300 mm Total Weight 27kg Transport Package Standard Export Package Trademark WEST TUNE Origin China HS Code 9027900000 Production Capacity 200PCS

Product Description

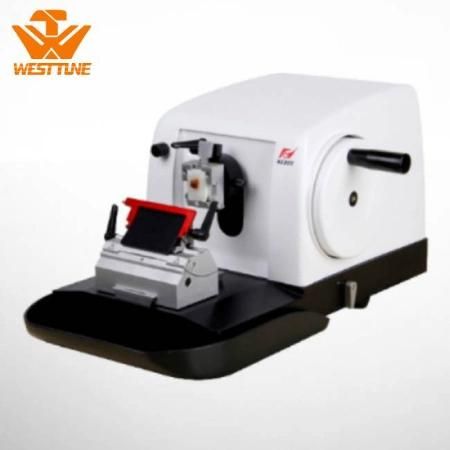

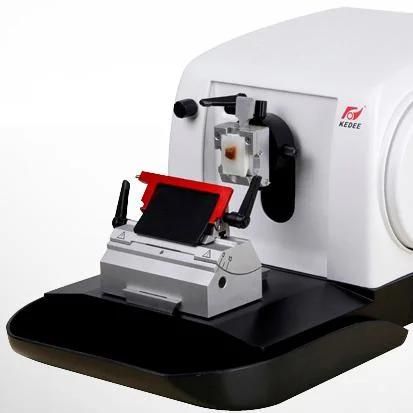

KD-2258 Manual Microtome

KD-2258 rotary microtome is a new generation microtome especially designed to meet the demand of the modern histopathology analysis and research. With imported ball guide and high precesion ball screw , it is ideal selection for tissue sectioning on histopathology for its rational design, compact structure,high degree of accuracy and stability.



Features

• Ergonomical mechanism structure internal; Free of fatigue
• Both of steel knife and disposable blade can be used.
• Specimen clamp can be fixed flexible in 3 dimensional axis ,convenient to adjust the cutting angle.
• Hand-wheel can be locked in any position.
• Specimen retraction, changeable specimen clamp system
• Blade holder can slide to and fro, lateral without touch blade
• Compatible with steel knife holder type N and disposable blade holder type E
• Easy clean encloser
• Easy clean litter groove.

Product Details


Specifications

• Range of the thickness of slice: 0.5~60 μm.
• Setting thickness of slice ranges:
                                  0.5~2 μm     increment       0.5 μm
                                  2~20 μm    increment       1 μm
                                  20~60 μm    increment       5 μm

• Tolerance : ±1%
• Minimum setting value:  0.5μm
• Specimen Horizontal feeding: 28 mm.
• Specimen Stroke Length:   60 mm.
• Maximum section of slice: 60 x 50 mm
• Mechanized advance/return range: 0 - 28 mm.
• Trimming thickness of slice ranges:1-60μm
• Dimension :Length x Width x Height: 500 x 460 x 300 mm
• Weight:27 kg.
