• Model NO.：JT-102SY
• Trademark：ODM
• Origin：China
• HS Code：90318090
• Production Capacity：300 Set,Sets , Week

Basic Info.

Model NO. JT-102SY Trademark ODM Origin China HS Code 90318090 Production Capacity 300 Set/Sets / Week

Product Description

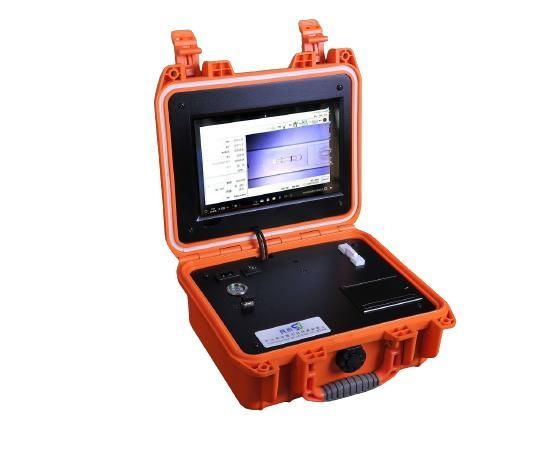

Product Manual

1. Testing scope requirements: livestock and poultry, eggs, aquatic products, feed
2. Test item requirements: antibiotics, hormones and other drug residues
3. Testing method requirements: immune colloidal gold method
4. Detection signal processing method requirements: high-definition CCD image scanning technology
5. Test item curve increase and decrease requirements: able to add and delete standard curves of different test items and curve import function
6. Detection function: automatically analyze valid cards and invalid cards
7. Judgment function: qualitative and quantitative data judgment
8. Instrument structure requirements: engineering plastic shell, portable design
9. Instrument display requirements: 8-inch or above color touch screen
10. Hardware requirements: Intel chip, quad-core or above processor, no less than 2G memory, graphics card, no less than 32G storage capacity.
11. Operating system requirements: windows8 or above operating system, with office software
12. Input function: intelligent Chinese and English input, handwriting input function. With video learning function.
13. Detection speed: fast detection, the detection process is completed within 20-40 minutes, and the detection result and content are automatically judged.
14. Data storage: With large-capacity data storage function, it can save inspection images and results. With 32G storage capacity, it can save more than 100,000 data.
15. Data processing function: The instrument has data reading, processing, exporting, and transmitting functions. Automatically save test results and colloidal gold images, and test records can be imported into U disk.
16. Communication networking requirements: with wired and wireless WiFi, Bluetooth, 3G/4G wireless network communication functions, wireless Internet access, data network transmission, and automatic data connection to the food safety supervision platform can be realized.
17. Printing function: The instrument has an automatic printer function to realize the printing of test report data.
18. Measuring speed: <0.5s
19. Detection output: color detection, CT ratio detection, T-line detection, C-line detection, concentration display.
20. Communication interface: USB, wireless communication: wifi and bluetooth
21. Power consumption: less than 10W, standby time is not less than 24 hours
22. Power supply: 220V, built-in lithium battery power supply


Configuration


Serial number	name	Specification	Quantity
1	Veterinary drug residue detector	JT-102SY	1 set
2	Pipette	10-200µL	1 branch
3	Pipette tip	200µL	100 pieces
4	Plastic centrifuge tube	15mL	10 pieces
5	Electronic balance		1 set
6	Ractopa test card	20 pieces/box	1 box
7	Salbutamol Test Card	20 pieces/box	1 box
8	Electric cup	With centrifuge tube rack	1 piece
