• Model NO.：CSY-GM-PJ-3
• Paddle Radial Run-out：±0.5mm
• Basket Radial Run-out：±1.0mm
• Hardness Range：(2~200)N
• Probe Procession Range：(3~20)mm
• Power：220V, 50Hz, 600W or 110V, 60Hz, 600W
• Dimension：520*380*480mm
• Product Name：Dissolution Tester
• Key Word：Dissolution Tester
• Video Outgoing-Inspection：Provided
• MOQ：1 Piece
• Certificate：CE
• Transport Package：Wooden
• Specification：(520*380*480)mm
• Trademark：BIOMETER
• Origin：China
• HS Code：9031809090
• Production Capacity：1000 Units,Month

Basic Info.

Model NO. CSY-GM-PJ-3 Paddle Radial Run-out ±0.5mm Basket Radial Run-out ±1.0mm Hardness Range (2~200)N Probe Procession Range (3~20)mm Power 220V/ 50Hz/ 600W or 110V/ 60Hz/ 600W Dimension 520*380*480mm Product Name Dissolution Tester Key Word Dissolution Tester Video Outgoing-Inspection Provided MOQ 1 Piece Certificate CE Transport Package Wooden Specification (520*380*480)mm Trademark BIOMETER Origin China HS Code 9031809090 Production Capacity 1000 Units/Month

Product Description

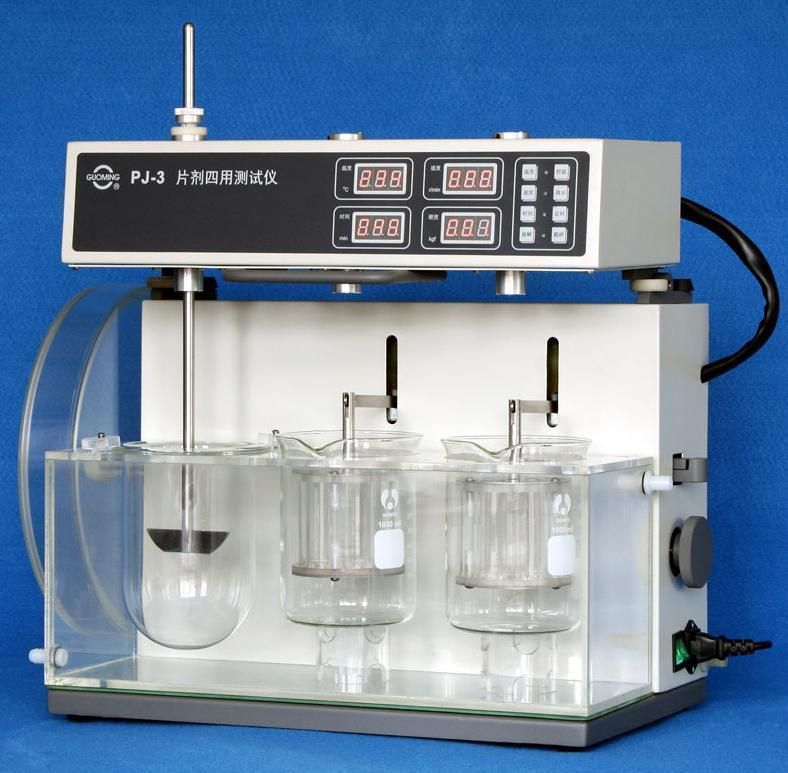

PJ-3 TABLET FOUR-USAGE TESTER
It has four functions: detecting pharmic dissolution, disintegration, friability/abrasion and hardness of tablet.
Applicable standards:
* National standard (Chinese codex) / 2015
* ·Industry standard (Dissolution tester)
* ·Industry standard (Disintegration tester)
* ·Industry standard (Tablet friability tester)
* ·Industry standard (Tablet hardness tester)
* Features:
* Intellectualized, auto-control, auto-test, auto-diagnose, auto-alarm.
* ·The circular water current pumped by magnetism pump can heat the system equally, and the bath liquid can achieve an even
temperature.
* ·Temperature is high accurately auto-controlled.
* ·Auto stop at timing point.
* ·Parameters can be preset at any time, the preset and real data are displayed alternately in time.
* ·It has three vessels and three poles arranged on one line. The head part of the instrument can be artificially turned over
smoothly and flexibly.
* ·Two disintegrations run synchronously. Auto stop at timing point.
* ·High accuracy is achieved in testing rotary speed and counting friability.
* ·The hardness has high accuracy press sensor and hardness data is displayed in Newton.
* ·It tests tablet hardness continuously. The tablet is loaded and pressed artificially.
* ·Auto-display, auto-memorize, auto-reset, auto-retest.
* Specifications:
* Temperature range (20~45)ºC±0.3ºC
* ·Speed range (20~200)rpm±2rpm
* ·Automatic time range (1~900)min±0.5min
* ·Stations of dissolution 3
* ·Paddle radial run-out ±0.5mm
* ·Basket radial run-out ±1.0mm
* ·basket assemblies 2
* ·Nacelle back and forth frequency (30~32 )/ min
* ·Nacelle back and forth range (55±2)mm
* ·Drum 1
* ·Drum's size radius:Φ286mm depth: 39mm
* ·Hardness range (2~200)N
* ·Probe procession range (3~20)mm
* ·Power 220V/ 50Hz/ 600W or 110V/ 60Hz/ 600W
* ·Dimension (520×380×480)mm3
