• Model NO.：BLS-445
• Sampling Quantity：4
• Maximum Power：Main Heating: 600W;Auxiliary Heating: 1000W
• Transport Package：Wooden Case
• Specification：560*370*520mm
• Trademark：BLS
• Origin：Chongqing, China
• HS Code：9027809990
• Production Capacity：2000sets Per Month

Basic Info.

Model NO. BLS-445 Sampling Quantity 4 Maximum Power Main Heating: 600W;Auxiliary Heating: 1000W Transport Package Wooden Case Specification 560*370*520mm Trademark BLS Origin Chongqing, China HS Code 9027809990 Production Capacity 2000sets Per Month

Product Description

ASTM D445 Kinematic Viscometer Lubricant Oil Viscosity Testing Instrument


Introduction
The instrument complies to ASTM D445, ASTM D2270 and national standard GB265-88. It adopts advanced single-chip control, English display, automatic results printing and uniform  temperature of the constant temperature bath. Four viscometers can be placed at the same time. It can also be used to perform other experiment as high viscosity constant temperature bath.


Main Features
1.The instrument adopts advanced single-chip intelligent temperature control, timely temperature display working status such as time and other parameters;
2.It has outer plexiglass insulation cover with uniform temperature distribution in the bath, which has good temperature control effect;
3.Four samples can be simultaneously used for the test, which makes the experiment faster and more convenient;
4.The heater and other components are made of stainless steel that is resistant to corrosion and durable. It has LED lighting with long service life and is easy to observe;
5.The capillary meter card adopts three-point vertical type, which is flexible and convenient to operate with tight clamping.
6. Automatic calculation of kinematic viscosity values and test averages, and automatic printing and storage of measurement results;
7.The number of experiments can be freely adjusted for 1-6 times, and parallel experiments can be performed on two or more oil samples at the same time.


Technical Parameters

Display	English LCD display
Temperature control range	Arbitrarily set from room temperature to 110 °C;
Temperature control accuracy	±0.01 °C or ±0.1 °C, optional
Timing accuracy	±0.1S
Timing range	0.1S-999.9S
Thermostatic bathtub	250×250mm
Printer	Low-power consumption thermal printer with paper width 56mm
Temperature measurement element	Imported precise platinum resistance
Stirring speed	1520 rpm
Maximum power	Main heating: 600W;auxiliary heating: 1000W
Sampling number	4
Working environment	Ambient temperature:15--35ºC;ambient humidity< 85%
Power supply	220V ±10%50Hz±1Hz(can be customized)
Dimensions	560×370×520mm(L×W×H)
Weight	About 22Kg

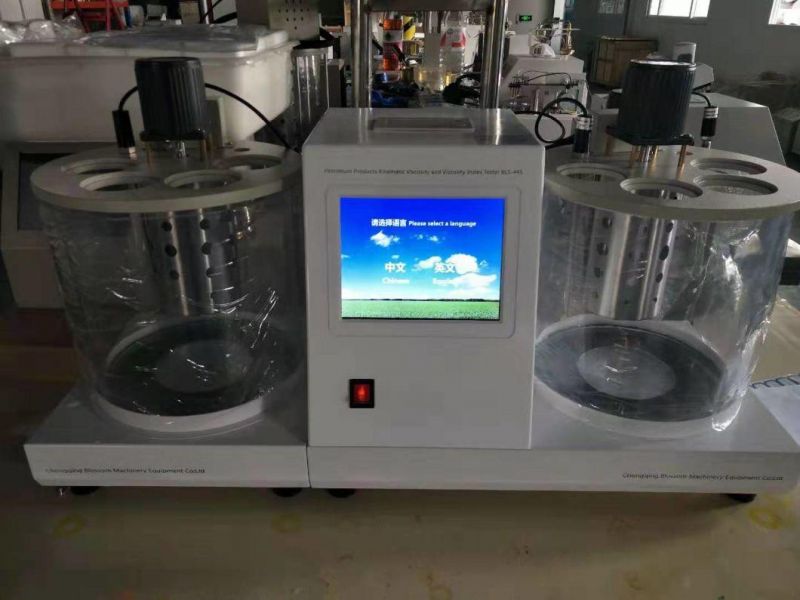

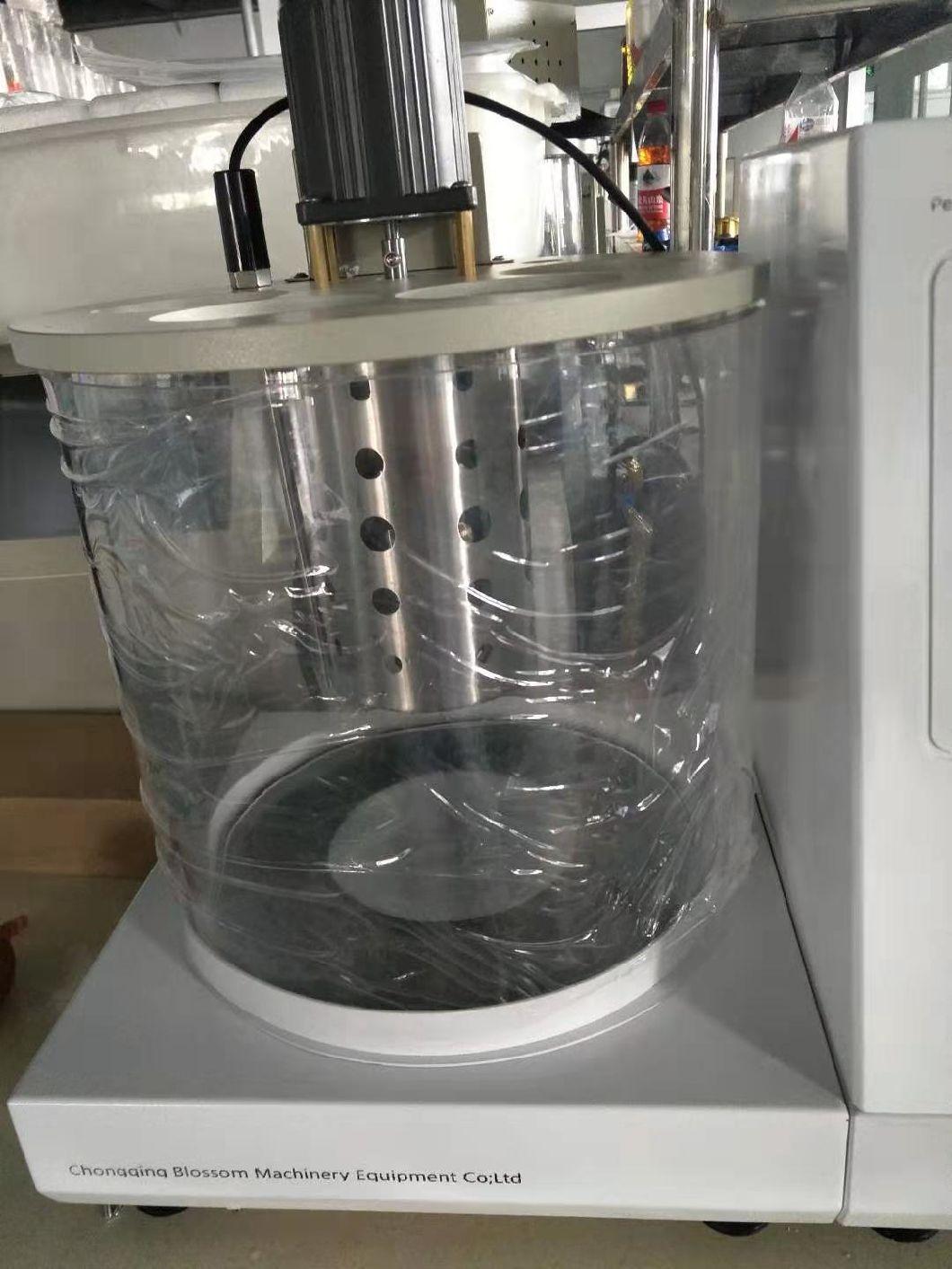

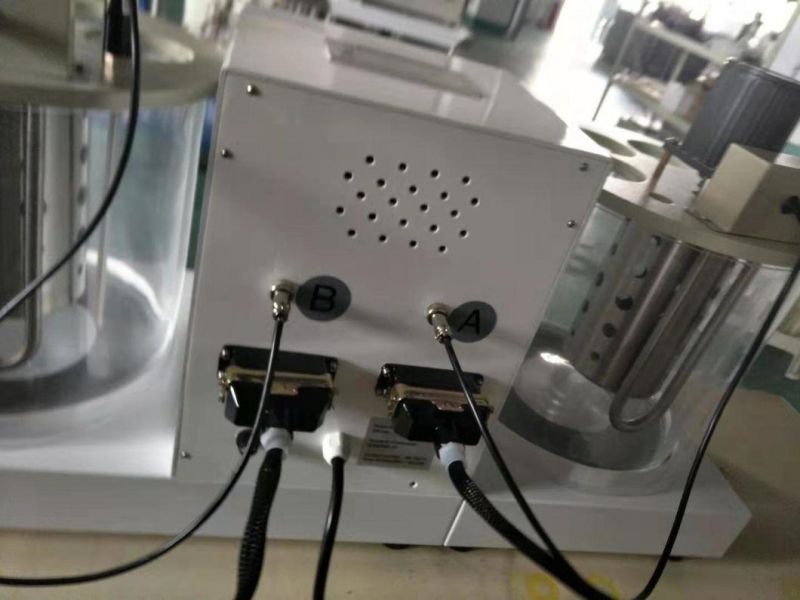

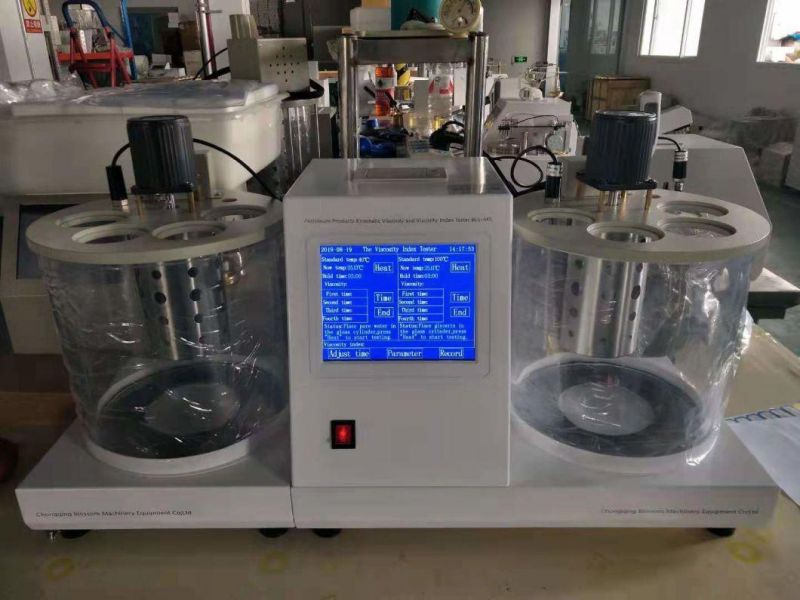

Detailed Images








Packages &Packaging

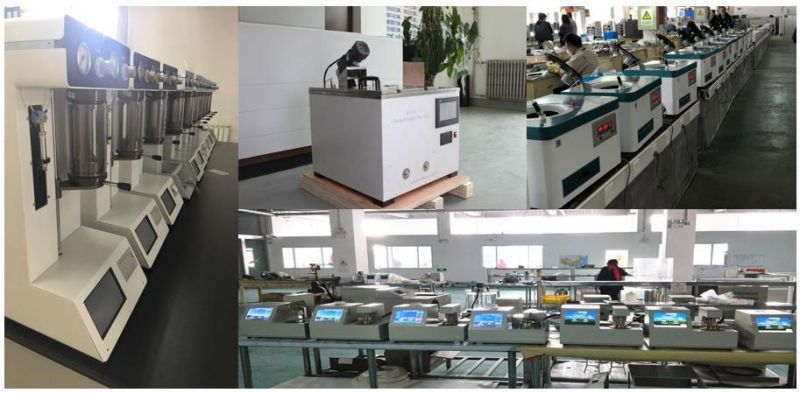

About Us
Chongqing Blossom Machinery Equipment Co., Ltd is located in Chongqing, one of the municipalities directly under the central government. The main products include petroleum products laboratory testing equipment, mechanical machinery such vacuum oil purifier and centrifugal separatos, etc. The equipment is widely applied in construction, petroleum, mechanical, ships, pharmaceutical, lab test and edible oil processing, etc.

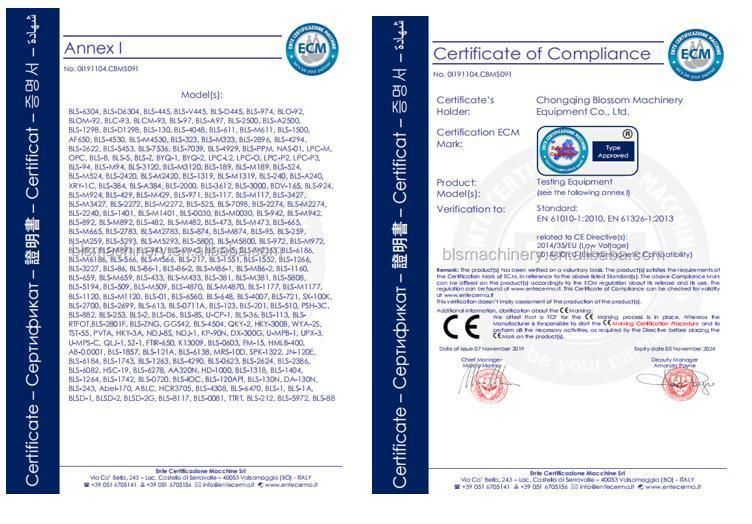

Certifications

Exibitions

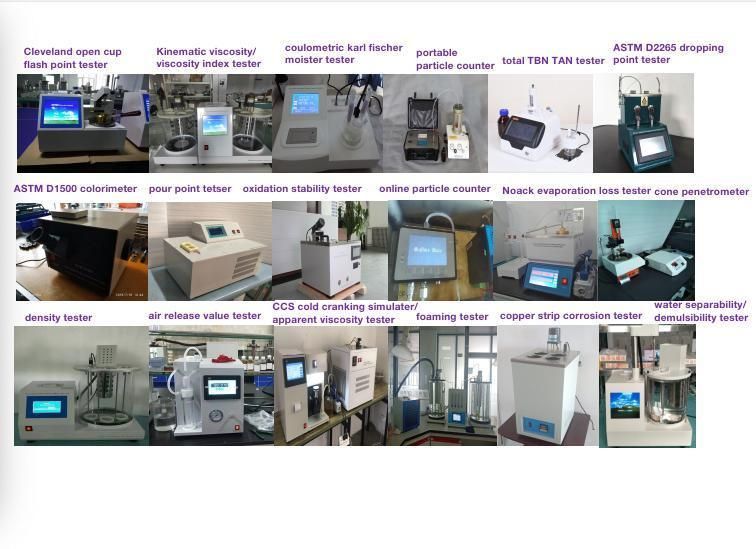

Main lubricant oil laboratory testing equipment
1.Petroleum Products Kinematic Viscosity and Viscosity Index Tester BLS-445(meets ASTM D445 and ASTM D2270)
2. Kinematic Viscosity Meter BLS-V445(meets ASTM D445)
3.Cleveland Open Cup Flash and Fire Point Tester BLO-92(meets ASTM D92)
4.Pensky-Martens Closed Cup Flash Point Tester BLC-93(meets ASTM D93)
5.Pour Point and Cloud Point Tester BLS-97(meets ASTM D97)
6.Petroleum Products Density Meter BLS-1298(meets ASTM D1298)
7.Copper Corrosion Tester BLS-130(meets ASTM D130)
8.Petroleum Products X-ray Fluorescence XRF Sulfur Analyzer Sulfur BLS-4294(meets ASTM D4294)
9.Lube Oil Air Release Value Tester BLS-3427(meets ASTM D3427)
10.Petroleum Products Demulsification/Water Separability Tester BLS-1401(meets ASTM D1401)
11.Lubricating Oils Oxidation Stability Tester BLS-2272(meets ASTM D2272)
12. Lube Oil Foaming Characteristics Tester BLS-892(meets ASTM D892)
13.Engine Oil CCS Cold Cranking Simulator/Apparent Viscosity Tester BLS-5293(meets ASTM D5293)
14.Noack Method Lubricating Oil Evaporation Loss Tester BLS-5800(meets ASTM D5800)
15.Lubricating Greases and Oils Evaporation Loss Tester BLS-972(meets ASTM D972)
16.Dropping Point Tester of Lubricating Grease Over Wide Temperature Range BLS-2265(meets ASTM D2265)
17.Lubricating Grease Dropping Point Tester BLS-566(meets ASTM D566)
18.Lubricating Grease Cone Penetration Tester BLS-217(meets ASTM D217)
19.Portable Oil Particle Counter LPC-P5
20.Coulometric Karl Fischer Water Content Tester BLS-6304(meets ASTM D6304, ASTM D1744, ASTM D1533)
21. Total Acid Number(TAN) and Total Base Number(TBN) Tester BLS-2896(meets ASTM D2896, ASTM D664)
22. Petroleum Products Colorimeter BLS-1500(meets ASTM D1500)
23..Lube Oil Abrasion Tester BLS-01
