• Model NO.：TP-100A
• Operating Mode：Keyboard
• Heating Mode：No Heating
• Off Mode：Manual
• Transport Package：Standard Wooden Cases
• Specification：310mm*180*150
• Trademark：TOP
• Origin：China
• Production Capacity：200sets Per Month

Basic Info.

Model NO. TP-100A Operating Mode Keyboard Heating Mode No Heating Off Mode Manual Transport Package Standard Wooden Cases Specification 310mm*180*150 Trademark TOP Origin China Production Capacity 200sets Per Month

Product Description

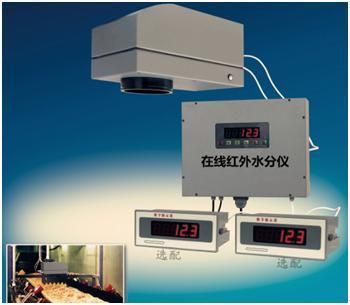

TP-100A Near Infrared On-line Moisture Analyzer






Product features and advantages:
(1) High measurement accuracy, non-contact measurement, more accurate measurement results.
(2) Any damage to the material-the infrared rays of the online near-infrared moisture analyzer have no effect on the surface color and composition of the material.
(3) The principle is simple and the technology is advanced-the original light is used to illuminate the material, so that 100% of the infrared rays are irradiated to the material, which increases the total amount of effective energy, and the system is not easily affected by color, environment, dust and distance.
(4) Anti-vibration-Two fixed reflective environments are used, which will not affect the measurement results with the jitter of the working environment.
(5) The light is not affected-the original light is guaranteed and the light of the wavelength that makes the water molecules resonate is retained, so that after the substance is irradiated, the substance will resonate, so that the device is not affected by the light.
(6) Continuous online dynamic monitoring at all times, analog output 4-20mA signal output measurement/control signal, can be connected to PLC or DCS equipment, used with water adding and drying equipment

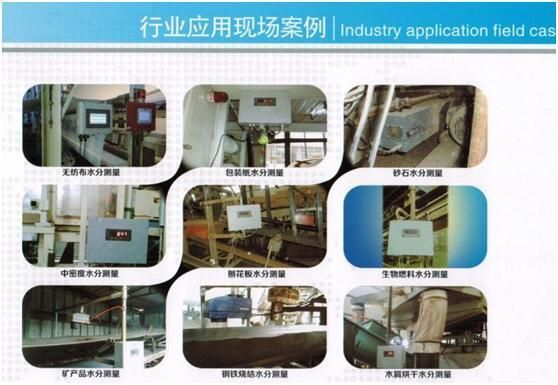

Application range:
Forest products industry: wood flour, shavings, wood chips, wood chips, sawdust, wood fiber, medium/high density fiberboard, plywood, particle board, etc.
Food industry: grain, flour, starch, milk powder, soybean meal, soybean meal, oats, coffee, feed, dehydrated vegetables, sugar, Chinese herbal medicine, western medicine, etc.
Tobacco industry: cigarette packs, stems, tobacco leaves, shredded tobacco, redrying, tobacco sticks, etc.
Papermaking and textile: paper, pressure-sensitive paper, corrugated paper, packaging paper, self-adhesive paper, coated paper, non-woven fabric, cloth, leather, film, etc.
Online moisture content of various substances such as iron and steel, metallurgy, quartz sand, cement, coal, mineral powder, sand, soil, clay, ceramic powder, iron red powder, chemical materials, etc.
(Before purchasing, please inform what substance to test, because different substances have different moisture absorption curves, we need to debug before shipping).

Technical parameter:
Measuring range: 0-80% (the measured object has no reflection/no water leakage)
Resolution: 0.01%
Measurement accuracy: 0.1-0.5%
Sampling area: diameter 60mm
Analog output: 4-20mA output
Communication mode: RS232, RS485,
Working distance: 100-400mm
Power supply: 220V 50HZ
