High Quality Handheld Type Digital Colorimeter

NANBEI INSTRUMENT LIMITED
  • Display Mode：Cielab Cielch Ciexyz Cieluv Hunterlab Srgb
  • Measurement Caliber：φ4mm,φ8mm,φ16mm Alternative
  • Measurement Range：L: 0 to 100
  • Size of Exterior Package：400*240*340mm
  • Sensor：Photodiode Array
  • Light Source：LED Blue Excitation

Base Info

  • Model NO.：WF-32
  • Transport Package：Export Standard Packaging
  • Specification：CE, ISO 9001, ISO 14001 confirmed
  • Trademark：Nanbei
  • Origin：Henan
  • HS Code：9027300000
  • Production Capacity：1000 Sets,Month

Description

ModelWF32Display ModeCIELAB,CIELCH,CIEXYZ,CIELUV,HunterLAB,sRGBColor Difference FormulaE*ab,ECMC,EISO,ECIE94,EFCMII,ELuv,Ehunter,EsRGBYellowness and WhitenessGanci whiteness, ISO brightness, YI yellownessIllumination ConditionCIE Recommendation:8/dLight SourceLED blue excitationSensorPhotodiode arrayMeasurement Caliberφ4mm/φ8mm/φ16mm AlternativeMeasurement ConditionObserver:CIE 10° Standard observer
Light source:A C D50 D65 F2(CWF) F7 F11(TL84) F12(U30)
Contain light way:SCI SCEMeasurement RangeL: 0 to 100Repeated AccuracyE<0.03 (take the deviation average after 30 times measuring the whiteboard)Table DifferenceE<0.2Measurement Interval0.5 Sec.Average Measuring FunctionAverage measuring frequency: 1-32 timesColor Simulation FunctionyesStorage CapacityType sample data : 100 with testing sample data: 20000
Whiteness/yellowness data: 200Language PatternsEnglish/Simplified Chinese/Traditional ChineseQuality Control SoftwareColor-Analysis System softwareBattery Charging Time8 hrsBatteryLi-ion battery, 5000 times MeasurementLifetime of Bulb5 years more than 1.6 million measurementsDisplay ScreenTFT true color 2.8inch@(16:9) Resolution ratio:400x240Interface of ExternalUSB2.0 (USB-B)- data communication with color analysis systemsoftware RS-232 (115200bps)- connected with micro printerWorking Temperature Range0ºC-40ºC(32ºF-104ºF)Storage Temperature Range-20ºC-50ºC(-4ºF-122ºF)Humidity RangeRelative humidity less than 85%,without condensationWeight700gSize199*68*90mmSize of Exterior Package400*240*340mmStandard AccessoriesStandard whiteboard/Standard black cavity/3000mAH Li-ion battery/AC adapter/USB Data line/CDColor analysis software/User manual/Warranty cardOptional AccessoriesFlour measuring device/Liquid measuring device/Micro printer


 ModelWF30Display ModeCIELAB,CIELCHColor Difference FormulaE*abIllumination ConditionCIE Recommendation:8/dLight SourceLED blue excitationSensorPhotodiode arrayMeasurement Caliberφ4mm/φ8mm/φ16mm AlternativeMeasurement ConditionObserver:CIE 10° Standard observer
Light source: D50 D65 F11(TL84)
Contain light way:SCI SCEMeasurement RangeL: 0 to 100Repeated AccuracyE<0.05 (take the deviation average after 30 times measuring the whiteboard)Table DifferenceE<0.2Measurement Interval0.5 Sec.Storage CapacityType sample data : 100 with testing sample data: 200Language PatternsEnglish/Simplified ChineseBattery Charging Time8 hrsBatteryLi-ion battery, 5000 times MeasurementLifetime of Bulb5 years more than 1.6 million measurementsDisplay ScreenTFT true color 2.8inch@(16:9) Resolution ratio:400x240Interface of ExternalUSB2.0 (USB-B)- data communication with color analysis systemsoftware RS-232 (115200bps)- connected with micro printerWorking Temperature Range0ºC-40ºC(32ºF-104ºF)Storage Temperature Range-20ºC-50ºC(-4ºF-122ºF)Humidity RangeRelative humidity less than 85%,without condensationWeight700gSize199*68*90mmSize of Exterior Package400*240*340mmStandard Accessories3000mAH Li-ion battery/AC adapter/USB Data line/CDColor analysis software/Usermanual/Warranty cardOptional AccessoriesFlour measuring device/Liquid measuring device/Micro printer


 ModelWF28Display ModeCIELAB,CIELCHColor Difference FormulaE*abIllumination ConditionCIE Recommendation:8/dLight SourceLED blue excitationSensorPhotodiode arrayMeasurement Caliberφ8mmMeasurement ConditionObserver:CIE 10° Standard observer
Light source: D65
Contain light way:SCI SCEMeasurement RangeL: 0 to 100Repeated AccuracyE<0.07(take the deviation average after 30 times measuring the whiteboard)Table DifferenceE<0.2Measurement Interval0.5 Sec.Storage CapacityType sample data : 100 with testing sample data: 200Language PatternsSimplified Chinese/EnglishBattery Charging Time8 hrsBatteryLi-ion battery, 5000 times MeasurementLifetime of Bulb5 years more than 1.6 million measurementsDisplay ScreenTFT true color 2.8inch@(16:9) Resolution ratio:400x240Interface of ExternalRS-232 (115200bps)- connected with micro printerWorking Temperature Range0ºC-40ºC(32ºF-104ºF)Storage Temperature Range-20ºC-50ºC(-4ºF-122ºF)Humidity RangeRelative humidity less than 85%,without condensationWeight700gSize199*68*90mmSize of Exterior Package400*240*340mmStandard Accessories3000mAH Li-ion battery/AC adapter/User manual/Warranty cardOptional AccessoriesFlour measuring device/Liquid measuring device/Micro printer
FAQ

1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4. When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
5. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
6. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
7. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8. What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except  wear parts. You can also buy parts from us after 12months.


Pre-sale service

· 24hours online to ensure quick response to customers' inquiry or online message;

· Guide customers to choose the best suitable machine model;

· Offer detailed specification and competitive prices;

Contract execution

· Machine production will be arranged strictly according to the contract;

· Machine photos will be sent to you for inspection during production;

· Send customs clearance documents by DHL;

· Update latest news after delivery and prepare customs clearance;

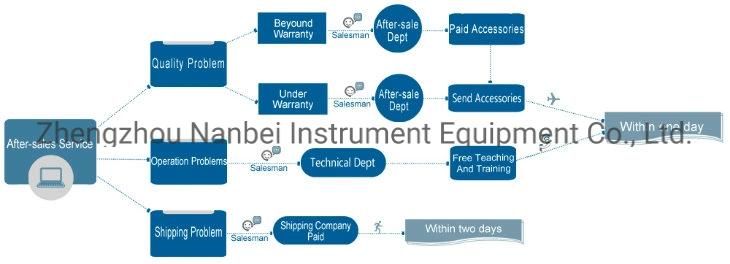

After-sale service

· 12 months warranty except for wear parts;

· Broken spare parts (except for wear parts) will be sent for free due to quality problems;

· In time response to customers technical problems;

· New products update for customers' reference


Our Company:
Since 2008, We have become a professional laboratory instrument manufacturer.
Since the establishment of the International Department in 2010, the products are exported to Europe, America and Asia and Africa!
Whether it is technology, factory area, multi-language sales. We are all professional!
High Quality Handheld Type Digital Colorimeter

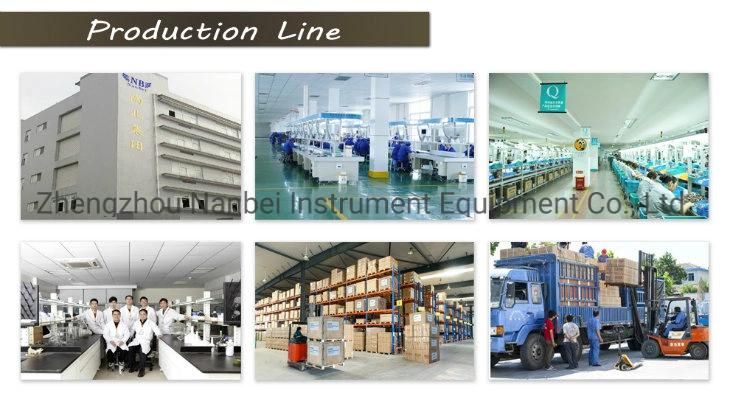

Factory Show:
