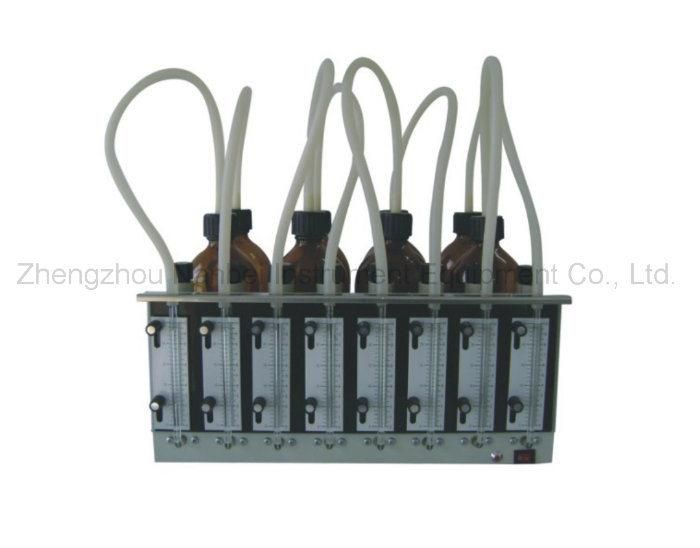

Pressure Difference Method BOD Anlaysis Instrument with Ce

NANBEI INSTRUMENT LIMITED
  • Display：No Display
  • Appliance：Biochemistry
  • Portable：Non Portable
  • Certification：ISO9001
  • Type：BOD Analyzer
  • Name：Pressure Difference Method BOD Anlaysis Instrument

Base Info

  • Model NO.：CY-2
  • Measure Range：0~1000mg,L
  • Work Principle：Mercury Pressure Difference
  • Sample Process Quantity：8 Samples a Batch
  • Weight of Main Unit：<6kg
  • Main Unit Dimensions：400mmx 270mmx350mm
  • Neccessory：Biochemical Incubator
  • Warranty：1year
  • Transport Package：Carton Box Package
  • Specification：30kg
  • Trademark：NANBEI
  • Origin：China(Mainland)
  • HS Code：9027809900
  • Production Capacity：500sets a Month

Description

Measuring range0~1000 mg/LPrecisionMeet GB7488 standardDisplayDirect readingSamples processingMax 8 samples at a batchCulture temperature20ºC±1ºCDimension400×270×350(mm)Host weight6 kgPower consumption<15WPressure Difference Method BOD Anlaysis Instrument with Ce

P.S : BOD analyzer should work with Biochecmial incubator,place the sample to do 1-30days culture under 20ºC.

Biochemical incubator:
Feature
1.Transparent observation window;
2.Mirror stainless steel chamber,easy to clean. The shelves distance adjustable.
3.With timing function digital microcomputer temperature controller.
4.Indenpendent temperature limit alarming system,auto cut off when temperature beyond level,make sure safe.(optional)

Technical parameter:Temperature controlling range0 ºC ~ 60 ºCResolution0.1 ºCPower input520WChamber size500X380X800mmDimension 600X640X1385mmTray3layersTiming range1 ~ 9999 minutes
