• Model NO.：DP802I
• Production Capacity：3000,Month

Basic Info.

Model NO. DP802I Production Capacity 3000/Month

Product Description

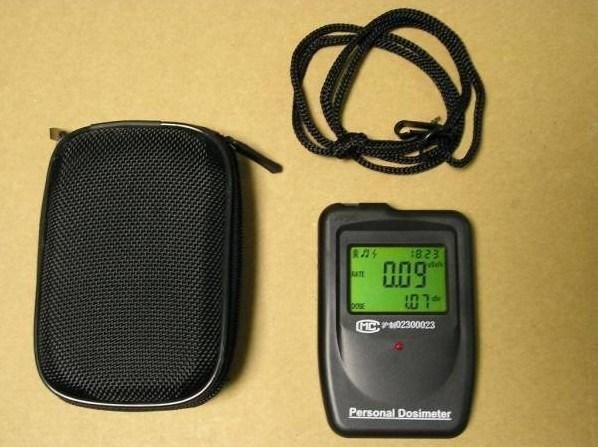

Radioactive monitor    Personal alarm dosimeter
(Product has passed the metrological verification)
Abstract
DP-802i X- gamma radiation individual dose equivalent (rate) monitor - a humanized design, enhanced personal dose monitoring is mainly used for radiation protection monitoring of X, and hard beta gamma ray, suitable for nuclear power plant, accelerator, isotope application, industrial X, γ nondestructive testing, medical radiation (iodine, technetium, SR), cobalt source treatment, gamma irradiation, radiation laboratory, renewable resources, the field of nuclear facilities in the surrounding environment monitoring, timely alarm indication, ensure the safety of staff.

Features and functions

Humanized design, large liquid crystal display,
simple operation, convenient
High sensitivity, can measure the environment
background
Cumulative dose and dose rate at the same
time measurement and display, but also can
measure CPM
Automatic switching unit of measurement,
the measurement data of intelligent storage
Automatically save the cumulative dose and cumulative start date
The cumulative dose, dose rate and places of detention time alarm alarm function
Dose rate alarm can be preset and cumulative dose alarm threshold
Sound, vibration, light, silent alarm way any combination of selected
Design of low power consumption, the power supply voltage of the battery status indicator
With real-time clock function, shut off the clock running
After the failure of long time preservation instrument data, can be stored date alarm and alarm value
Built-in fault detection, dose rate overload alarm and protection function, to ensure the normal work of the instrument
Main technical indicators
  Measuring range: dose rate: 0.01 μ Sv/h ~ 150mSv/h
The cumulative dose: 0 μ Sv ~ 999.99mSv
  The energy range: 40Kev ~ 1.5Mev
  Energy response error: ± 30% (relative to 137Cs)
  The relative basic error: ± 10%
  The measurement of time: the measurement time automatically selected according to X-ray intensity, faster response speed
  Alarm threshold:0.5,1.0,2.5,10,30,50,100...5000 µSv/h
  Protection alarm response time: 1-2 seconds (the most fast)
  Display units: dose rate (Sv/h or mSv/h or Sv/h) and cumulative dose (SV)
  Power supply: use a 7 battery, low power consumption, this measure can be used within 20 days (normal working hours)
  Shape size:90*60*17 mm
  Weight: 66g
