• Model NO.：SHATOX SX-300
• Origin：Chongqing, China
• HS Code：9027809900
• Production Capacity：500 Sets Per,Mouth

Basic Info.

Model NO. SHATOX SX-300 Origin Chongqing, China HS Code 9027809900 Production Capacity 500 Sets Per/Mouth

Product Description

Product description

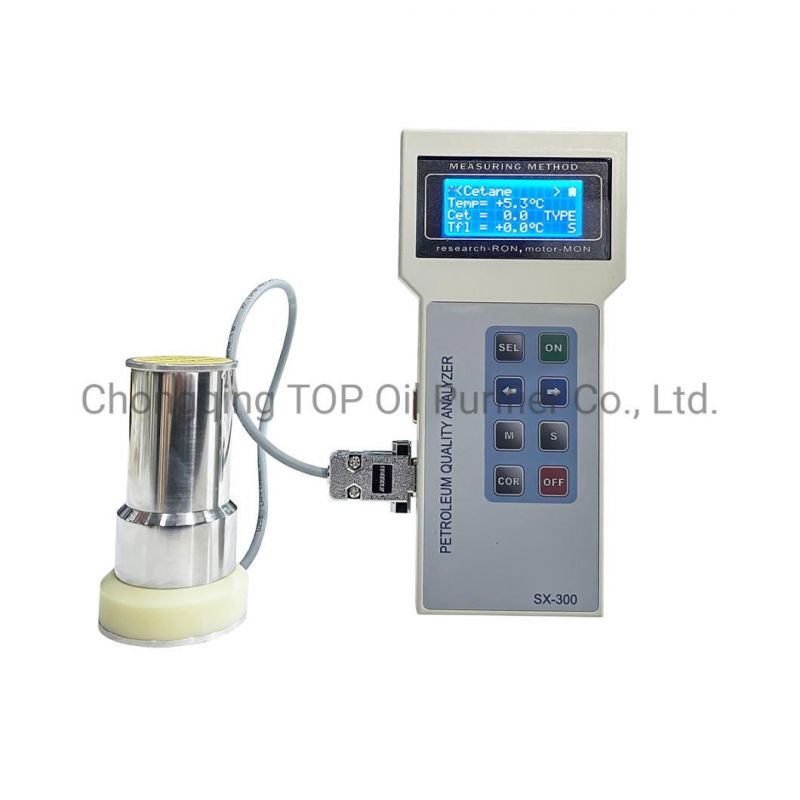

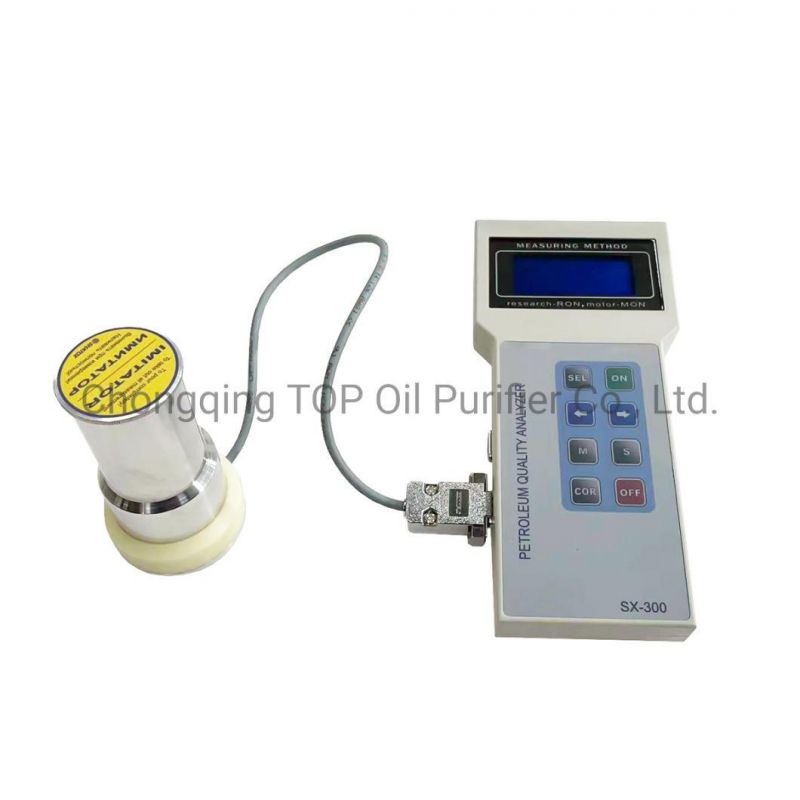

Portable octane analyzers are often used for on-site analysis of octane number of power gasoline, corresponding to the motor method and research method (RON and MON), and also suitable for cetane number analysis of diesel. In addition, the temperature of the analyzed liquid and the freezing point of diesel can also be measured, and the measurement results are displayed on the LCD liquid crystal display.
This octane analyzer is widely used all over the world. Its measurement method conforms to international standards: octane measurement conforms to: ASTM D 2699-86, ASTM D 2700-86. Diesel cetane measurement conforms to: ASTM D 4737- 03, ASTM D 613, EN ISO 5165.
 Measuring principleThe principle of the TP-150 octane cetane number tester lies in the analysis of the insulation permeability of the octane number of gasoline and the cetane number of diesel oil and the charge characteristics of electromagnetic induction. By measuring the dielectric properties of the sample and comparing with the known parameters in the memory, the result is determined. The instrument is very sensitive and can measure small changes in dielectric parameters. It can detect octane number, cetane number and other petroleum product parameters.

Functions
Test octane number of automotive gasoline, as per ASTM D 2699-86, ASTM D 2700-86.
Test cetane number of automotive gasoline as per ASTM D 4737-03, ASTM D 613, EN ISO 5165.
Determination of diesel freezing point.
Pour point depressant content for diesel fuel.
Kerosene content of diesel fuel.
Gasoline failure period (oxidation resistance), ASTM D 525.

Technical Parameters

Item	Unit	Value
Gasoline octane number range	ON	40-125
Gasoline octane number measurement accuracy	ON	± 0.5
Gasoline stability measurement range	min.	50-2400
Maximum acceptable basic error of gasoline oxidation degradation time measurement	%	5
Cetane number measurement range	CN	20-100
Measurement accuracy of diesel cetane number	CN	±1.0
Maximum acceptable error of diesel fuel freezing point measurement	C o	± 2
Measurement of kerosene content in diesel fuel	%	0-95
Measurement mode of pour point depressant content in diesel	%	3
Maximum acceptable error in measurement of kerosene content in diesel fuel	%	0.2-1
Maximum acceptable error of pour point depressant content measurement	%	0.01
Measure time	s	1-5
Minimum power supply for instrument operation	V	5.4
Instrument service life	Year	6
Total size:
Electronic unit	mm	100х210х40
Sensor	mm	60х100
Instrument weight(including 1 sensor)	g	850

Function / Feature	SX-100K	SX-150	SX-300
Octane/Cetane Number Measurement	x	x	x
Diesel mixed type measurement (Winter/Summer/Arctic)	x	x	x
Condensing point temperature (diesel)	x	x	x
With built-in memory	x	x	x
PC / RS-232 interface	x
PC / USB interface		x	x
Oil purity measurement			x
Transformer oil fission voltage measurement			x
Transformer oil dielectric dissipation measurement			x
Fuel oil conductivity measurement			x
Anti-knock parameter measurement			x
Diesel pour point depressant content		x	x
Kerosene content in diesel		x	x
Gasoline oxidation stability		x	x
Measurement of failure tangent angle of circuit breaker oil, engine oil			x
Clear level measurement of engine oil and circuit breaker oil			x
Engine oil brand			x
Engine oil base			x
Electric permeability of oil			x
Oil volume resistivity			x
Measurement of mechanical impurities in oil			x
Percentage of water in oil			x
