• Model NO.：BH-485-DD
• Transport Package：Carton
• Specification：SGS, CE, ISO9001
• Trademark：BOQU
• Origin：Shanghai, China
• HS Code：9027809990
• Production Capacity：50000PCS,Month

Basic Info.

Model NO. BH-485-DD Transport Package Carton Specification SGS, CE, ISO9001 Trademark BOQU Origin Shanghai, China HS Code 9027809990 Production Capacity 50000PCS/Month

Product Description

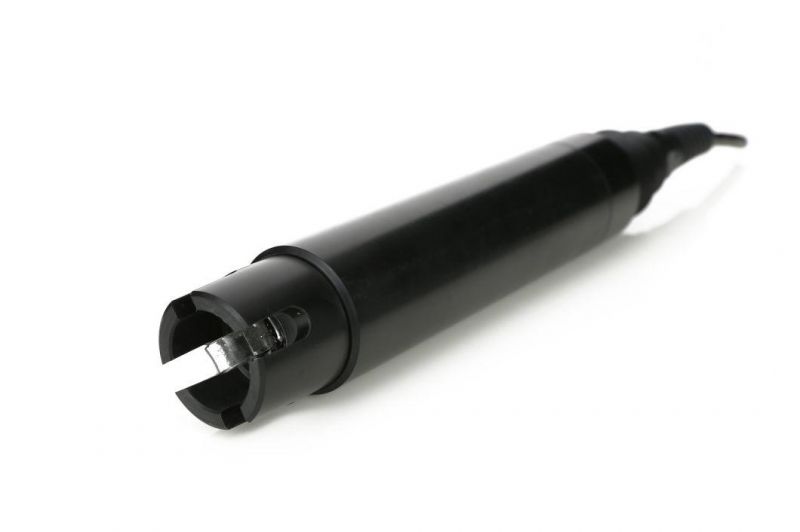

BH-485-DD Digital Conductivity Sensor

• Characters

·The characteristics of industrial sewage electrode, can work stably for a long time
·Built in temperature sensor, real-time temperature compensation
·RS485 signal output, strong anti-interference ability, the output range of up to 500m
·Using the standard Modbus RTU (485) communication protocol
·The operation is simple, the electrode parameters can be achieved by remote settings, remote calibration
·24V DC power supply.


• Technical specifications

Model	BH-485-DD
Parameter measurement	conductivity,Temperature
Measure range	conductivity:0-2000us/cm Temperature:(0~50.0)ºC
Accuracy	conductivity:±0.1us/cm Temperature:±0.5ºC
Resolution	conductivity:0.1 us/cm Temperature:0.1ºC
Power supply	24V DC
Power dissipation	1W
communication mode	RS485(Modbus RTU)
Cable length	Can be ODM depend on user's requirements
Installation	Sinking type, pipeline, circulation type etc.
Overall size	230mm×Diameter30mm
Housing material	ABS
