• Model NO.：EMT220
• HS Code：9031100090
• Production Capacity：50 Piece,Pieces , Week

Accuracy:
Vibration measurement: ± 5% Measurement value; ± 2 Digits
Temperature measurement: ± 1% Measurement value; ± 1 Digit
Vibration Frequency Range:
10 ~ 1 kHz (Normal type)
5 ~ 1 kHz (Low frequency type)
1 ~ 15 kHz (only at "HI" position for acceleration)
Display: Digits liquid crystal display
Sample period: 1 second
Vibration measurement value readout:
Displacement: Peak to peak value (r. M. S. × 2√ 2)
Velocity: Root mean square (r. M. S. )
Acceleration: Peak value (r. M. S. X√ 2)
Readout-keeping function:
Readout of vibration / temperature value can be remembered after
Releasing the Measure Key (Vibration / Temperature Switch)
Output Signal:
2V AC (peak value) (load resistance above 10 kΩ At full measuring scale)
Power supply:
6F22 9V laminated cell
Power on / off:
Battery life about 30 hours for continuous use
Power up when pressing Measure Key (Vibration / Temperature Switch)
Power automatically shut off after releasing the Measure Key for one minute
Operating condition:
Temperature: 0 ~ 50 centigrate
Humidity: ≤ 90% RH
Volume:
185 mm× 68 mm× 30 mm
Weight: 200g


Company Profile

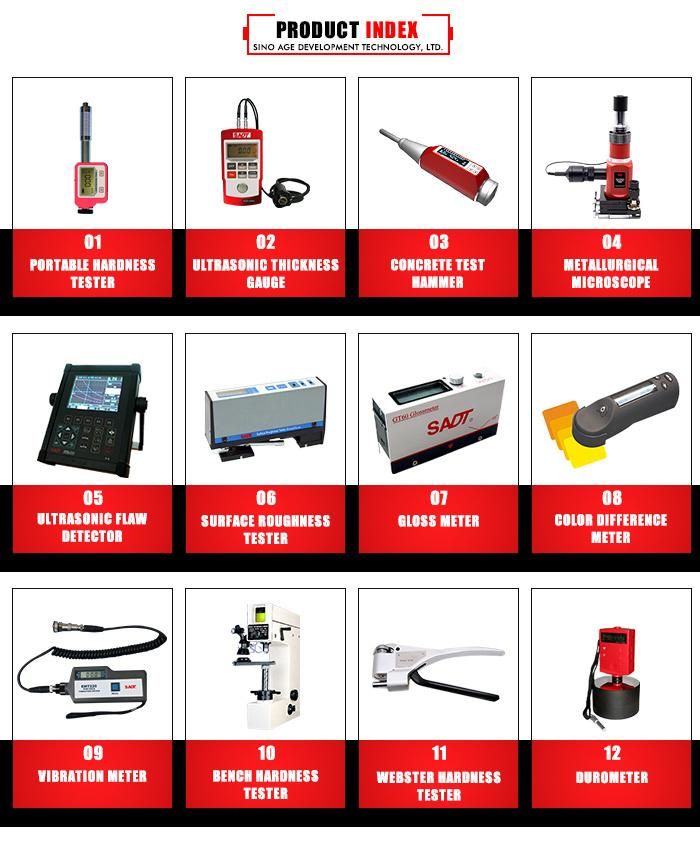

Sino Age Development Technology, Ltd.(SADT), established in 1993, is a leading manufacturer/supplier of ing and testing instrument, specialized in NDT and quality control fields. We have our own HARTIP series portable hardness testers since 1995. Now our main products cover portable and bench type hardness tester, ultrasonic thickness gauge, roughness tester, handheld metallurgical microscope, portable vibration meter, optical tachometer, ultrasonic flaw detector and so on. Our main overseas markets are: Italy, Germany, Netherlands, Turkey, France, Cezch Republic, Korea, Singapore, India, Iran, South Africa, USA, Canada, Mexico and Columbia and etc. All Products supplied by SADT have excellent quality and competitive price with our best service.
