• Model NO.：PTT-B
• Trademark：TOP
• Origin：China
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. PTT-B Trademark TOP Origin China Production Capacity 200 Sets/Month

Product Description

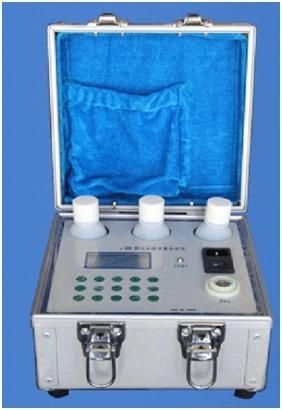

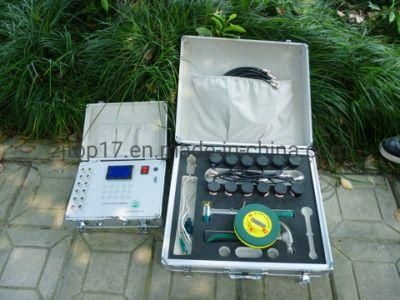

Portable and Fast Oil Quality Tester/Oil quality analyzing deviceApplication & Feature
The oil quality influence industrial equipment a lot. This PTT-B fast oil quality tester can on site judge the oil pollution degree to see if it needs changing oil or not, like whether the newly purchased or in-use lubricating oil is qualified or not. It has been widely applied in fields of aerospace, oil field, ports, transportation, mines, electricity, metallurgy, chemicals, engineering machinery etc. It adopts single-chip microcomputer technology and is composed of sensing circuit, computer circuit, display circuit, interface circuit and built-in AC-DC power supply system. It has many special functions and advantages such as the following.
1. Can test any one kind of lubricating oil which has oil number;(can customize to input various oil parameters and number). The test precision and operation reliability is further improved. It can not only test various lubricating oil such as engine oil and gear oil, but also can test high sensitivity required hydraulic oil, transformer oil etc.
2. Power supply are DC-AC dual function. It has in-built high energy battery and can still work no matter there is mains supply or not, convenient for outdoor onsite use. When the battery is going to run out, there is red indicator light of undervoltage to indicate.
3. In the instrument database there is a certain number of oil scrap reference value. You just need to operate as per the test window indications. After testing, except displaying test result data, it can automatically divide lubricating oil quality into three different pollution type of scrap, workable or good and display out.
4. Convenient operation with quick testing speed. No need of zeroing, with only one sensor, user only needs to successively add standard liquid and testing liquid into a sensor as per indications, then can get test result.
5. Good test repeatability. Multiple tests are in agreement.
6. Has function of monitoring and alerting wrong operation
7. Can test water content in oil.
8. Integrated structure, nice appearance, durable and portable operation.

Functions & Specification
Main test items

1. Oil comprehensive pollution degree.
2. Water content in oil.
3. Metal debris bigger than 65ìm.
4. There is light oil or not.

Main technical parameters

1. Repeatability test: deviation≤3%
2. Whole machine power consumption≤300mW battery can continuously work for 6 hours.
3. Power supply: AC Mains supply~220V/50Hz; DC 9V high energy battery.

Size & Weight:

1. Size (L×W×H): 22.5 mm×22.5 mm×14.0mm
2. Weight: ≤5kg

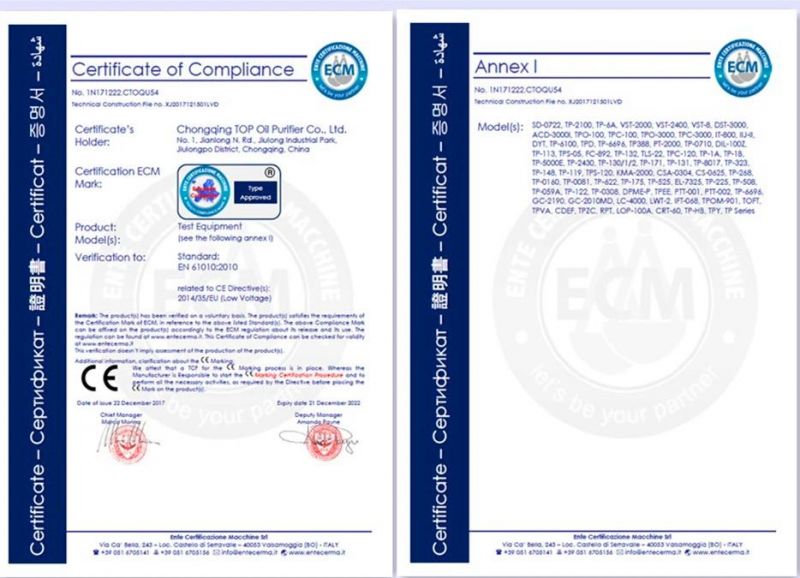

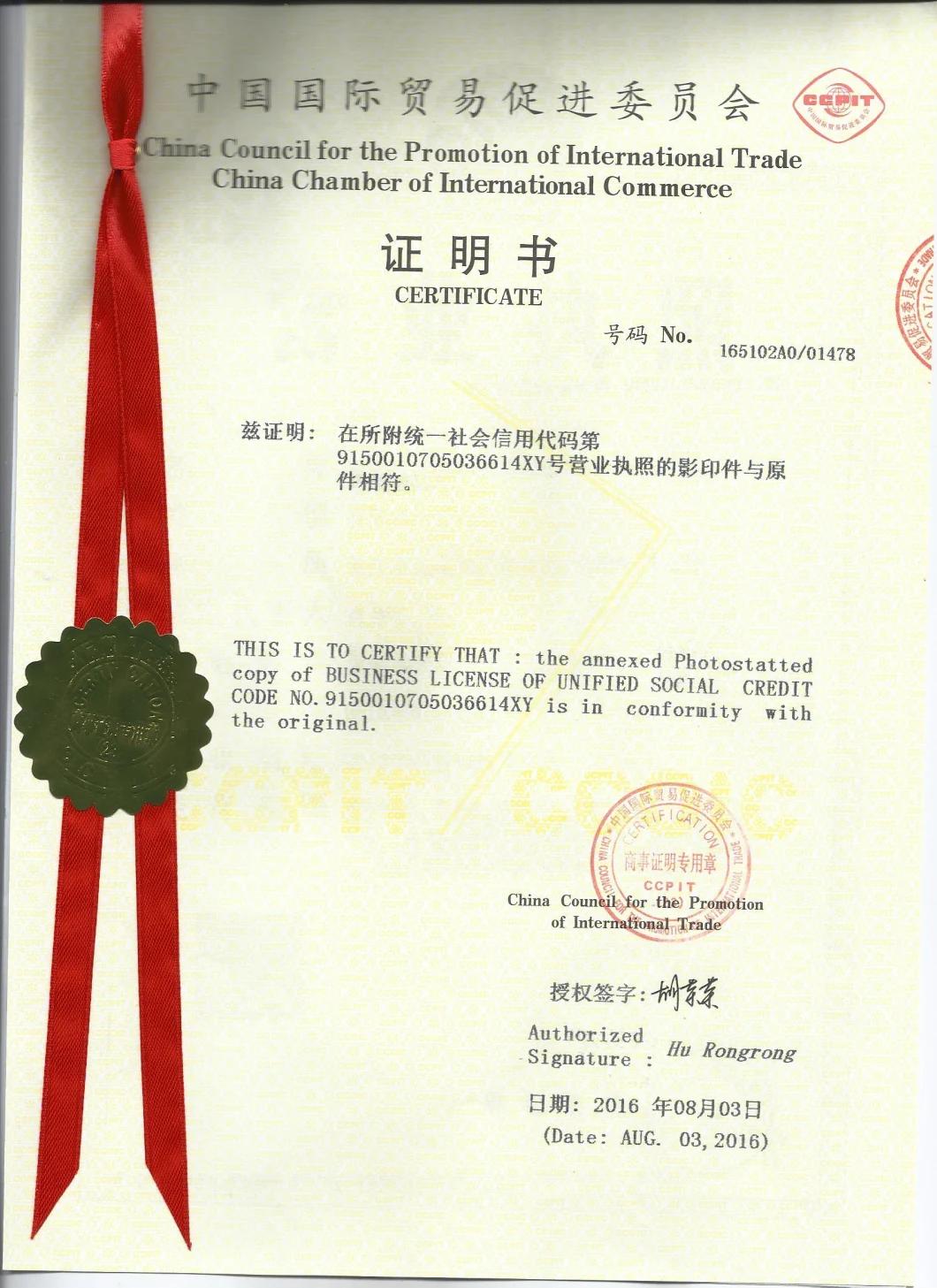

Related Certificates:




Our Company:

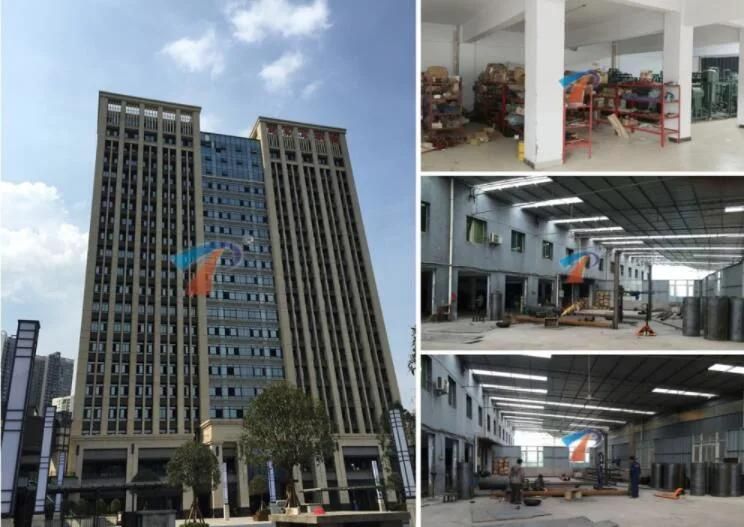

Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. We consists of departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and lone service life.

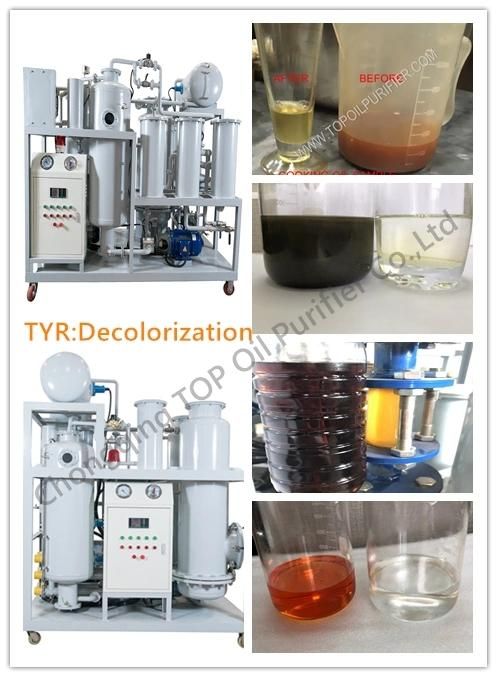

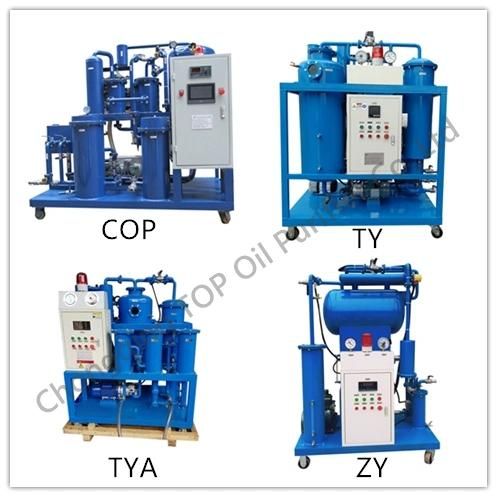

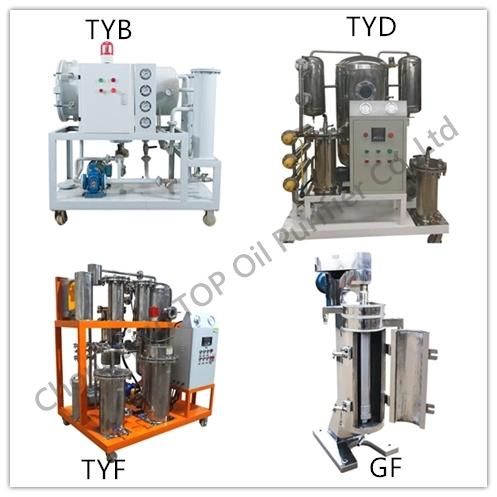

TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway, playing a great role in reducing energy consumption for clients as well as environmental pollution. We provides you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, waste oil recycling equipment etc.

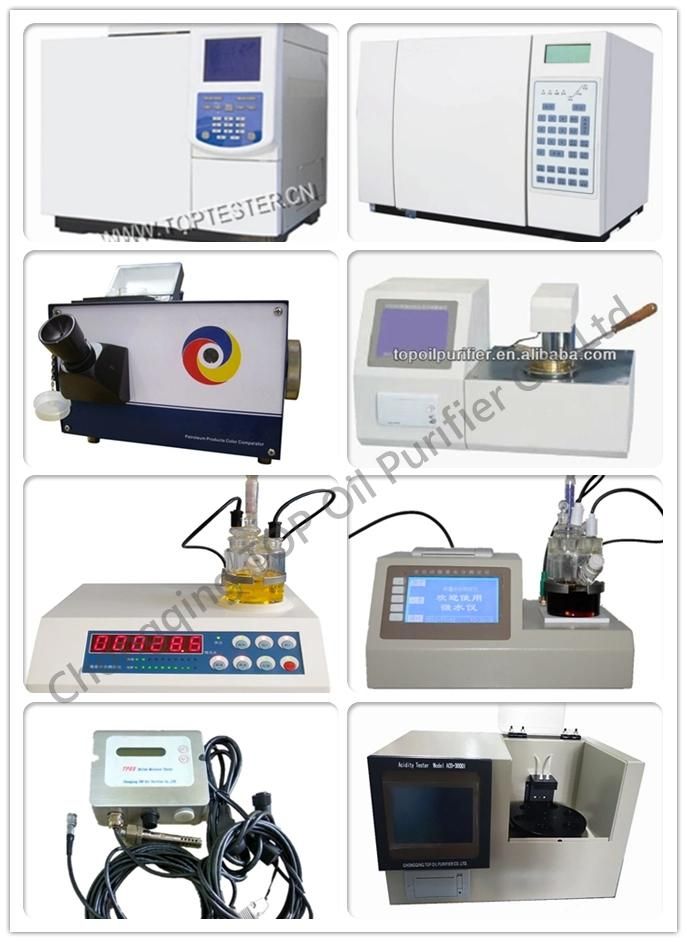

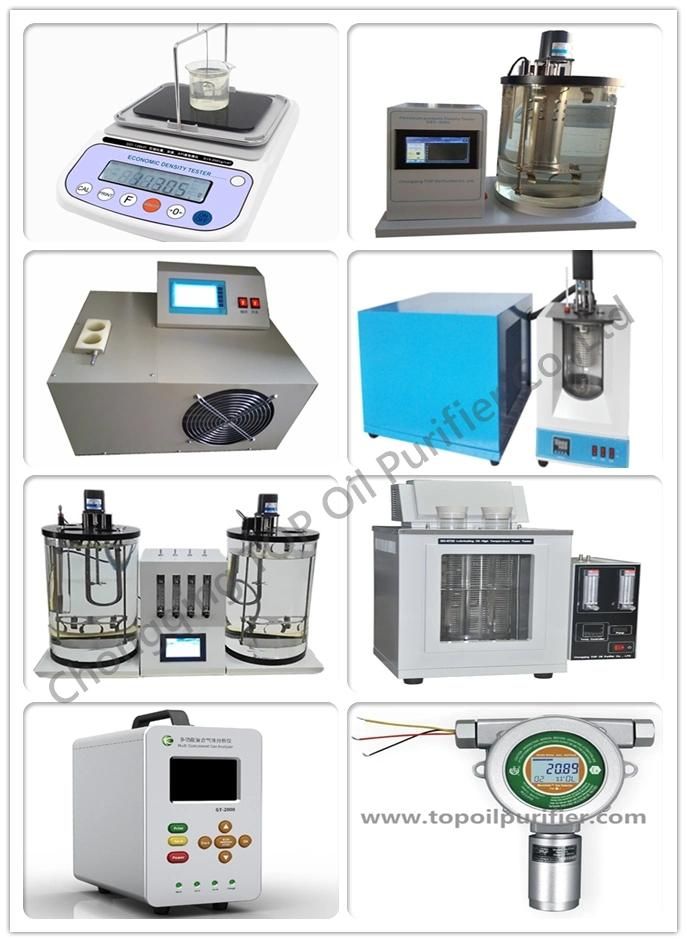

TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.



Honest Team - TOP always honestly treat you and keep faith to make you satisfied with every cooperation with us.
Sincere Communication - TOP sincerely communicate with you to guarantee the provided products to be your ideal ones.
Reliable Quality -TOP own high quality and high performance for every TOP product is under strict quality control and testing.
Service Commitment - TOP bring you prompt, considerate and professional aftersale service and technical support, and explore technology future together.
