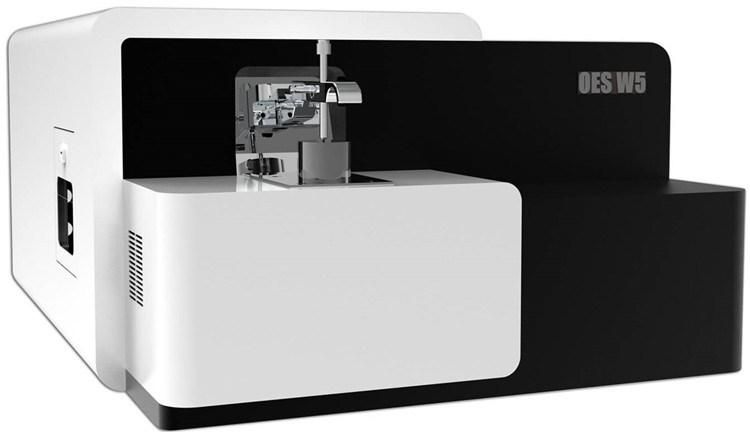

• Model NO.：W5
• Excitation Frequency：100-1000Hz
• Vacuum System：Automatic Control and Monitoring Vacuum Software
• Transport Package：Wooden Package
• Trademark：wuxi jinyibo
• Origin：Jiangsu Wuxi
• HS Code：9027300000
• Production Capacity：30 Sets,Month

Optical systemOptical structureThe Paschen Runge construction full vacuum type optics systemRoom temperature35ºC±0.5ºCWavelength range170-580nmFocal length 400mm Grating line 3600m1/mm First order spectral line dispersion rare 1.2nm/mm Detector  Multi block high performance linear CMOS array  Average resolution ratio 10pm/pixel Excitation tableGas Rushing argon(99.999%)Argon flow rate When excited: 3-5L/min
Standby time: no need for standby trafficElectrode Tungsten electrode technologyPurge Automatic purge functionMake upThermal deformation self-compensation designAnalyze the gapSample stage:3.4 mmExcitation lightType HEPSFrequency 100-1000HZDischarge current1-400ASpecial technologyOptimization of discharge parameters designPre -combustionHigh-energy pre-combustion technologyProcessorHigh end ARM, high-speed data synchronization acquisition and processingData collection systemInterface Ethernet data transmission based on DM9000AEnter 220VAC 50/60HzThe requirements of power and environmentPower Maximum:700W standby:40WWorking temperature10-35ºC(temperature ≥5°C)Working humidity20-85%
Packing & Shipping
