• Model NO.：TP-100m
• Heating Mode：Optionali
• Off Mode：Manual
• Warranty：1 Years
• Condition：New
• Power Supply：AC220V, 50Hz
• Power(W)：<40W
• Dimension(L*W*H)：350*250*160
• Weight：About 14kg
• Transport Package：Standard Export Wooden Case
• Specification：ISO,CE
• Trademark：TOP
• Origin：Chongqing, China
• HS Code：9027809900
• Production Capacity：100 Sets Per,Mouth

Basic Info.

Model NO. TP-100m Heating Mode Optionali Off Mode Manual Warranty 1 Years Condition New Power Supply AC220V, 50Hz Power(W) <40W Dimension(L*W*H) 350*250*160 Weight About 14kg Transport Package Standard Export Wooden Case Specification ISO/CE Trademark TOP Origin Chongqing, China HS Code 9027809900 Production Capacity 100 Sets Per/Mouth

Product Description

Application:
Suitable for factories, research institutes, universities, laboratories, metrology institutes, enterprises and institutions.
Widely used in various industries such as plastics, powders, feed, powder, tobacco, paper, battery powder, slurry, tea, plastic, film, chemical raw materials, pharmaceuticals, textile raw materials, etc., free water contained in the sample carry out testing.

Features:l
1. Substitute the national standard oven method, the operation is simple, the test time is greatly shortened, and the working efficiency is up to 10 times.
2. High precision (imported electromagnetic force load cell) with high precision, long life and stability
3. Advanced humidity control system to avoid interference caused by free moisture
4. Real-time graph display, visual observation of water changes
5. Humanized program module, once set, direct measurement
6. Alloy metal base makes the moisture meter stable, reliable and reduces external factors
7. LCD display, rich data display (graph, time, real-time temperature, moisture, solid content, program module)
8. Save multiple sets of data, no need to repeat settings, test at any time, multiple operation options, meet different requirements sample measurement
9. Standard RS232 communication interface / optional baud rate - easy to connect printers, PCs and other peripherals to meet different national requirements

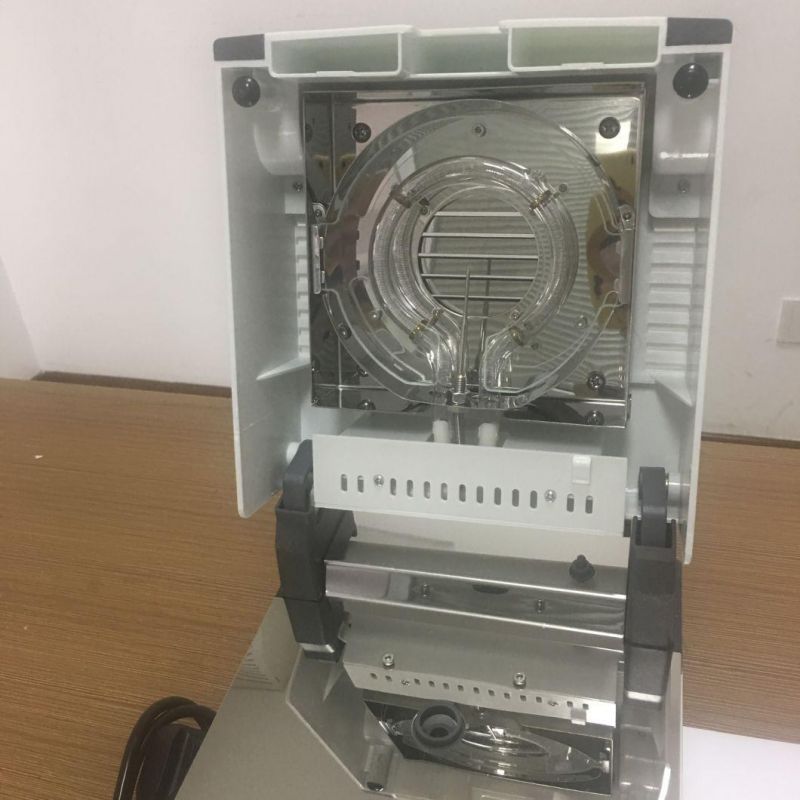

10. The annular quartz tungsten halogen infrared ring lamp heating method can be directly heated from the inside of the material. The R&D personnel design a unique and unique temperature-controlled heating system to make it evenly heated, form a balanced cycle, and monitor the water loss in real time to make the result more accurate.



Technical data

Model	TP-100M
Weighing range (g)	0.0001-120g
Water readability	0.001%
Measurement result display mode	moisture value, solid content, moisture content curve
Humidity compensation	None
Measuring range	0.001-100%( moisture range)
Operating temperature requirements	room temperature
Weighing pan size(mm)	Φ90
Warm-up at startup	30minutes
Heating temperature range (°C)	RT~~200
Drying procedure	standard heating method
Weightless setting	2 options
Humidity display mode	Relative humidity
Stop mode	automatic stop, timed stop
Set time:	0~99 minutes, 1 minute apart
Storage	None
Print	Thermal print (external), output print results
Dimension(W*D*H)(mm)	310*205*200
Net weight(kg)	4kg
