High Quality Steam Sterilizer with Intelligent Control
Kunshan Agritop Technology Co., Ltd.- After-sales Service：Lifetime Maintenance
- Warranty：1 Year
- Electric Supply：220V,50Hz
- Total Power：3kw
- Volume：50L,70L
- Transport Package：Carton
Base Info
- Model NO.：YM series GN type
- Trademark：OEM
- Origin：Zhejiang
- HS Code：9031809090
- Production Capacity：500PCS ,Month
Description
Performance characteristics
•Made of stainless steel, durable;
•Lightly open the clamshell structure, the upper cover automatically pops up, easy and effortless;
•The inclined surface design of the control panel is convenient for observation and operation;
• The microcomputer program controls the discharge of cold air, heating, keeping time and pressure relief methods in the sterilization process;
• LED digital tube and indicator light, dynamically display the operating status of the equipment;
• The computer board has PID function, and the heating parameters are corrected by self-tuning, which can prevent the temperature from being flushed, and the temperature control accuracy is within ±0.5ºC; • Low water level control function, when the water level is insufficient, the heating will be automatically stopped and there will be instructions;
•With "internal circulation" function, no steam is released into the room;
• It has a drying function, which can improve the moisture level of the surface of the cloth bag;
• If the temperature exceeds the set value by 2°C, the heating will be automatically stopped, and the sound and light alarm will be activated at the same time;
• When the overpressure reaches 0.17MPa, the safety valve automatically releases steam to protect the equipment;
• There is a safety measure to prevent the lid from being opened under pressure in the sterilizer cavity; • The lid is not closed in place and does not heat;
• And there is LED light indication;
• The safe state of the pressure inside the device is indicated by LED lights;
• Low water level control function, when the water level is insufficient, the heating will be automatically stopped and there will be instructions;
• Reliable sterilization effect;
• The drain valve can drain the concentrated water in the barrel to prevent scaling;
•Swivel casters with brakes can be moved easily and positioned conveniently;

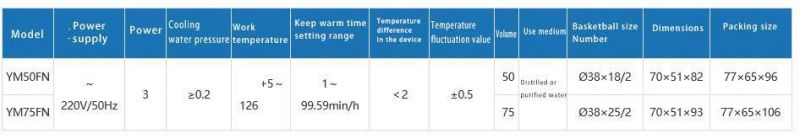

•Immersed electric heating tube with high thermal efficiency. Main Technical Data
