• Model NO.：ND200-2
• Customized：Customized
• Product Name：Nitrogen Evaporator , Sample Concentrator
• Nitrogen Consumption：15L,Min, Two Blocks
• Lead Time：Within 7 Days
• Transport Package：Strong Packing
• Specification：CE ISO TUV
• Trademark：PIOWAY
• Origin：China
• Production Capacity：1000 Units , Month

Basic Info.

Model NO. ND200-2 Customized Customized Product Name Nitrogen Evaporator , Sample Concentrator Nitrogen Consumption 15L/Min, Two Blocks Lead Time Within 7 Days Transport Package Strong Packing Specification CE ISO TUV Trademark PIOWAY Origin China Production Capacity 1000 Units / Month

Product Description

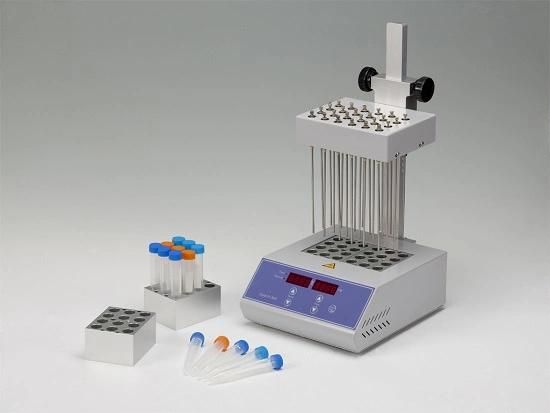

                                         Lab High Precision Nitrogen Gas ,  Sample Concentrator (ND200-2)



Descriptions:
ND200-2 sample concentrator is with microprocessor controlled and PID fuzzy controlled technique. Instead of traditional water bath device, the heat-conducting medium is high purity aluminum. The test tubes are held in a block, blowing a large number of samples at one time. It can be used in residue analysis, commodity inspection, food, environment, pharmacy and biological product and other industries.

Features:
- High precision and wide range of temp. control.
- Blowing a large number of samples at one time.
- Blowing each sample independently.
- Amount of airflow can be adjusted.
- Easy operation; safe and reliable to use.
- 12-month warranty.

Specifications:

Temp. range	RT. +5 ºC ~160 ºC
Time range	0min~ 99h59min
Max pressure	0.1Mpa
Nitrogen consumption	15L/min
Temp. accuracy	≤±0.5 ºC
Display accuracy	0.1 ºC
Needle length	150mm
Standard blocks	2
Temp. uniformity	≤±0.5 ºC (@100 ºC )
Temp. Uniformity	≤±1 ºC (@150 ºC )
Heating time	≤30min(from 40 ºC to 150 ºC )
Max. orbit	200mm

Optional Modules

Model	Tube Diameter	Number of Test Tube
MD50	10mm	12
MD51	12mm	12
MD52	13mm	12
MD53	15mm	12
MD54	16mm	12
MD55	19mm	12
MD56	20mm	12

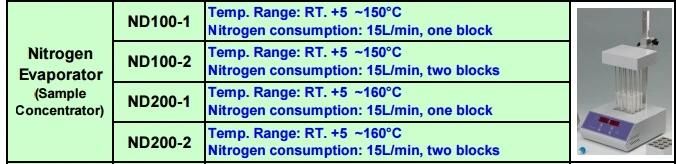

Different Models
