• Model NO.：Ka-30
• Gas：O2
• Type：Laser Gas Analyzer
• HS Code：902710009
• Production Capacity：20PCS,Month

Basic Info.

Model NO. Ka-30 Gas O2 Type Laser Gas Analyzer HS Code 902710009 Production Capacity 20PCS/Month

Product Description

KA-30 Laser On-line Gas Analyzer

KA-30 laser in-line gas analyzer can be widely used in the offsetting project (CO2, O2, NOx, NH3, etc.), electrolytic aluminum factory (HF, HCl, NH3, etc.), coal-fired power plant (escape ammonia), steel metallurgy (converter gas , CO and O2, etc., blast furnace gas, coal system, petrochemical (HF, H2S, micro H2O, etc.), waste incineration (HF, HCl, CO, etc.), landfill (H2S, NH3, etc.), tobacco processing ( CO, CO2, etc.), environmental air (H2S, NH3, CO, CO2, etc.) and industrial processes (H20, CO, CO2, O2, etc.).

>>>Key Features

1) With gas cross-interference, specific component gas only exists in a specific wavelength, with strong gas selectivity

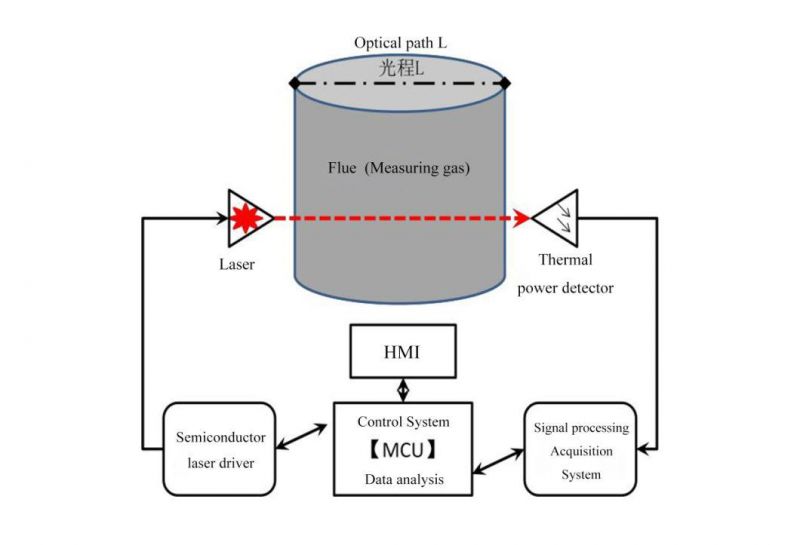

2) The unique optical path design can effectively eliminate the influence of on-site vibration on the optical path;

3) The quantity is flexible, which can be adapted to in situ measurement at high temperatures up to 1000 ° C, or bypass sampling system to gas analysis supervision.
4)  Advanced compensation algorithm (light intensity, temperature, pressure, etc.) to ensure accurate analysis of the instrument under high dust and high particulate conditions

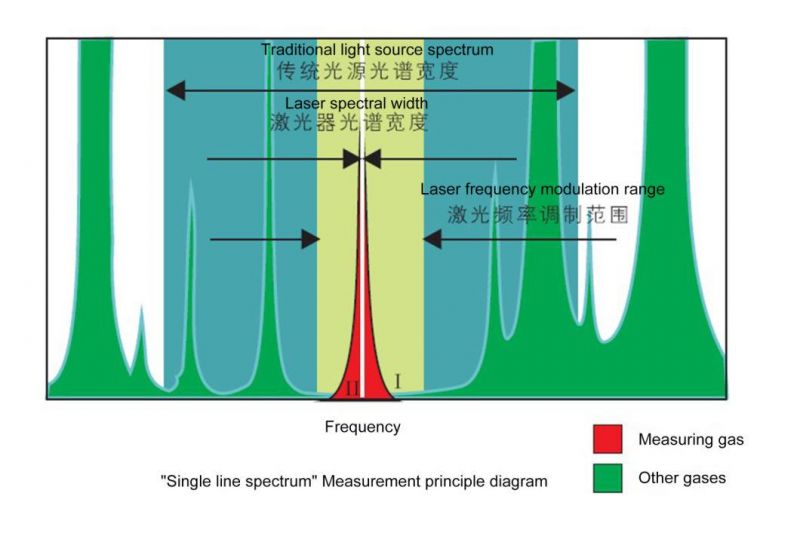

5) A variety of analytical methods (DAS, 1F, 2F, etc.), combined with professional spectrum analysis algorithm, to ensure accuracy and anti-interference ability of measurement results.
6) Temperature, pressure compensation, external temperature, built-in temperature, combined optimization compensation algorithm, improve measurement accuracy;
7) Using distributed microprocessing technology, the analysis speed is fast, and the response time is ≤ 1s (the fastest is 100 ms);
8) Explosion Isolation design to ensure safe operation in Zone 1;

9) Integrated design for analysis display, convenient friendly man-machine interface, and multi-level authority management, easy for on-site equipment management;

10) Record up to 300,000 running data and logs of the instrument.


>>>Technical Specifications

Technical Specifications	Optical channel length	<15 meter
	Response Time	<1 second
	Linearity Error	±1% measurement range
	Span Drift	1% measurement range
	Maintenance Intervals	<2 times/year, Clean optical window (no consumables need)
	Calibration Intervals	<2 times/year
	Protection Class	IP67
	Explosion-proof Class	Ex d II C T5 Gb
Signal Interface	Analog Signal	2-wire  4-20mA Current( insulate  500Ωpeak load)
	Analog Inputs	2-wire  4-20mA Current(Temperature, pressure compensation)
	Digit Output	RS485/RS232/GPRS
	Relay Output	3- wire Output (Specifications:24V,1A)
Working Environment	Power Supply	24VDC(optional 220VAC),<20W
	Purge Gas	0.3-0.8MPa industrial nitrogen, purification instrument air, etc.
	Environment Temp.	-30ºC-60ºC
Installation	Installation Way	In-situ Installation


>>>Gas Detection Limit

Gases	Lower Limit	Detection Range	Gases	Lower Limit	Detection Range
O2	0.01%Vol.	0-1%Vol., 0-100%Vol.	CO	40 ppm	0-8000ppm,0-100%Vol.
CO2	20 ppm	0-2000ppm,0-100%Vol.	H2O	0.03 ppm	0-3 ppm, 0-70%Vol.
H2S	2 ppm	0-200 ppm, 0-30%Vol.	HF	0.01 ppm	0-1 ppm, 0-10000 ppm
HCL	0.01 ppm	0-7 ppm, 0-8000 ppm	HCN	0.2 ppm	0-20 ppm,0-1%Vol.
NH3	0.1 ppm	0-10 ppm, 0-1%Vol.	CH4	10 ppm	0-200ppm, 0-10%Vol.
C2H2	0.1 ppm	0-10 ppm, 0-70%Vol.	C2H4	1.0 ppm	0-100ppm, 0-70%Vol.

>>>Why choose KELISAIKE?

1. Mutual benefit : We are a Industry and trade integrated enterprise. You only pay for production cost and our interest. That made our price cheaper in the same quality.
2. Professional engineers: We have 3 engineers who have more than 10 years' experience and over 5 engineer assistants in gas detection line, with Hi-Tech equipments, we make more accurate and stable products.
3. Customize : We have strong R&D team, can custom product as your request.
4. Free OEM service : (a) Silk-printing your Logo(≥100PCS).  (b) Design your color box(≥500PCS).
5. Mix order : We accept mix order, different model and small quantity order.
6. After service:(a) 1 Year warranty. (b) If you found any inferior-quality products from us, we will send new ones to replace for free in your next order after confirmed.

>>>FAQ

Q: Are you a manufacturer?
A: Sure, we are the professional safety equipments manufacturer, we have experience of produce and market over 12 years in this field.
Q: Are you provide customization?
A: Yes, including gas type, gas detecting range, gas alarm point etc. please contact us about the detailed specificatios.
Q: Can I order one piece for sample to test the quality?
A: Yes, We recommend to check the sample before order.
Q: If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.

>>>Company View

Nanjing KELISAIKE Safety Equipment Co., Ltd. is one of the largest safety equipment manufacturers in mainland China, possessing the most complete product range and specifications in the safety equipment industry. Founded in 2004, Nanjing KELISAIKE has three subsidiaries in Beijing, Xi'an and Xinjiang province, and over 30 domestic sales service centers.

Standard products include the K60 series portable single gas detectors, K60-IV series multi gas detectors, K800 series fixed gas transmitters, K500 series wall-mounted gas detectors, K1000 series gas detector control panel units, KL99 series air breathing apparatuses, etc. Nanjing KELISAIKE is also a factory with rich experience in OEM service, providing professional design and manufacturing of customized products. The company's products are widely used in fields of petroleum, chemical, gas transmission and distribution, warehousing, municipal gas supply, fire fighting, environmental protection, metallurgy, pharmacy, energy and power industry.

As a leading enterprise in technology innovation, Nanjing KELISAIKE is committed to developing core competencies by continuous technology research. The company has a team of professional and technical talents, including more than 10 senior technicians and masters, who master quite many core technologies.

Nanjing KELISAIKE has passed ISO 9001 International Quality System Certification. With the guidance and tools of the standard, Nanjing KELISAIKE cannot only ensure that all the company's products and services consistently meet customer's requirements, but also that the quality of the products and services will be consistently improved.

KELISAIKE Faith
People-oriented and technology-driven
KELISAIKE Principle
Quality first, integrity-based
