Portable High-Flow Bioaerosol Sampler for Virus Air Sampler for Viruses
BeiJing Cape Golden Gas System Company LTD- Brand：Cape-Golden
- Customized：Non-Customized
- Portable：Portable
- Certification：CE
- Gas：Air
- Type：Air Sampler
Base Info
- Model NO.：WA-400II
- Flow Rate：400L,Min

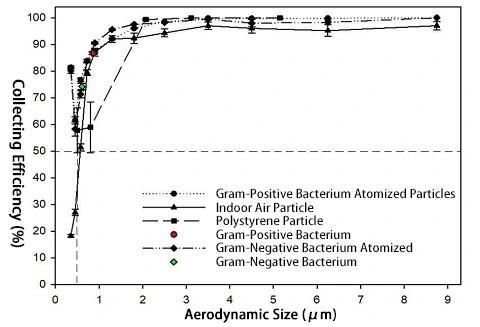

- Collection Efficiency：0.5um Pm48.6%, 1um Pm91.6%
- Sampling Tube：Dia15*60mm
- Sampling Liquid：3ml
- Sampling Time：User Setting
- Power Supply：Battery, 3.5hour
- Temperature：0~45.C
- Dimension：220*130*400mm
- Weight：3kg
- Transport Package：Portable Case
- Specification：220*130*400mm
- Trademark：Cape-Golden
- Origin：China
- HS Code：9027100090
- Production Capacity：1000sets,Year
Description

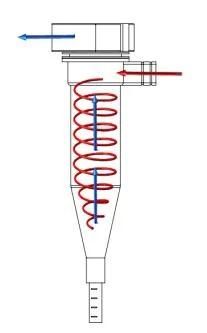

The Air Sampler for Viruses use the rechargeable lithium battery to drive fan extraction in the sampling tube and form negative pressure, applying the principle of cyclone centrifugal separation to design sampling tube, making solid-gas separation after the air entering into the sample tube, concentrating the aerosol in the air into the collection tube which locates at the bottom of the sampling cylinder, the aerosol-enriched air samples forms cyclones in the collection tube, the particles in the cyclone collides tangentially towards collection liquid swirl during the rotation process, and then captured by the collection fluid.3. Feature & Advantage
3.1 Centrifugal bioaerosol sampling, with large sampling flow, high flow rate and high collection efficiency.
3.2 Less collection liquid, high sample concentration and high positive rate of sample liquid detection.
3.3 The contaminated parts, such as sampling cylinder and sampling tube, can be disassembled, replaced, disinfected and reused on site. The operation is simple and fast, avoiding the cross contamination during continuous sampling process.
3.4 Delayed start time and sampling time can be set, LCD screen display, touch screen operation, one-button start, and easy operation.
3.5 Built-in rechargeable battery, which can be fitted with 220V AC or 12V DC.
3.6 Integrated design for the whole machine, light and portable, convenient for surface disinfection.

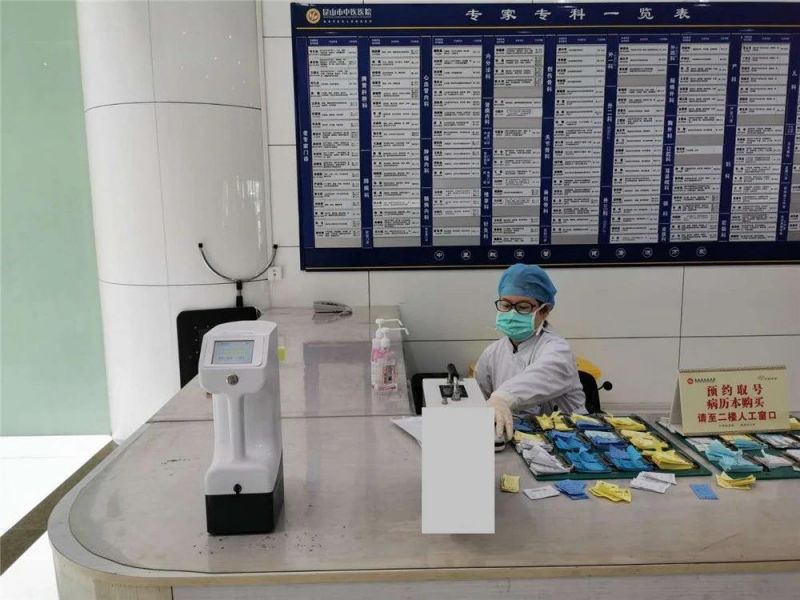

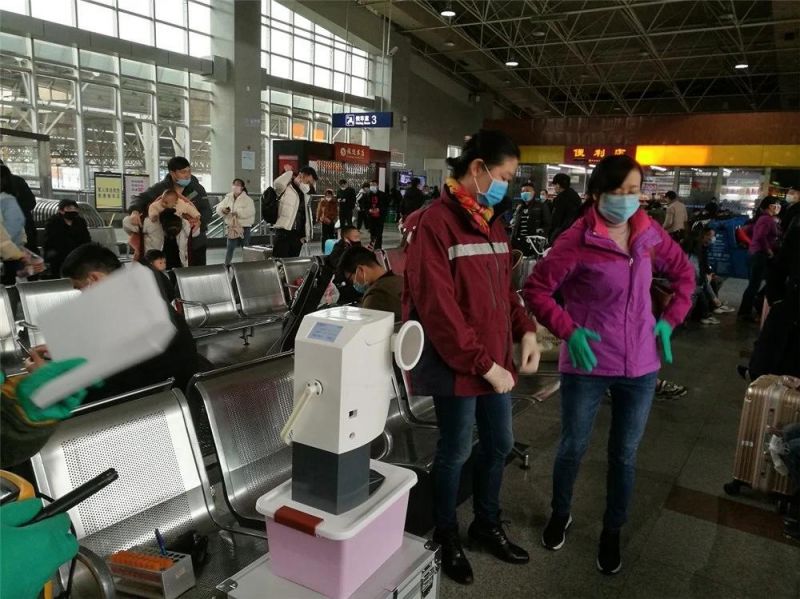

4. ApplicationThe Air Sampler for Viruses can be applied in on-site emergency sampling, battlefield biotoxin sampling. And Air Sampler for Viruses also be widely used in disease prevention & control, environmental protection, pharmaceutical, fermentation industry, food industry, biological cleaning and public places and other air microorganism sampling. For teaching, scientific research and other institutions, our instrument also has a good application in air microorganism sampling.
5. Specification
