• Model NO.：1200P
• Origin：China
• Production Capacity：30000 Pieces,Year

Measurement

CO2 Monitor

Operating Temperature

(0°C to 50°C)     32°F to 122°F

Storage Temperature

(-20°C to 60°C)   -4°F to 140°F

Operating & Storage RH

0-95%, non-condensing

CO2  Measurement

Accuracy  at 0~3000ppm

±50ppm or ±5% of reading, whichever is greater

Accuracy  over 3000ppm

±7%

Repeatability

20ppm at 400ppm (standard dev. of 10 readings in 1 minute)

Measurement Range

0-5000ppm

Display Resolution

1ppm (0-1000); 5ppm (1000-2000); 10ppm (>2000)

Temp Dependence

±0.1% of reading per °C or ±2ppm per °C, whichever is greater, referenced to 25°C

Pressure Dependence

0.13% of reading per mmHg (corrected by user's altitude input)

Response Time

<2min for 63% of step change or <4.6min for 90% step change

Warm-up Time

<30 sec

Temp Measurement

Operating Temperature

32°F to 122°F (0°C -50°C)

Display Resolution

0.2°F (0.1°C)

Accuracy

±1°F (±0.5°C)

Response Time

<20min (63%)

RH Measurement

Range

0-100%

Accuracy

±5%

Resolution

1% on Main Reading,  0.1% on Max Min Reading

Power Requirements

160mA Peak, 15mA average at 5.0V

Battery Life

Battery is not included.


IAQ Carbon Dioxide Monitor, CO2 Meter Controller Thermostat for Indoor Air Quality

IAQ Carbon Dioxide Monitor, CO2 Meter Controller Thermostat for Indoor Air Quality


Choose us:

IAQ Carbon Dioxide Monitor, CO2 Meter Controller Thermostat for Indoor Air Quality

1. We have 15 years' experience in designing and molding, we have 7 experienced designers and a molding factory,
our customers are from home and abroad for molds and enclosures, please visit this website for more information

http://shiantech.en.made-in-china.com

2. We have 3 engineers who have more than 10 years' experience in gas detection line, with Hi-Tech equipments,
we make more accurate and stable products, please visit this website for more information http://shiantech.en.made-in-china.com.
3. With much experience in OEM and ODM, we are capable to make handheld, fixed gas detectors as well as household gas alarms and gas analyzers.

IAQ Carbon Dioxide Monitor, CO2 Meter Controller Thermostat for Indoor Air Quality

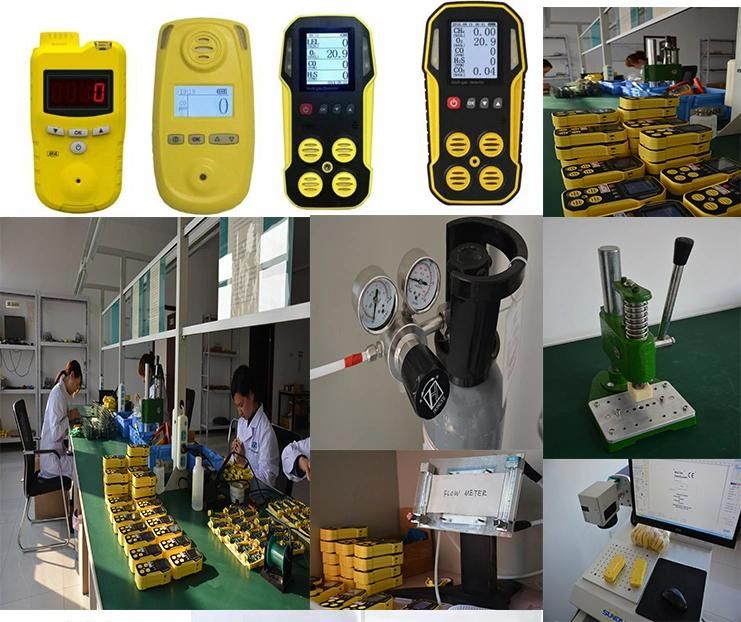

Factory:
IAQ Carbon Dioxide Monitor, CO2 Meter Controller Thermostat for Indoor Air Quality

One-stop service

IAQ Carbon Dioxide Monitor, CO2 Meter Controller Thermostat for Indoor Air Quality

1. Industrial design, structure design, appearance design for gas detection products- Indoor Air Quality Monitor

 2. Programme design and development, software development- Indoor Air Quality Monitor

 3. Fast prototype and mold development- Indoor Air Quality Monitor

 4. Mass production, international shipment- Indoor Air Quality Monitor

 5. OEM or relabel on basis of present ready-made products- Indoor Air Quality Monitor

IAQ Carbon Dioxide Monitor, CO2 Meter Controller Thermostat for Indoor Air Quality

1. Customer's logo and brand name can be printed on enclosure, enclosure color can be changed according to customer's preference- Indoor Air Quality Monitor

2. Software can be changed according to customer's preference- Indoor Air Quality Monitor

IAQ Carbon Dioxide Monitor, CO2 Meter Controller Thermostat for Indoor Air Quality
IAQ Carbon Dioxide Monitor, CO2 Meter Controller Thermostat for Indoor Air Quality
