• Model NO.：TPY-6A
• Frequency：Other
• Performance：Automation
• Function：Other
• Weight：0-100Kg
• Power Source：AC220V±22V
• Customized：Customized
• Stability：Absorbency of Light Drift<0.003
• Repeatability：Absorbency of Light<0.005
• Sensitivity：Red Light≥4.5X10-5
• Blue Light：≥3.17*10-3
• Wavelength Range：Red Light 620±5nm
• Blue：440±5nm
• pH Testing Range：1-14
• Error：["±0.1","±5%"]
• Testing Range：0.01% -1.00%
• Transport Package：Standard Export Package
• Specification：TPY-6A
• Trademark：WEST TUNE
• Origin：Zhejiang, China
• Production Capacity：100set,Month

Basic Info.

Model NO. TPY-6A Frequency Other Performance Automation Function Other Weight 0-100Kg Power Source AC220V±22V Customized Customized Stability Absorbency of Light Drift<0.003 Repeatability Absorbency of Light<0.005 Sensitivity Red Light≥4.5X10-5 Blue Light ≥3.17*10-3 Wavelength Range Red Light 620±5nm Blue 440±5nm pH Testing Range 1-14 Error ["±0.1","±5%"] Testing Range 0.01% -1.00% Transport Package Standard Export Package Specification TPY-6A Trademark WEST TUNE Origin Zhejiang, China Production Capacity 100set/Month

Product Description

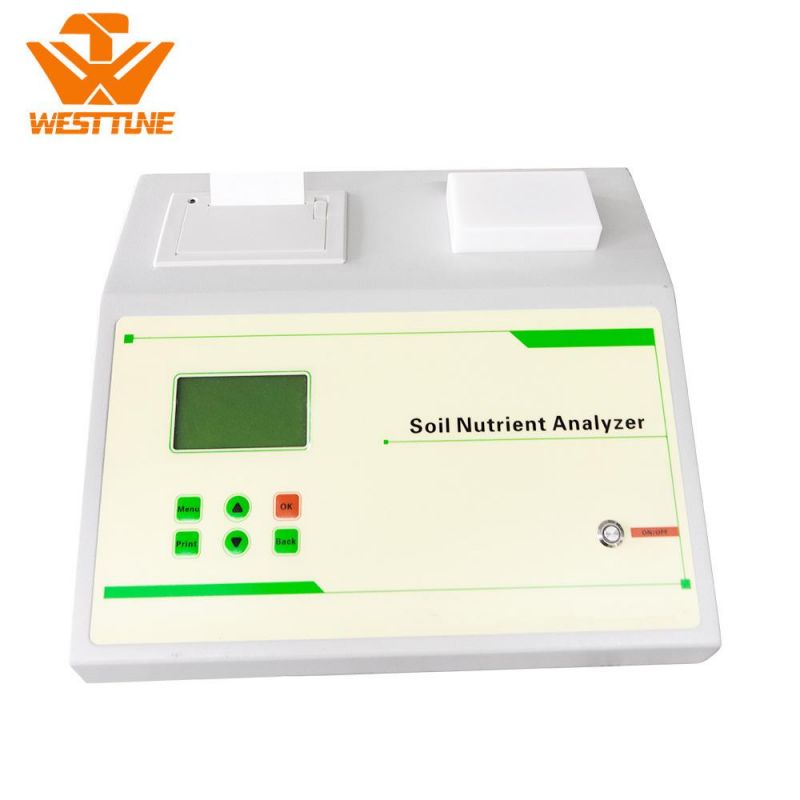

Soil Nutrient Tester
Quickly test the N, P, K, organic matter, salinity, pH and moisture in soil.
Feature1.Soil Nutrient technical parameter
Stability: Absorbency of light drift<0.003
Repeatability: Absorbency of light<0.005
Linearity errors: red light for Copper sulfate, and blue light forpotassium bichromate < 3.0%
Sensitivity: Red light≥4.5x10^-5
             Blue light≥3.17*10^-3
Wavelength range: Red light 620±5nm; Blue light440±5nm
Anti-Knocking performance: qualified

2. pH technical parameter
Testing range: 1-14
Error: ±0.1


3. Salinity technical parameter
Testing range: 0.01% -1.00%
Error: ±5%

4. Soil moisture technical parameter (TPY-7PC)
Moisture unit: % (m³/m³)
Accuracy: ±2%
Moisture content rate testing range: 0-100%

5. Instrument technical parameter
Display mode: LCD display
Interface: USB
Working environment: 0~40ºC  35~85%RH
Alternating current (AC): 220V-240V, 50Hz, adapter: 12V/3A
Size: 32*28*11cm
Specification

Model	Function
TPY-IV	1.Test N, P, K, Organic Matter; 2.with storage function;3.built-in the amount of nutrients needed for growth of 73 kinds of crops, can provide guidance for fertilizing amount according to needs; 4.Without printing function
TPY-6A	1.Test N,P,K, organic matter, soil pH, soil salinity; 2.with storage function;3.built-in the amount of nutrients needed for growth of 73 kinds of crops, can provide guidance for fertilizing amount according to needs; 4.with printing function
TPY-6PC	Based on TPY-6A, with a software, be able to connect to computer for data storage
TPY-7PC	On the basis of TPY-6PC, but add one more parameter: soil moisture.
