• Model NO.：TPP
• Gas Supplies：Compressed Air
• Quantity of Heating Bar：6 PCS
• Heating Capability：Max.1200ºC
• Radiation Heat Flux：10~80 Kw ,M2
• Power Consumption：15000W
• Applicating：Protective Clothing Testing
• Transport Package：Plywood Case
• Specification：Stainless steel
• Trademark：AI
• Origin：China
• HS Code：9031809090
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. TPP Gas Supplies Compressed Air Quantity of Heating Bar 6 PCS Heating Capability Max.1200ºC Radiation Heat Flux 10~80 Kw /M2 Power Consumption 15000W Applicating Protective Clothing Testing Transport Package Plywood Case Specification Stainless steel Trademark AI Origin China HS Code 9031809090 Production Capacity 10 Sets/Month

Product Description

Introduction
Heat Radiation Resistant Test Apparatus is suitable to determine heat radiation resistance or thermal conductivity of protective gloves and protective clothing.

Features
1.Radiation source is made up of 6 groups heating bar,length of heat bar is 356mm±2mm,and the length of heating part is 178±2mm,diameter of heating bar is 7.9±0.1mm.
2.Radiation source uses PID temperature controller,controlling accuracy is ±1ºC.
3.Heating capability of radiation source: Max.1200ºC±5%,adopt PID adjustable controller.
4.Radiation heat flux:10~80 kw /m2
5.Sampling frequency if data acquisition card can reach 20Hz.
6.Heat Radiation Resistant Test Apparatus has heat radiation flux sensor with quartz window and water circulating device,maximum measuring range is 100kw/m2.
7.It's supplied with copper calorimeter,which can measure the temperature change of sample's back.
8.Copper calorimeter is made of high conductivity oxygen-free pure copper.
9.Heat Radiation Resistant Test Apparatus is supplied with A and B type sample holders.
10.Sample moving device can be moved on platform freely.
11.Test parameter can be set by software,and it starts test automatically.It can test temperature rising 12s and 24s,heat flux density Q and heat transfer coefficient HF.

Introduction of main machined parts

No.	Name	Craft
1	Heat auxiliary facilities	Stainless steel and 2mm SS sheet machines,seamless welding
2	Sample holder	Stainless steel machines as per standard
3	Other auxiliary facilities	Aluminum or iron baking finish
4	Auxiliary fixtures	Aluminum processing or stainless steeel

Main Components of Heat Radiation Resistant Test Apparatus

No,	Name	Remark
1	Operation method	Automatic controlled by computer
2	Software	Designed by AIC
3	Acquisition card	Taiwan ADVANTECH
4	Computer	Dell or Lenovo desktop
5	Heat flow meter	Imported
6	Heating bar	Customized



Customer Feedback

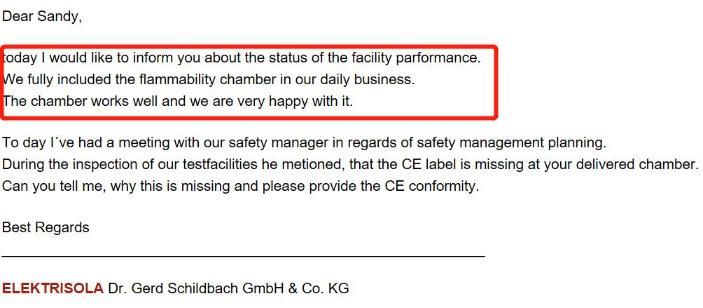

Germany

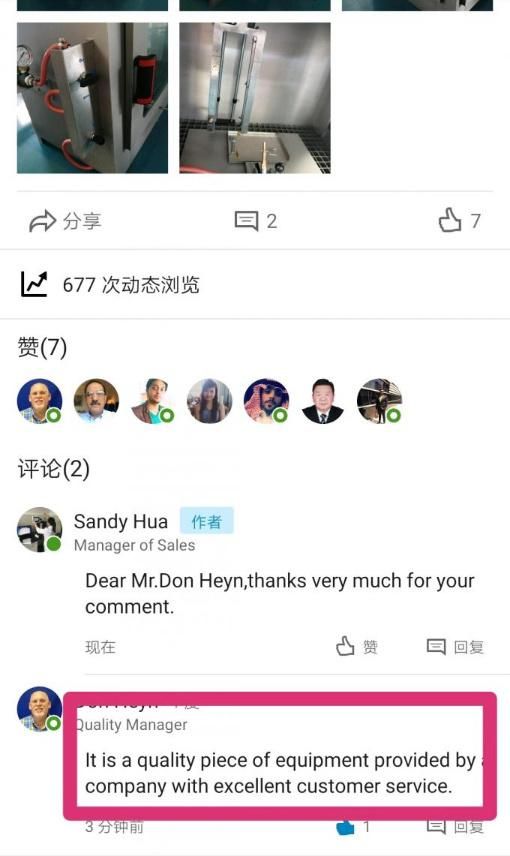

USA

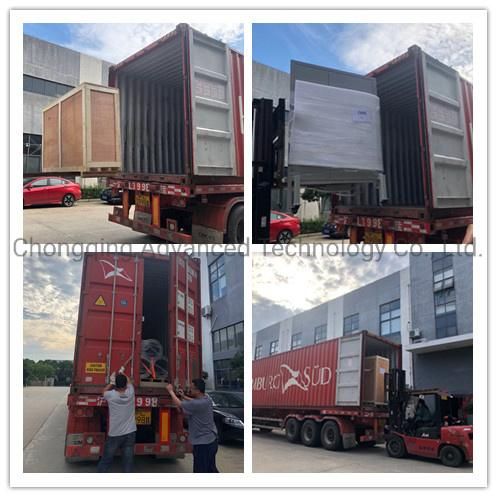

Transporation

FAQ
1.What's the delivery time?
About 60 days .

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
