• Model NO.：KF100-CEMS
• Certification：CE
• Gas：Nox
• Type：UV Analyzer
• So2 Detection Range：0 - 20 Ppm, 0 - 3000ppm
• Nox Detection Range：0 - 20 Ppm, 0 - 3000ppm
• O2 Detection Range：0 - 25%
• Co Detection Range：0-1000ppm
• CO2 Detection Range：0-20%Vol
• Dust Detection Range：0 - 500mg,M3
• Temperature：0 - 400ºC
• Pressure：-10kpa~10kpa
• Flow：0 - 40m,S
• Humidity：0 - 40%Vol
• Signal Transmission：RS485,4-20mA
• Sysrtem Software：Window7 Linux
• Power：220 V AC,50 Hz 4000 W
• Transport Package：Wooden Box
• Specification：200*800*600mm
• Trademark：KELISAIKE
• Origin：China
• HS Code：9027100090
• Production Capacity：500

Basic Info.

Model NO. KF100-CEMS Certification CE Gas Nox Type UV Analyzer So2 Detection Range 0 - 20 Ppm, 0 - 3000ppm Nox Detection Range 0 - 20 Ppm, 0 - 3000ppm O2 Detection Range 0 - 25% Co Detection Range 0-1000ppm CO2 Detection Range 0-20%Vol Dust Detection Range 0 - 500mg/M3 Temperature 0 - 400ºC Pressure -10kpa~10kpa Flow 0 - 40m/S Humidity 0 - 40%Vol Signal Transmission RS485,4-20mA Sysrtem Software Window7 Linux Power 220 V AC/50 Hz 4000 W Transport Package Wooden Box Specification 200*800*600mm Trademark KELISAIKE Origin China HS Code 9027100090 Production Capacity 500

Product Description

 Continuous Emission Monitoring System SO2 NOx O2 NO NO2 CEMS
Introduction:

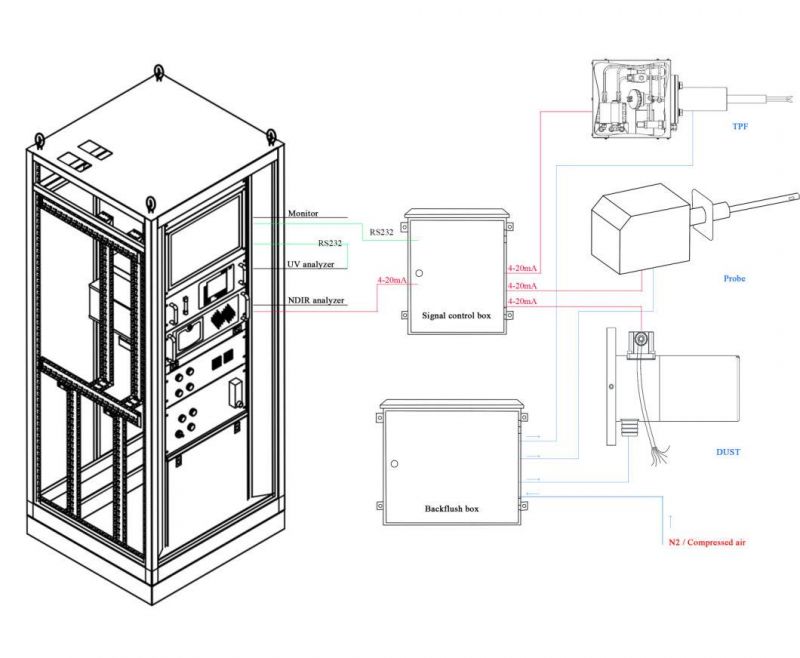

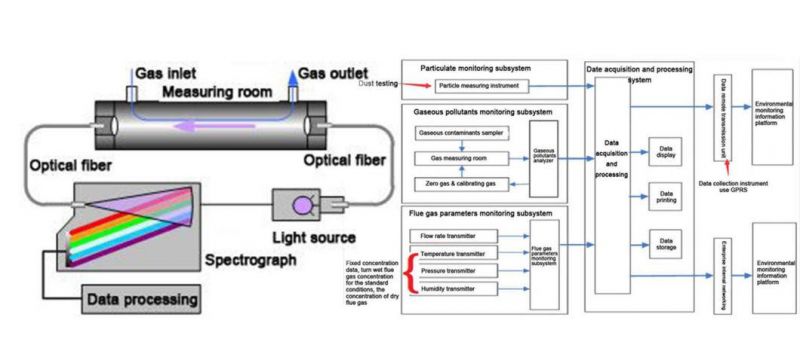

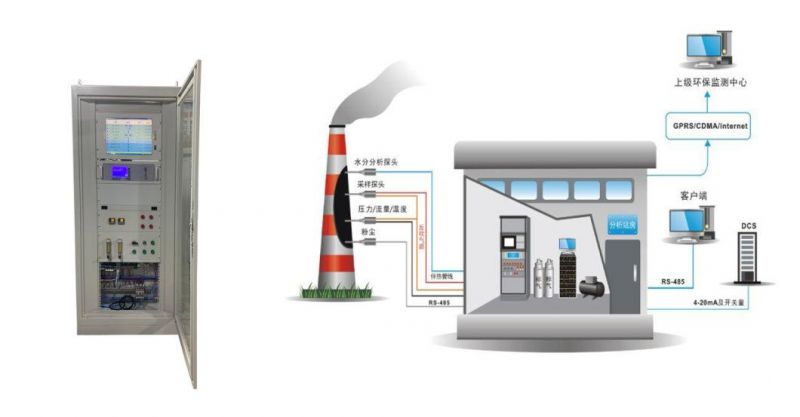

The CEMS-1000 flue gas emission continuous monitoring system (CEMS) is composed of four basic parts: the smoke and dust monitoring subsystem, the gaseous pollutant monitoring subsystem, the flue gas parameter monitoring subsystem, the system control and the data acquisition and processing subsystem. It can monitor SO2, NOx, O2, dust, temperature, pressure, flow rate, humidity and other parameters in the gas, and can also expand the monitoring of HCl, HF, CO, CO2,NO2 and other parameters for specific occasions. The measured gas passes through the sampling probe to remove dust, heat tracing tube sampling, multi-stage filtration, secondary condensation to quickly remove water and cool down, and enter the micro heat tracing gas analysis module (DOAS and TDLAS technology) for analysis and measurement. The use of dry measurement effectively solves the technical problems of large fluctuations in data measurement caused by large humidity changes such as waste incineration.



Technical Features:
The secondary condensation quickly removes water and cools, reduces air and water contact time, and reduces SO2 loss; the analyzer adopts micro-heating technology to reduce the maintenance period of the measuring pool; fast loop sampling pump sampling, fast response time; multi-stage filtration and water removal, Dust removal, high reliability; can achieve full calibration.


Application:
Coal-fired power plants, waste-to-energy power plants, cement plants, glass plants, lime plants, ceramic plants, sintering, coke ovens, desulfurization processes, denitrification processes and other exhaust emission monitoring and process control.


Technical Specifications:

Project	Indicators
SO2 Detection range	0 - 20 ppm, 0 - 3000ppm
NOx Detection range	0 - 20 ppm, 0 - 3000ppm
O2 Detection range	0 - 25%, Electrochemical or zirconia
CO Detection range (Optional)	0-1000ppm
CO2 Detection range(Optional)	0-20%Vol
Dust Detection range	0 - 20mg/m3, 0 - 500mg/m3
Temperature	0 - 400ºC
Pressure	-10kPa~+10kPa
Flow	0 - 40m/s
Humidity	0 - 40%Vol
Ambient temperature	5ºC ~ 45ºC
Ambient Humidity	0~95%RH
Sample gas flow	0.3-1.L/min
Signal transmission	RS485,4-20mA
Size	80*60*180cm
Power	220 V AC/50 Hz 4000 W
Protection grade	Cabinet IP42, others IP65
