• Model NO.：BND-FLA
• Delivery Time：3-7days
• Product Name：Combustible Gas Detector
• Measured Gas：R600 R134A R404 etc
• Test Range：0-100ppm,0-500ppm,0-1000ppm,0-5000ppm
• Resolution：1ppm,3ppm,4ppm,15ppm
• Repeatability：≤±1%
• Response Time：<20s
• Direct Reading：Ppm,%Lel,%Vol Any Setting
• Power Supply：220V DC
• Transport Package：Safety Carton Box
• Specification：R600
• Trademark：BND
• Origin：China
• Production Capacity：10000PCS Per Month

Output signalUsers can be based on actual requirements, the maximum transmission of 2000 meters (single-core 1mm2 Shielded cable)two-wire 4-20mA current signal output (three-wire optional)RS-485 digital signal output, with RS232 adapter can be stored on the computerData (optional)Group 2 relay output: passive electric shock capacity 220VAC 3A, 24VDC 3A (optional)alarm signal output: the scene sound and light alarm, alarm sound: <90 dB (optional)Detection accuracy≤±2%(F.S)Repeatability≤±1%Zero drift≤±1%(F.S/year)Type of alarmSound and light alarmResponse time<20sRecovery time<20sExplosion protection typeIntrinsically safeExplosion-proof markEx ibdIICT4Protection classIP65Direct readingPPM,%LEL,%VOL any settingUse environmentTemperature -20 ºC ~ +70 ºC; relative humidity ≤ 95% RH (non-condensing)Working power supply24VDC (normal operating voltage range: 10 ~ 30VDC)MaterialsSainless seel/aluminum alloy


FAQ:
Q1.What about your quality?
Each equipment must be carry out 100% examination and test again before shipping

Q2.What is the MOQ ?
Most instruments support MOQ one set.

Q3.How long the delivery time ?
Generally most equipment will be 3-10days after we receive your payment or the order conformed ,please conform with us before you made an order .
Q4.What is the warranty of the products?
One year ,but we can provide you life long support .

Q5.What is the package?
Export standard Solid wooden case

Q6.What is the shipping way ?
We have stable forwarding agent for air and sea transportation ,and also express about DHL TNT etc , we will suggest you the best shipping way base on your requirement .

Q7.What is the payment term ?
T/T, Western Union,Money gram ,Paypal etc



Company  Profile :Our  Advantages :

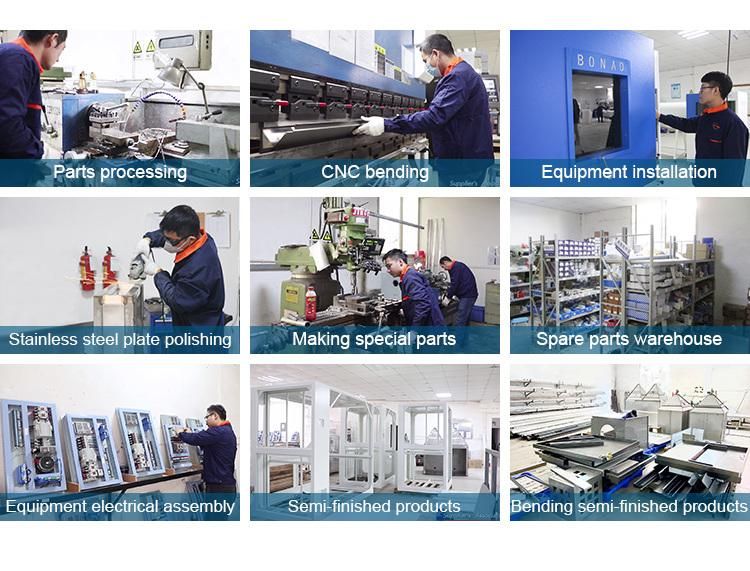

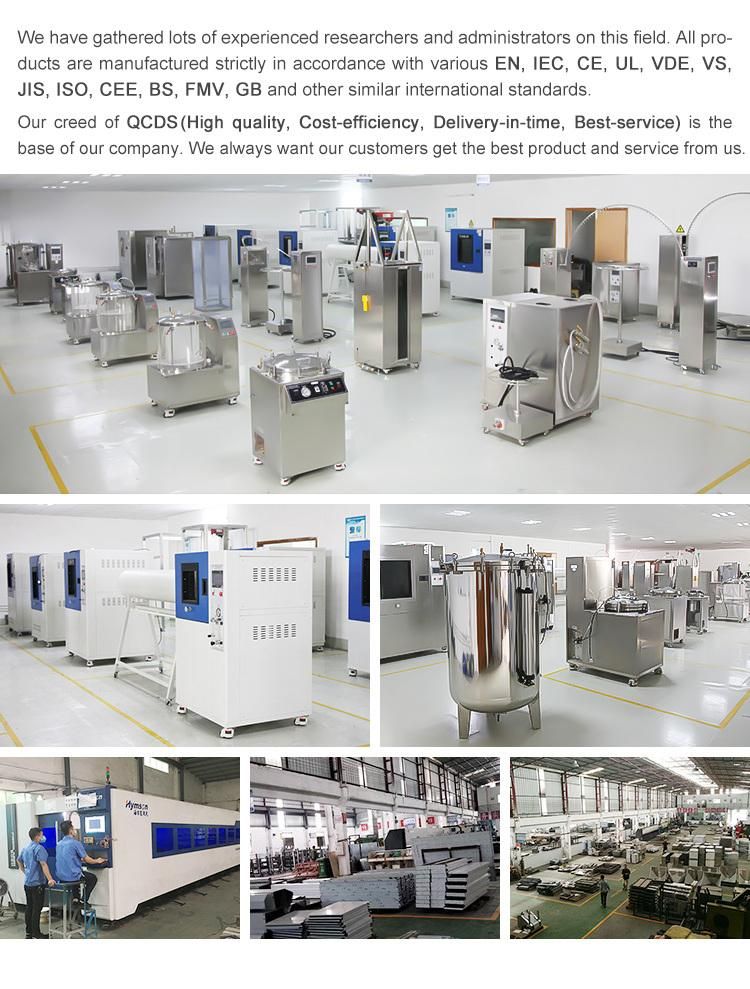

Certifications :Factory  Introduction :Plant Warehouse :Cooperative Customers & Brands:
Customer  Reviews :Product  Packaging :
