• Model NO.：ECscan10
• Conductivity Accuracy：±1% F.S
• Conductivity Resolution：0.1µs,Cm,1µs,Cm,0.01ms,Cm
• Calibration Points：1 Point
• Temperature Compensation：0~50°c, Automatic
• Temperature Coefficient：2%,°c, Linear
• Cell Constant：K=1, Platinum Conductivity Cell
• Data Hold：Manual
• Power off：Manual or Automatic (8 Minutes After Last Key Pre
• Sensor Type：Ecscan-C1-100K
• Power：3×1.5V G13A Batteries
• Battery Life：Approximately 150 Hours
• Dimensions：185(L)×40(Dia.)mm
• Weight：100g
• Transport Package：Standard Export Packing
• Trademark：West Tune
• Origin：China
• HS Code：9027809900
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. ECscan10 Conductivity Accuracy ±1% F.S Conductivity Resolution 0.1µs/Cm/1µs/Cm/0.01ms/Cm Calibration Points 1 Point Temperature Compensation 0~50°c, Automatic Temperature Coefficient 2%/°c, Linear Cell Constant K=1, Platinum Conductivity Cell Data Hold Manual Power off Manual or Automatic (8 Minutes After Last Key Pre Sensor Type Ecscan-C1-100K Power 3×1.5V G13A Batteries Battery Life Approximately 150 Hours Dimensions 185(L)×40(Dia.)mm Weight 100g Transport Package Standard Export Packing Trademark West Tune Origin China HS Code 9027809900 Production Capacity 5000PCS/Month

Product Description

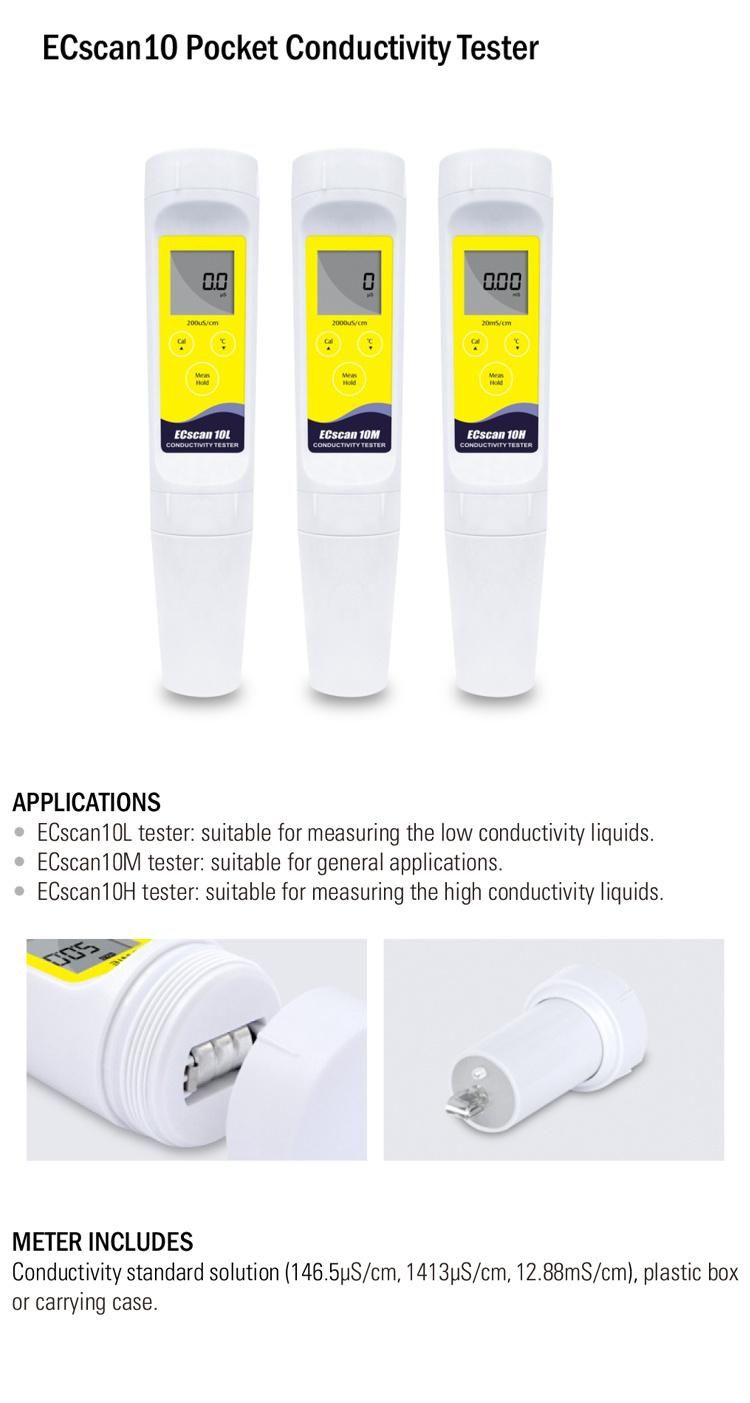

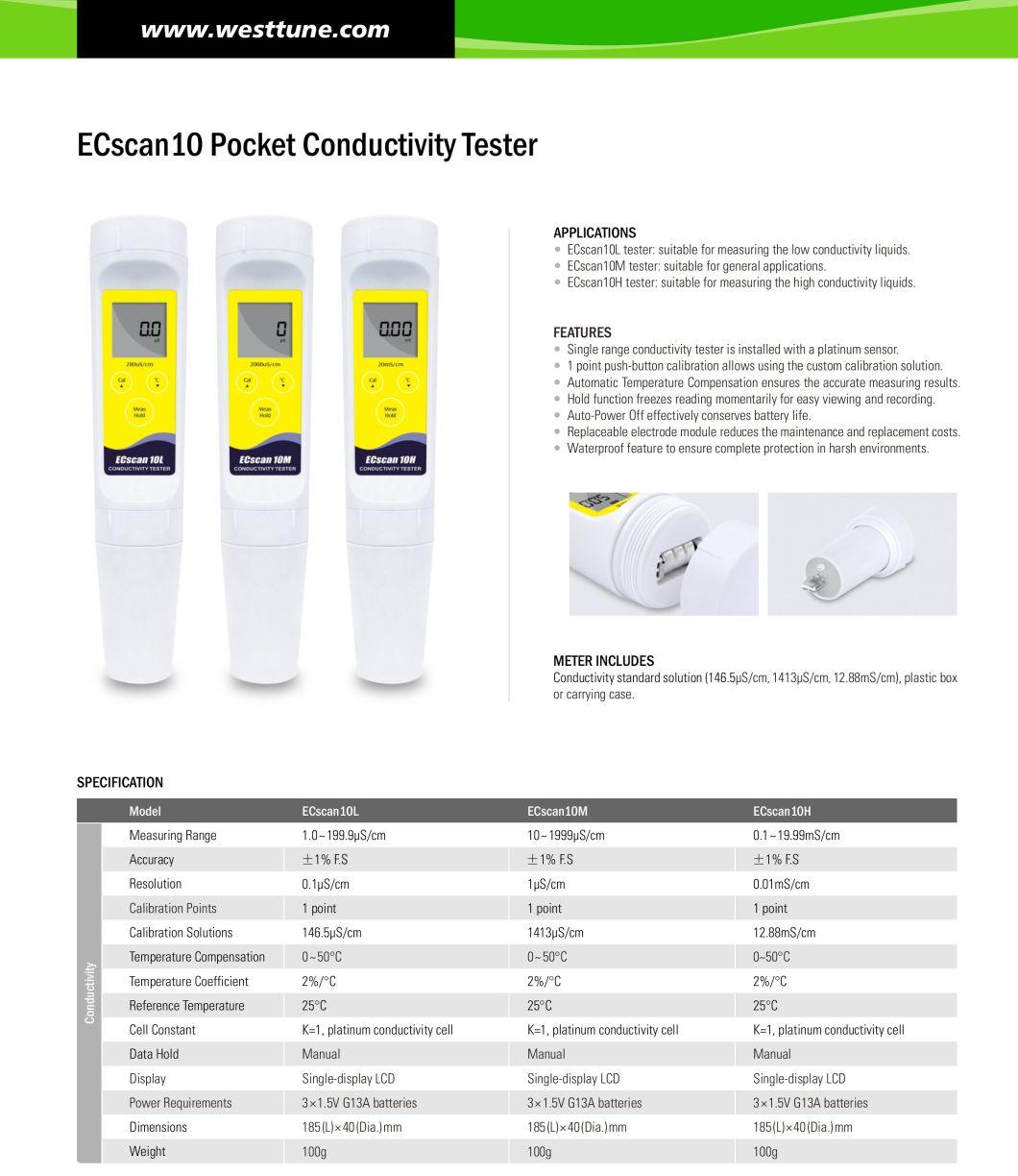

ECscan10 Pocket Conductivity Tester

APPLICATIONS
ECscan10L tester: suitable for measuring the low conductivity liquids.
ECscan10M tester: suitable for general applications.
ECscan10H tester: suitable for measuring the high conductivity liquids.

FEATURES
* Single range conductivity tester is installed with a platinum sensor.
* 1 point push-button calibration allows using the custom calibration solution.
* Automatic Temperature Compensation ensures the accurate measuring results.
* Hold function freezes reading momentarily for easy viewing and recording.
* Auto-Power Off effectively conserves battery life.
* Replaceable electrode module reduces the maintenance and replacement costs.
* Waterproof feature to ensure complete protection in harsh environments.

METER INCLUDES
Conductivity standard solution (146.5μS/cm, 1413μS/cm, 12.88mS/cm), plastic box
or carrying case

Specification:

Model	ECscan10L	ECscan10M	ECscan10H
Range	1.0~199.9µS/cm	10~1999µS/cm	0.1~19.99mS/cm
Accuracy	±1% F.S	±1% F.S	±1% F.S
Resolution	0.1µS/cm	1µS/cm	0.01mS/cm
Calibration Points	1 point	1 point	1 point
Calibration Solutions	146.5µS/cm	1413µS/cm	12.88mS/cm
Temperature Compensation	0~50°C, Automatic	0~50°C, Automatic	0~50°C, Automatic
Temperature Coefficient	2%/°C, linear	2%/°C, linear	2%/°C, linear
Cell Constant	K=1, platinum conductivity cell	K=1, platinum conductivity cell	K=1, platinum conductivity cell
Data Hold	Manual	Manual	Manual
Power Off	Manual or Automatic (8 minutes after last key pressed)	Manual or Automatic (8 minutes after last key pressed)	Manual or Automatic (8 minutes after last key pressed)
Sensor Type	ECSCAN-C1-100K	ECSCAN-C1-100K	ECSCAN-C1-100K
Display	LCD	LCD	LCD
Power	3×1.5V G13A batteries	3×1.5V G13A batteries	3×1.5V G13A batteries
Battery Life	Approximately 150 hours	Approximately 150 hours	Approximately 150 hours
Dimensions	185(L)×40(Dia.)mm	185(L)×40(Dia.)mm	185(L)×40(Dia.)mm
Weight	100g	100g	100g
