• Model NO.：XF-KL3000
• Function：Storage
• Weight：0-100Kg
• Power Source：AC200V-240V
• Customized：Non-Customized
• Overall Power Consumption：<30W
• Dimensions：468*368*136mm
• Operation Mode：Automatic
• Transport Package：Standard Export Package
• Trademark：Labkits
• Origin：Hunan China
• Production Capacity：500PCS,Month

Basic Info.

Model NO. XF-KL3000 Function Storage Weight 0-100Kg Power Source AC200V-240V Customized Non-Customized Overall Power Consumption <30W Dimensions 468*368*136mm Operation Mode Automatic Transport Package Standard Export Package Trademark Labkits Origin Hunan China Production Capacity 500PCS/Month

Product Description

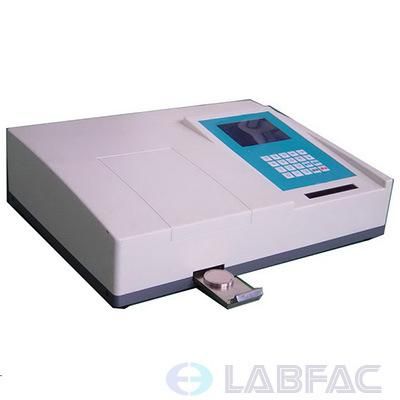

Item:  X Fluorescence Calcium and Ferrum Analyzer for Cement Industry
Model: XF-KL3000

1. Main Usage
XF-KL3000 X fluorescence calcium ferrum analyzer is a new type of microcomputer-based desktop equipment adopting pure physical analysis method, used for cement plant, which can quickly analyze the percentage content of CaO and Fe2O3  in the material  for 30S, providing the data in time for ingredients control. Due to its fast analysis speed (30 seconds), so it can monitor the condition of composition change in production process in real time, facilitating timely to adjust the ratio of raw materials, laying a solid foundation for producing qualified clinker and cement. At the same time it can be used to analyze the percentage content of CaO and Fe2O3 in limestone, clay, iron powder, fly ash, coal gangue ,and so on, providing quality data for factory raw materials. It also could be used to analyze the percentage content of CaO and Fe2O3 in various occasions, such as lime plant, mines, power plants, bricks and tiles plant and other industries.

2. Main feature

1) Micro computer integrated as a whole, compact structure, beautiful appearance
2) Large screen LCD display, entirely in English menu prompt operation, convenient to use
3) Short analysis time, CaO, Fe2O3 percentage content is given in 30 seconds.
4) Don't destroy samples when instrument detects, sample can be used  repeatedly .
5) Without any chemical reagent, no "three wastes" emissions, don't contain radioactive source, low-power, comply with the requirement of environmental protection and energy saving.
6)Large data storage capacity, content result, instrument self-checking data could be queried, avoid printing supplier.
7)Instrument execute GB/T19140 <the general principles of cement X ray fluorescence analysis>

3. Technical indicator
1)Analysis range: CaO,Fe2O3 0.01%~100%
2)Analysis precision : Standard deviation SCaO≤0.05%,SFe2O3≤0.05% (Cement
Raw material)
3)Analysis width: CaO(Fe2O3 )% max~CaO(Fe2O3 )% min≤15%, for example in the cement CaO:38.00%~53.00%, selected according to calibration working curve.
4)Analysis time: n* 30S( n is 1-5 natural number)
5)Using condition: power supply AC200V-240V;environment temperature 0-40ºC;Relative humidity<85%(30ºC)
6)Overall power consumption: <30W
7)Overall dimension: 468*368*136mm
8) Total weight: 13.8kg
