• Model NO.：AIC-136
• Thermocouple Accuracy：± 0.5%
• Diameter of Thermocouple Wire：0.40mm
• Heating Rate：5 ºC , Min or 3 ºC , Min
• Heating Power：6kw
• Delivery Time：30 Days
• Test Object：Thermal Insulation Materials
• Transport Package：Plywood Case
• Specification：Stainless steel
• Trademark：AI
• Origin：China
• HS Code：9031809090
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. AIC-136 Thermocouple Accuracy ± 0.5% Diameter of Thermocouple Wire 0.40mm Heating Rate 5 ºC / Min or 3 ºC / Min Heating Power 6kw Delivery Time 30 Days Test Object Thermal Insulation Materials Transport Package Plywood Case Specification Stainless steel Trademark AI Origin China HS Code 9031809090 Production Capacity 20 Sets/Month

Product Description

Introduction:

This Full face mask flame resistance tester is designed and producted according to EN 136 and GA 124-2013 latest version of the standard development.It meets the standard tool for back, back with a belt buckle, bottle protective cover and full face shield barrier combustion performance test.

The Full face mask fire resistance testing equipment is intelligent, touch-screen control system; the freedom to choose different samples of test procedures; and test results are automatically saved.




Standard:
• EN 136: Respiratory protective devices - Full face masks - Requirements, testing, marking
• GA 124-2013 latest version of the standard requirements

Structure:

1, Cabinet of Full face mask fire resistance tester is painted, elegant appearance;
2, The full face mask and back strap with a combustion device with platform integration of structural design;
3, All toolings are made of stainless steel, appearance, corrosion resistance;
4, The Full face mask flame resistance tester has a pressure gauge and a pressure regulating valve;
5, Needle valve controls the flow rate of the burner gas ;
6, PLC and touch screen control systems; test interface is easy to operate;
7, The tester automatically timing, the heat data is automatically recorded and stored;

Full face mask test section:

• Burning test private metal mould
1, Six imported burner nozzle, can control propane and air flow rate,
2, Burner nozzle height can be adjusted up and down; 250mm from the outer surface of the specimen,
3, Pressure gauge and regulator valve regulates the burner gas pressure in the range of 0 ~ 10kPa,
4, Gas automatic blocking device, which blocked gas supplies when the test is 5seconds,
6, Automatic ignition, switches off automatically after 5s ignition;
• Back with strap test section:
1, Stainless steel baffle plate, appearance and corrosion;
2, Imported Bunsen burner, gas and air flow rat

3, Torch lifting device; stainless steel sample holder;
4, Automatic timing;
5, Flame height is 40mm; the temperature at 20mm is 800 ± 50 ºC;
6,Aomatic ignition, turns off automatically after 20s ignition;

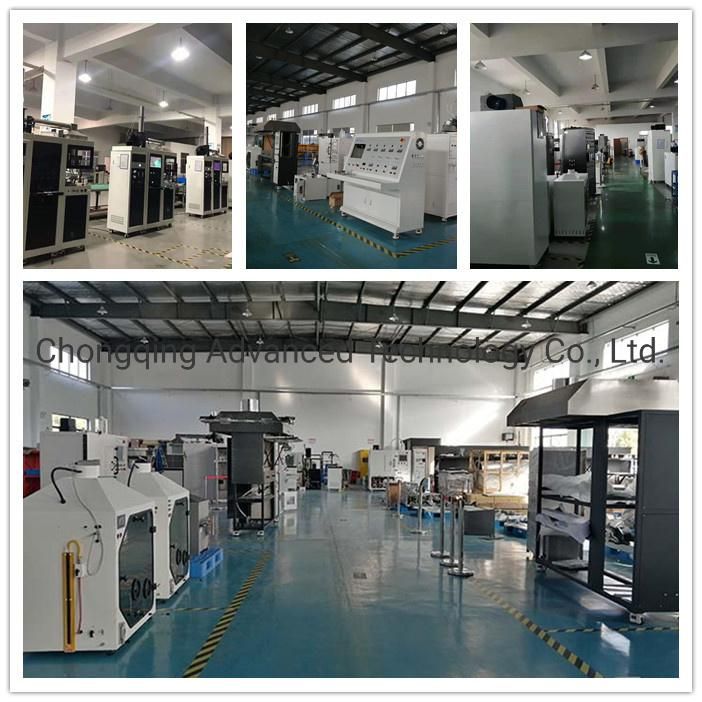

Factory overview

Customer Feedback

Germany

USA

Transporation

FAQ
1.What's the delivery time?
About 40 working days.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
