Online Water Testing Instrument Digital Ec TDS Conductivity Meter Controller
Shanghai Kuosi Electronic Co., Ltd.- Display：Digital
- Appliance：Medical Research, Biochemistry, Water
- Portable：Non Portable
- Certification：CE
- Type：Conductivity Meter
- Measuring Liquid：Chemical Liquid
Base Info
- Model NO.：A10
- Transport Package：Standard Packing
- Specification：Plastic,Metal
- Trademark：Other
- Origin：China
- HS Code：9027809900
- Production Capacity：500 Pieces,Month
Description
Signal output4-20mA output,RS485 communictaion,compatible with standad MODBUS-RTU Power supply AC220±10%,50HZ Dimensions 96*96*93mm(H*W*D)
· Factory standard configuration is Chinese interface, can be switched to English in the language menu.
· Conductivity (TDS) and temperature measurement, upper limit control, current output and digital communication.
· It can be free to adjust the conductivity temperature compensation coefficient and TDS conversion coefficient.
· Two relays, conductivity (TDS) and temperature can be controlled respectively, and the hysteresis can be adjusted freely.
· In a set of instrument mode isolation transmission port can be configured with electrical conductivity (TDS) or temperature, the maximum loop resistance of 300 Ω.
· Voice alarm switch function, through the interface options setting on or off.
· LCD backlight can choose energy-saving mode, auto off timer.
· High performance CPU, excellent electromagnetic compatibility.
· One click restore factory parameter function.
· Password management functions, prevent misuse of non professional personnel.

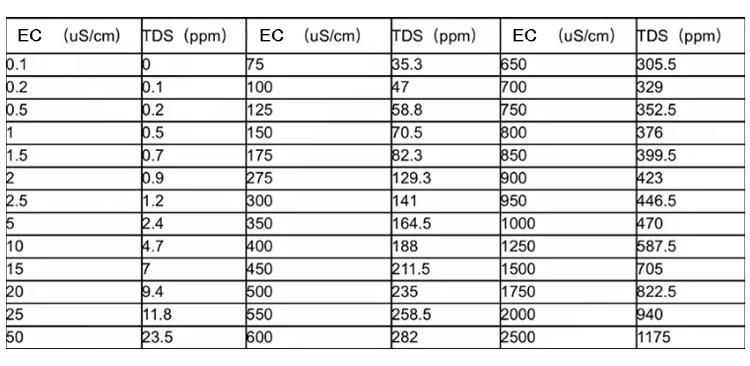

Correspondence between TDS and conductivity
Certificate
Company Profile
Packing & Shipping
FAQ
Q1: What's your business range?
A: We manufacture PH/ORP/EC/DO/Chlorine/Turbinity meter and provide dosing pump, diaphragm pump,dosing system, pressure instrument, flow meter, level meter, dosing system and so on.
Q2: How about the quality of the managements?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you.
Q3: Can you offer OEM or design services?
A: Yes, we have our own design department and production tools. We can make OEM products according to your requirements.
Q4: What are your terms of payment and delivery time?
A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally, we will arrange the shipment within 7 days after received payment.
Q5: How about warranty?
A: 12 months warranty.
More information please contact us, we will provide the timely feed
Characteristics:
· Factory standard configuration is Chinese interface, can be switched to English in the language menu.· Conductivity (TDS) and temperature measurement, upper limit control, current output and digital communication.
· It can be free to adjust the conductivity temperature compensation coefficient and TDS conversion coefficient.
· Two relays, conductivity (TDS) and temperature can be controlled respectively, and the hysteresis can be adjusted freely.
· In a set of instrument mode isolation transmission port can be configured with electrical conductivity (TDS) or temperature, the maximum loop resistance of 300 Ω.
· Voice alarm switch function, through the interface options setting on or off.
· LCD backlight can choose energy-saving mode, auto off timer.
· High performance CPU, excellent electromagnetic compatibility.
· One click restore factory parameter function.
· Password management functions, prevent misuse of non professional personnel.

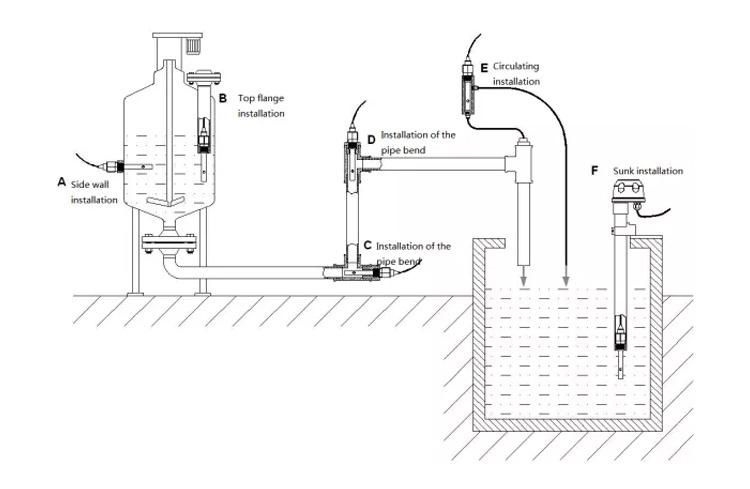

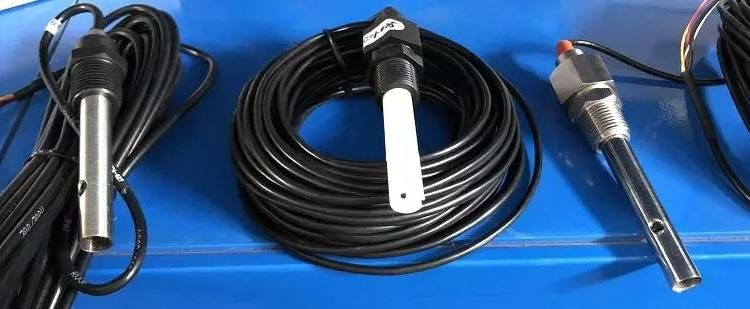

Measuring electrode installation
Correspondence between TDS and conductivity
Certificate
Company Profile
Packing & Shipping
FAQ
Q1: What's your business range?
A: We manufacture PH/ORP/EC/DO/Chlorine/Turbinity meter and provide dosing pump, diaphragm pump,dosing system, pressure instrument, flow meter, level meter, dosing system and so on.
Q2: How about the quality of the managements?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you.
Q3: Can you offer OEM or design services?
A: Yes, we have our own design department and production tools. We can make OEM products according to your requirements.
Q4: What are your terms of payment and delivery time?
A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally, we will arrange the shipment within 7 days after received payment.
Q5: How about warranty?
A: 12 months warranty.
More information please contact us, we will provide the timely feed
