Load Wheel Rolling Tester for Controlling Upper Limit of Asphalt Content

Chongqing Advanced Technology Co., Ltd.
  • After-sales Service：Response in 12 Hours
  • Warranty：1 Year
  • Power Supply：AC (380±7%) V, 50Hz,
  • Rolling Times：(44±1) Times,Min
  • Crank Radius：(152±2) mm
  • Rubber Wheel Hardness：Ha60~Ha70

Base Info

  • Model NO.：AIC-0755
  • Rubber Wheel Loading Weight：(56.7±0.5) Kg
  • Diameter of Rubber Wheel：(76.5±1) mm
  • Width of Rubber Wheel：(26.0±1.0) mm
  • Test Mould：6.4mm and 12.7mm
  • Internal Size of Sand Frame：355mm×38mm×0.5mm
  • Steel Cover Plate：353mm×36mm×3mm
  • Dimension：1400mm×260mm×450mm
  • Weight：109kg
  • Color：White
  • Application：Asphalt and Asphalt Mixtures Testing
  • Transport Package：Plywood Case
  • Specification：Small
  • Trademark：AI
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：20 Sets,Month

Description

1Power supplyAC (380±7%) V, 50Hz,three-phase five-wire system2Rolling times(44±1) times/min3Crank radius(152±2) mm4Rubber wheel hardnessHA60~HA705Rubber wheel loading weight(56.7±0.5) kg,the total weight of the trolley when it is placed horizontally 6Rubber wheel sizediameter (76.5±1) mm, width (26.0±1.0) mm7Test mouldThere are two thicknesses of 6.4mm and 12.7mm, and the internal size is 50mm×380mm8Sand frameThe internal size is 355mm×38mm×0.5mm (length×width×height)9Steel cover plate353mm×36mm×3mm (length×width×height)10Dimension1400mm×260mm×450mm (length×width×height)11Weight109KG

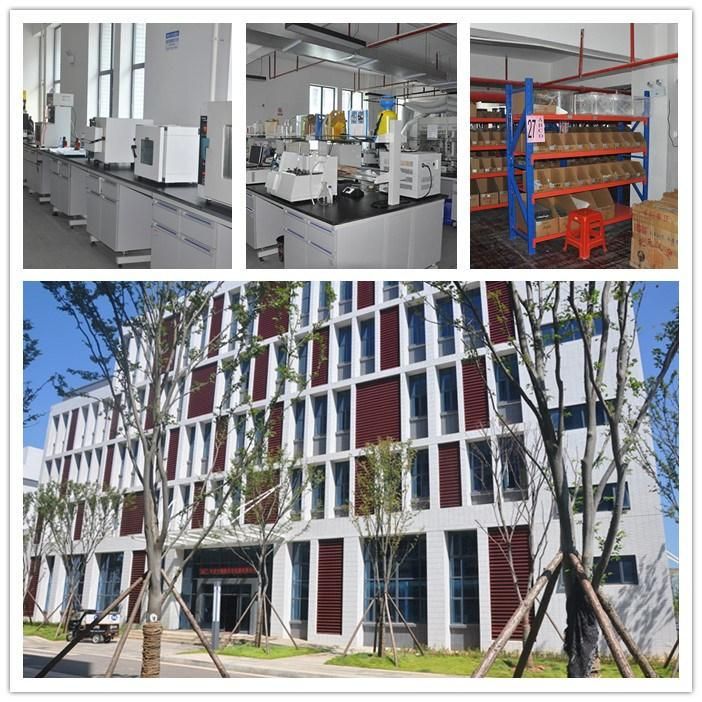

Factory overview

Load Wheel Rolling Tester for Controlling Upper Limit of Asphalt Content

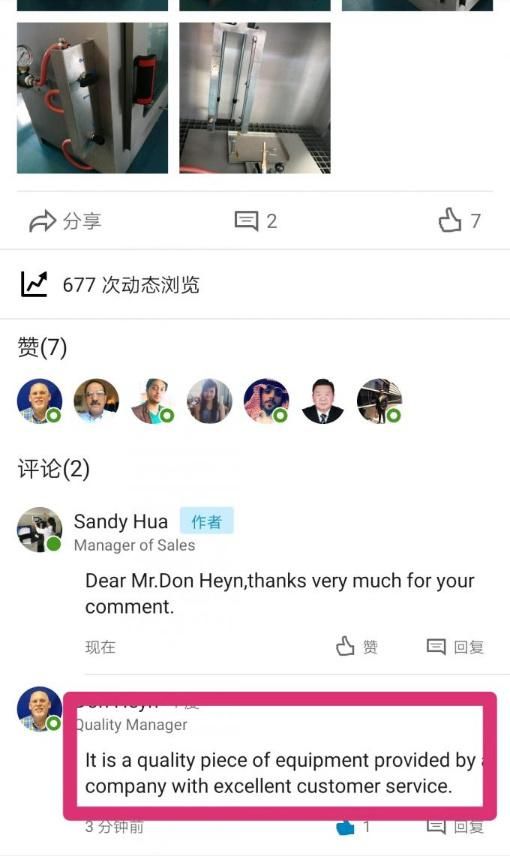

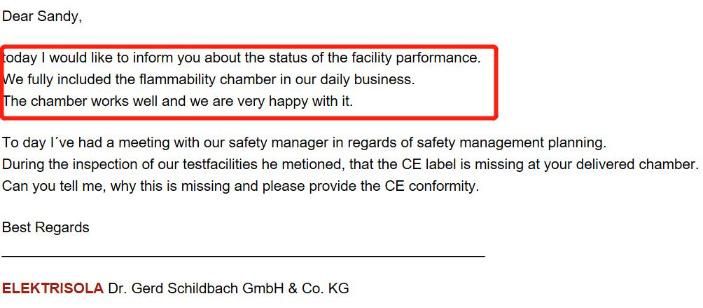

Customer Feedback

Germany
Load Wheel Rolling Tester for Controlling Upper Limit of Asphalt Content
USA
Load Wheel Rolling Tester for Controlling Upper Limit of Asphalt Content
FAQ
1.What's the delivery time?
About 15 days.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
