• Model NO.：YXJ-9200
• HS Code：9031809090
• Production Capacity：120 Set,Sets , Month

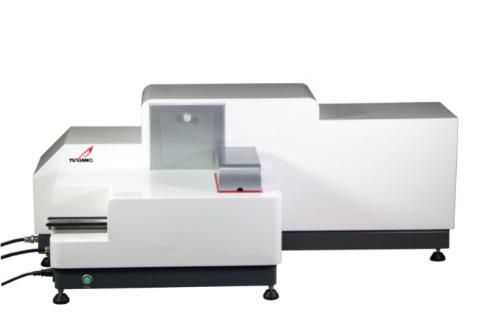

YXJ-9200 portable high-resolution laser particle size analyzer utilizers MIE laser scattering principle. This instrument can be used for size distribution analysis of powdery material with sizing from 0.1 to 300μm. Factory laboratories, colleges and universities, researching institutes can use YXJ-9200 for product checking. Scientific researching of portability applied by YXJ-9200 is a creative technical in the world.

Main performance and characteristics:

1. Advanced analyzing principle: The principle of accurate complete MIE scatter was put to use, patented technology of converging Fourier changing light path was invented and utilized for size analysis. All these efficiently improved the analyzing accuracy of the instrument which represents the highest update size analyzing level.

2. Superb distinguish ability: 0.1to 300 micron meter analyzing is devided into 2 grades: 0.1-40μm; 0.6-120 μm. There is no need to change parts when analyzing varies. Different from the other, YXJ-9200 has higher distinguished ability because it utilizes non-constraint free inversion software and the sizes blow 2μm are devided into 12 grades. The instrument can put out real analyzing result for various particle distribution.

3. High performance and convenient sample preparation: Characterized by its simple operation and handy ring, the ultra-sonic wet sample preparation dispersing system meets various particle demands.

4. Quick and simple analyzing operation.

5. Plentiful and intuitional output data liquid crystal display screen installed on the instrument front panel directly show the background spectrum, sample spectrum.

6. Great potentialities of communication function..

7. Authentic analyzing standard.

For more detail info, please feel free to visit our website or inquire us at any of your convenience.
