• Model NO.：AQMS-08
• Type：Laser Gas Analyzer
• Detection Parameters：Total Emission Concentration of Voc, Vocs, Tvoc,
• Detection Principle：Pid (British Alpha Sensor)
• Detection Method：Fixed Pumping Online Long-Term Continuous Detectio
• Measuring Range：0-500ppm(μ Mol,Mol)
• Discrimination Rate：0.1ppm
• Indication Error：≤ 10% F.S
• Repeatability：≤±0.5%
• Zero Drift：≤ 5% (F.S,Year)
• Range Drift：≤ 5% (F.S,Year)
• Response Time：≤15 Seconds (T90)
• Recovery Time：≤20 Seconds
• Explosion-Proof Mark of Detector：Exd II CT6
• Transport Package：Wooden Package
• Trademark：Scince
• Origin：Suzhou, China
• Production Capacity：50sets,Month

Basic Info.

Model NO. AQMS-08 Type Laser Gas Analyzer Detection Parameters Total Emission Concentration of Voc, Vocs, Tvoc, Detection Principle Pid (British Alpha Sensor) Detection Method Fixed Pumping Online Long-Term Continuous Detectio Measuring Range 0-500ppm(μ Mol/Mol) Discrimination Rate 0.1ppm Indication Error ≤ 10% F.S Repeatability ≤±0.5% Zero Drift ≤ 5% (F.S/Year) Range Drift ≤ 5% (F.S/Year) Response Time ≤15 Seconds (T90) Recovery Time ≤20 Seconds Explosion-Proof Mark of Detector Exd II CT6 Transport Package Wooden Package Trademark Scince Origin Suzhou, China Production Capacity 50sets/Month

Product Description

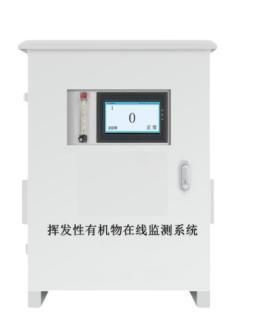

VOCs On-line Monitoring SystemProduct Profile
    AQMS-08 VOCs On-line Monitoring System is mainly used to monitor whether the emission standards of atmospheric pollutants stipulated by the state are met when volatile organic compounds are continuously discharged.
    According to the source of pollutants, the grid monitoring system of industrial park is established. The regional grid monitoring system adopts the unit grid management method, and according to the concept of "fixing the net, setting the responsibility according to the grid, setting the responsibility according to the people", the regional grid monitoring platform of "horizontal to the edge, vertical to the end" is established, and a number of intelligent environmental protection technologies are applied and integrated. On the basis of comprehensively mastering and analyzing the emission of pollution sources and meteorological factors, the model based on Gaussian algorithm is adopted for development. Real-time statistics of monitoring equipment data of each plant area and monitoring point, and analysis and prediction of the overall emission situation in the region according to the emission situation of each monitoring point and its meteorological conditions. The whole monitor of VOCs emission area is realized,The functions of pollutant diffusion trend estimation, emission source analysis, etc., combined with advanced technologies such as Internet of Things, intelligent acquisition system, geographic information system, dynamic chart system, etc., integrated, shared and developed, and established a comprehensive, refined, information-based and intelligent regional online monitoring platform to achieve comprehensive management of controlling unorganized emission of pollution sources and reducing air pollution. To provide reliable data information and scientific auxiliary management decisions for making energy saving and emission reduction plans.


Advantages
Adopting PID sensor, the response is sensitive and fast.
Safe operation, no need to use flammable and explosive gases such as hydrogen.
And is suitable for detect VOC gas in various industrial environments.
Built-in full Netcom DTU module, data can be transmitted to EPA.
Real-time test data display by curve.
Automatic unmanned operation of the whole system, simple operation, self-checking and error alarm functions.
Applications
Atmospheric monitoring in chemical plants, power plants, incineration stations, ports, sewage treatment plants and other places.
Technical Parameters

Detection parameters	Total emission concentration of VOC, VOCs, TVOC, non-methane total hydrocarbon, benzene series, etc
Detection principle	PID (British alpha sensor)
Detection method	Fixed pumping online long-term continuous detection
Measuring range	0-500PPM(μ mol/mol) (optional, range not listed can be customized)
Discrimination rate	0.1PPM
Indication error	≤ 10% F.S (actual concentration, higher accuracy requirements are determined according to sensor performance)
Repeatability	≤±0.5%
Zero drift	≤ 5% (f.s/year)
Range drift	≤ 5% (f.s/year)
Response time	≤15 seconds (T90)
Recovery time	≤20 seconds
Explosion-proof mark of detector	Exd II CT6
Protection grades	Tester IP66, whole machine IP54
Working temperature	-20ºC-+200ºC (customized for special requirements)
Working humidity	≤95%RH, no condensation (humidity > 90%RH, condensation can be equipped with filter)
Relative humidity	10%-95%RH, the instrument has built-in full temperature and humidity compensation function
Power supply source	AC220V

1. Are you a trading company or manufacturer?we are a professional tester manufacturer with 25 years of industry experience. Our factory is located in Suzhou, where is only 100 kilometers far away from Shanghai Hongqiao International Airport. It is pretty convenient for you to make a visit.
2. What is the L/T?
The lead time will be between15 and 30 days after deposit payment. If there is stock for the instrument you want, timely shipment will be arranged within 7 days.

3. What is your terms of payment?
Based on our sales policy, T/T 30% as deposit should be paid before order, and 70% balance payment should be completed before shipment. We will provide you with real photos or video of the instrument before balance payment.

4. What is your terms of delivery?
Available in EXW, FOB, CFR and CIF.

5. What is your packing for the tester?
Generally, packed with wooden case. We can do some adjustments in terms of your special requirement.

6. Can the mask tester be certified?
There is certification requirements for mask only, and there has no relevant certification requirements for mask tester, but a calibration report is required. we will provide a calibration report with a randomizer for our mask test instrument. The calibration report is valid for one year. After then, we can also support the corresponding calibration service for small fee.

7. Do you have after-sales service?
We can provide on-site installation and commissioning service for you, but you need to bear the travel expense of our engineer. The warranty period will be one year. Free replacement parts will be supplied during this period. Only accessories and corresponding shipping charges will be charged out of the warranty period.

8. Is there an English interface for your instrument?
Our instrument can be customized on the base of your demand. For example, both mask tester and filter material tester can be displayed in Chinese, English and Korean interfaces. The instruction manual is available in both Chinese and English.
