• Model NO.：TCTA
• Ambient Temperature：Operating 10°c to 35°c
• Display：Digital
• Color：White
• Delivery Time：About 40 Days
• Test Object：Wire and Cables
• Air Flow Range：0-3L,Min
• Accuracy：0.1L,Min
• Temperature Control Method：Pid
• Max.Temperature of Furnace：1200°c
• Air Drying Method：Silica Gel
• Function：Test pH Value and Conductivity in The Released Gas
• Transport Package：Plywood Case
• Specification：Stainless steel
• Trademark：AI
• Origin：China
• HS Code：9027809990
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. TCTA Ambient Temperature Operating 10°c to 35°c Display Digital Color White Delivery Time About 40 Days Test Object Wire and Cables Air Flow Range 0-3L/Min Accuracy 0.1L/Min Temperature Control Method Pid Max.Temperature of Furnace 1200°c Air Drying Method Silica Gel Function Test pH Value and Conductivity in The Released Gas Transport Package Plywood Case Specification Stainless steel Trademark AI Origin China HS Code 9027809990 Production Capacity 30 Sets/Month

Product Description

I.Introduction
Corrosion Test Apparatus is used to test the acidity of the gas that released during combustion from cable or optical cable components material.It is designed according to GB/T 17650 and IEC 60754.
The cable material is processed by prius tube furnace.By measuring the pH value and conductivity in the released gas, the acidity of the gas generated during the combustion of the cable material is determined, including the gas volume, pH concentration, and conductivity of the halogen acid.

II. Standard of Corrosion Test Apparatus
• IEC 60754-1 Ed. 2.0 b:1994
• IEC 60754-2 Ed. 1.0 b:1991
• BS EN 50305 9.2
• GB/T 17650

III.Main feature
1. The Corrosion Test Apparatus is designed with optimized structure, logical layout, and easy to operated.
2. All the fixtures are made of stainless steel.
3.The effective length of the tube-type furnace is 500 ~ 600mm, inner diameter is 40 ~ 60mm, with adjustable electric systems.
4. The Corrosion Test Apparatus is equipped with imported thermocouple from United States.
5. The size of the combustion boat is length 45 ~ 100mm, width 12 ~ 30mm, depth 5 ~ 10mm.
6. The electrical conductivity measuring range is 0.01uS / mm ~ 100uS / mm.
7. The control system using an electronic temperature control, intelligent control tube furnace temperature.
8. Halogen Acid Gases Test Apparatus is equipped with two gas collection bottles.
9. The size of the sample chamber is 1 liter.
10.The Corrosion Test Apparatus is equipped with a PH value and conductivity detector, with an electronic display and an electrode.
11.Air flow meter is equipped with silicon dioxide fire pipeline to prevent corrosion by the gas.
12. Activated carbon (air filter): filter air through a filter.
13.The silicone is used for drying air source.
14.Pyrex pipeline: Users can easily insert sample into the Prius tube to protect the pipeline from damage.
15. Combustion boat moving system: combustion boat moves automatic to achieve more intelligent test.
16. The mode switching: mode switch (two test methods to choose from, IEC 60754-1 & IEC 60754-2).
17. The temperature alarm system: control the furnace temperature against overheating.
18. Timer: IEC 60754-1 or IEC 60754-2 time measurement device.
19. Drawer:used to store parts of the box (such as conductivity meters, pH meter, etc.)
20.Temperature indicator: shows the furnace core temperature.
21. Permanent magnetic stirrer: The agitator is used to stir the combustion gases in distilled water.
22.Conductivity meter:An instrument which used to measure the combustion gas conductivity.


IV.Installation requirements of Corrosion Test Apparatus

Power supply	AC 220V, 50/60Hz, 20A
Size	1,500 (W) x 500 (D) x 600 (H) mm
Weight	76KG
Accessories	Computers, compressed gases, vacuum cleaner

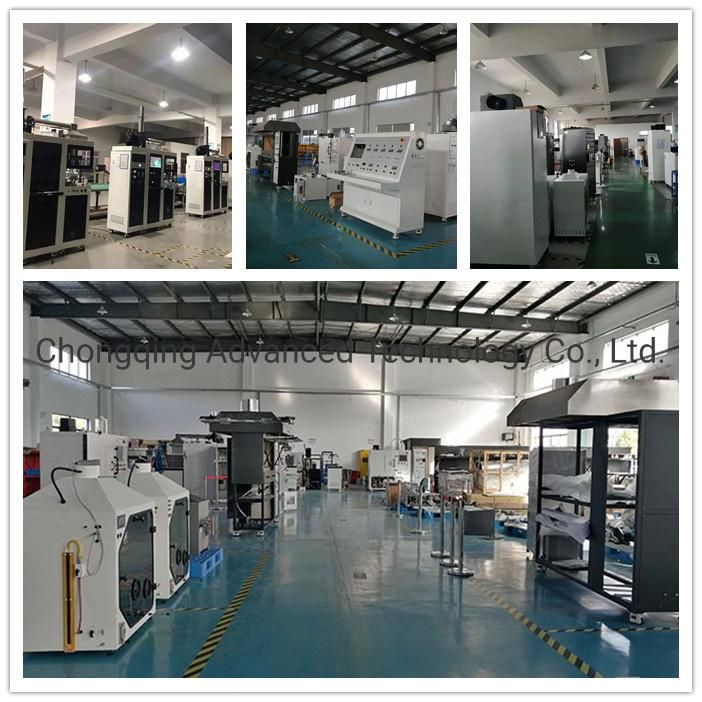

Factory overview

Customer Feedback

Germany

USA

Transporation

FAQ
1.What's the delivery time?
About 40 days.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
