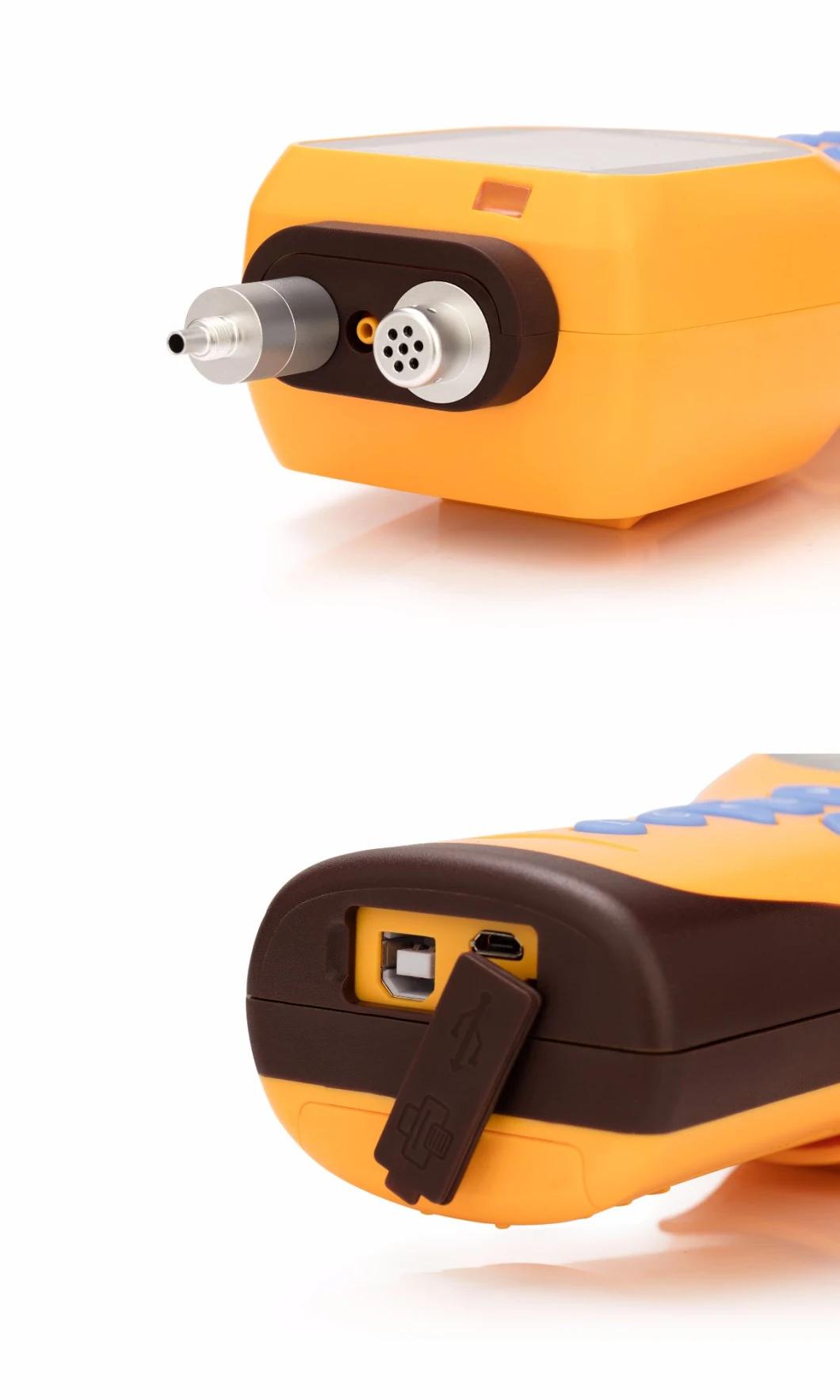

IP66 Portable Multi Gas Detector with Temperature and Humidity Detect Function

Shenzhen Korno Import & Export Co., Ltd.
  • Brand：Korno
  • Customized：Customized
  • Portable：Portable
  • Certification：CE, CPA, CMC, Cnex, ISO, OHSAS
  • Gas：up to 5 Gases(Customized)
  • Type：Electrochemical Gas Analyzer

Base Info

  • Model NO.：GT-1000
  • N.W：0.55kg
  • G.W：0.9kg
  • Screen Size：3.5inch
  • Explosion Proof Sign：Exdll CT4 (Ia)
  • IP Rating：IP66
  • Power：4000mA High Capacity Polymer Rechargeable Battery
  • Sampling：Pumping, Build-in Pump
  • Storage：Large Data Logger(100, 000 Groups)
  • Alarm Type：Audible and Visual Alarm
  • Case Material：ABC+PC
  • Transport Package：Size: 29*20*10cm
  • Specification：Product size: 25.5*8*6cm
  • Trademark：Korno or customized
  • Origin：China
  • HS Code：9027100010
  • Production Capacity：10000,Month

Description

255*80*60mm(L×W×H)
0.5 Kg(net weight)Operating Pressure:-30Kpa ~ 100KpaIP66 Portable Multi Gas Detector with Temperature and Humidity Detect Function



4) Sensor List: GasDetection RangeResolution:Combustible Gas(EX)0-100%LEL0.1%LELCarbon Monoxide(CO)0-100,500,1000,2000,5000,10000,40000ppm0.1ppm(0-1000ppm),1ppm(0-40000ppm)Hydrogen Sulfur(H2S)0-50,100,500,1000ppm0.01ppm(0-100ppm),0.1ppm(0-1000ppm)Ammonia(NH3)0-50,100,500,1000ppm0.01ppm(0-100ppm),0.1ppm(0-1000ppm)Oxygen(O2)0-5000,10000,30000ppm,5%,30%,100%VOL1ppm(0-30000ppm),0.01%VOL(0-100%VOL)Hydrogen(H2)0-500,1000,5000,20000,40000ppm0.1ppm(0-1000ppm),1ppm(0-40000ppm)Carbon Dioxide(CO2)0-2000,5000,10000,50000ppm,20%,50%,100%VOL1ppm(0-50000ppm),0.01%VOL(0-100%VOL)Phosphine(PH3)0-100,500,1000,2000ppm0.01ppm(0-100ppm),0.1ppm(0-1000ppm),1ppm(0-2000ppm) For more information,please contact us^ ^



5) Our Service:
1.All products and accessories have been 100% tested before shipping.
2.We provide 12-Months warranty for non-deliberate damage.
3.OEM & ODM are welcomed~
4.Life-long maintenance will be provided by our After-sale TechnicalSupport Department and we
   can also provide real-time guidance with phone or video chat.
5.You can feedback quality problems to us  within 7 days after you receive the goods,
   replacement  service could be offered in the next order once we confirmed.

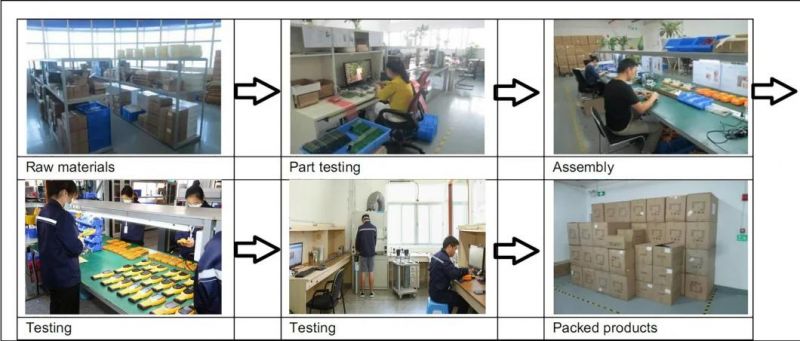

6) Company & Production Line:
IP66 Portable Multi Gas Detector with Temperature and Humidity Detect FunctionIP66 Portable Multi Gas Detector with Temperature and Humidity Detect Function
