• Model NO.：GT-WD1200
• Measuring Gas：Combustible, Toxic Gas & O2, CO2, Vocs
• Sensor Type：Smart Sensor Module
• Working Method：Natural Diffusion
• Working Voltage：DC24V±25%
• Signal Output：Two Relay Output for 4-20mA Type
• Ingress Protection：IP65
• Transport Package：Neutral Box
• Origin：China Mainland

Basic Info.

Model NO. GT-WD1200 Measuring Gas Combustible, Toxic Gas & O2, CO2, Vocs Sensor Type Smart Sensor Module Working Method Natural Diffusion Working Voltage DC24V±25% Signal Output Two Relay Output for 4-20mA Type Ingress Protection IP65 Transport Package Neutral Box Origin China Mainland

Product Description

Description
GT-WD1200 DC24V Wall Mounted 0-20ppm Cl2 Fixed Gas Detector is our new developed type of gas detector. It adopts high-quality gas sensitive element and microcontroller technology, and fully tested and calibrated ready for installation.

Applications
GT-WD1200 DC24V Wall Mounted 0-20ppm Cl2 Fixed Gas Detector offer a comprehensive selection of gas detection to meet diverse requirements of many industries and environments such as petroleum and petrochemical's oil refineries, metallurgy industries.

Features
SMART sensor module
Two relay output for 4-20mA type
Hart protocol optional

Technical Data
Working Method: Natural Diffusion
Working Voltage: DC24V±6V
Power Consumption: ≤3W
Response Time(t90): flammable gas≤30s, toxic gas≤60s
Working Temperature:
-40ºC~70ºC(flammable gas)
-20ºC~50ºC(toxic gas/oxygen)
Working Humidity: ≤95%RH(no dews)
Protection Grade: IP65
Output Signal: 4-20mA
Transmission Distance: ≤1000m
Sensor Life: 3 years for catalytic sensor, 2 years for electrochemical sensor(related to using environment)

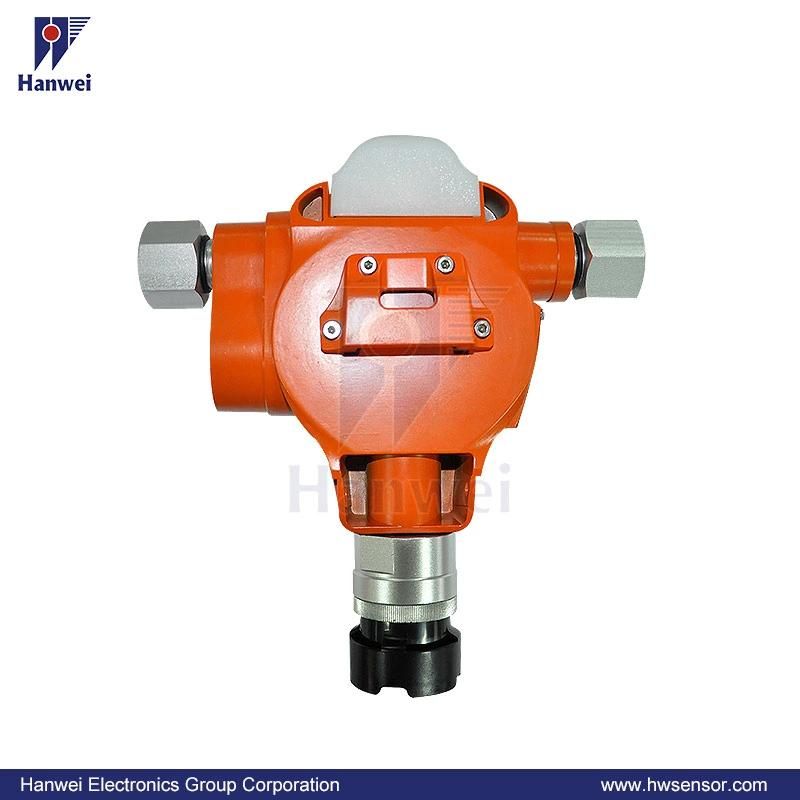

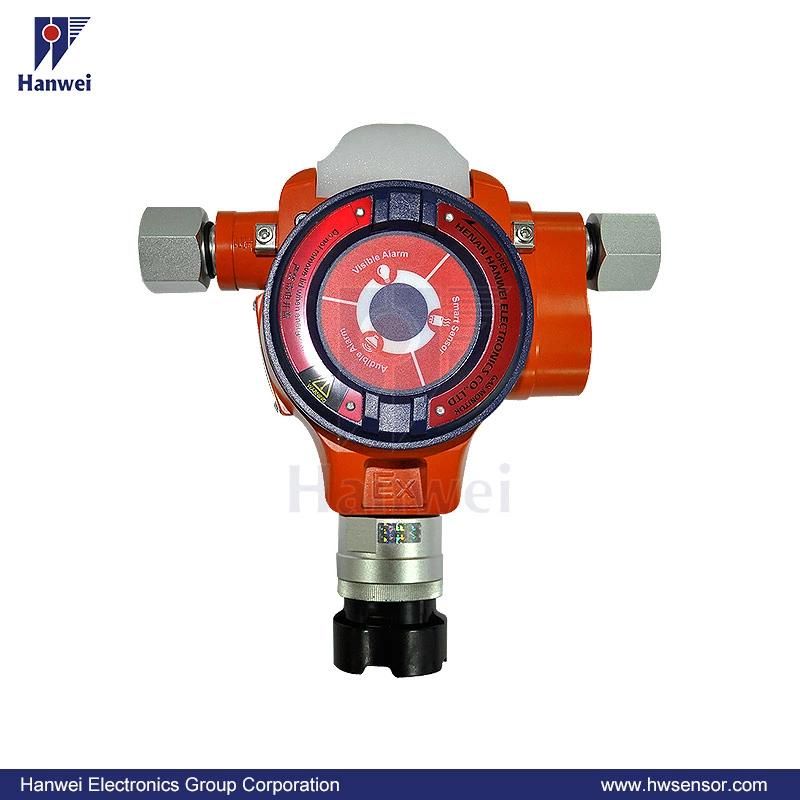

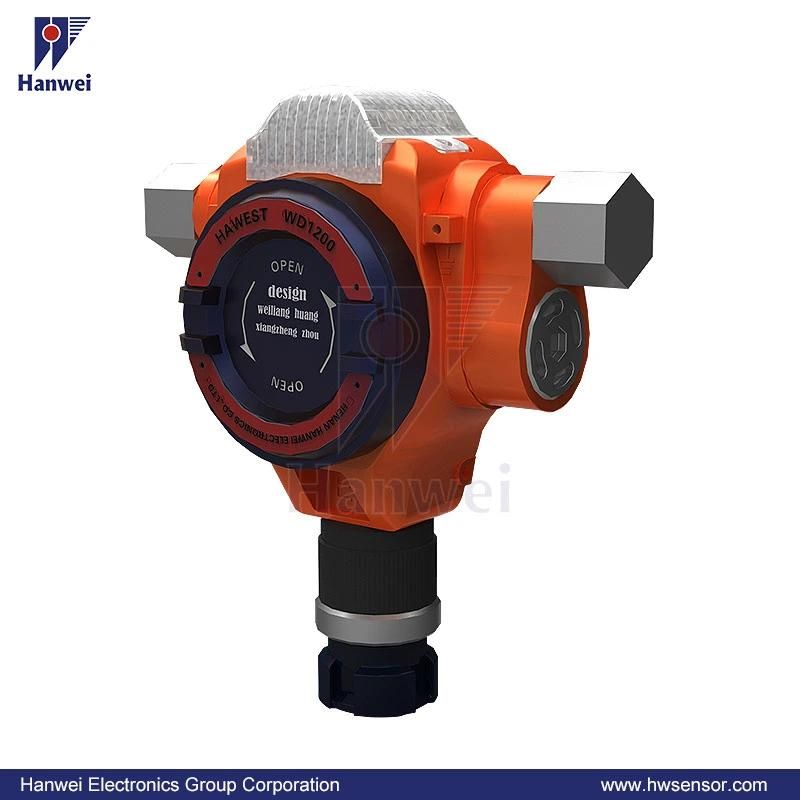

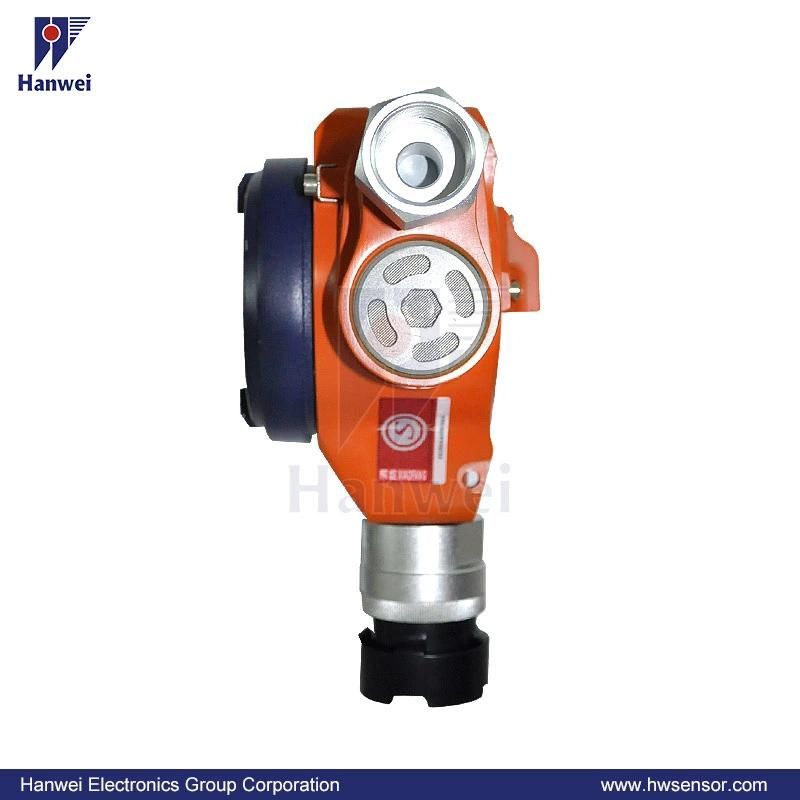

Product Pictures






FAQ:
Q1: Why do you choose our company?
A1: We are a professional manufacturer, We have seasoned engineers with 20 years' experience in gas detection field.  so we can offer products of the same quality at the best prices.

Q2: Can I have a sample order?
A2: The sample order to test are welcomed at the first time.

Q3: What certification do you have?
A3: CE, EN, BSI, UL, ISOD and etc.

Q4: How do I get price information?
A4: Sales representatives are responsible for providing detailed price information within 1 workday after get your inquiry.

Q5: If I order a large quantity, what's the best price?
A5: Please send the detailed enquiry to us, including item model number, quantity for each item, quality requirement, Logo and payment terms etc. We will make an accurate quotation to you at the earliest time.
