ASTM D877portable Transformer Oil Breakdown Voltage Tester (DYT-2)

Chongqing TOP Oil Purifier Co., Ltd.

Test Standard：IEC60156,Is6792,Bs5874,VDE0370-5,ASTM D877,ASTM D1
Size：460 Mm*380mm*360mm
Weight：38 Kg
Language：English
Model：Dyt-2
Transport Package：Wooden Case

Base Info

Model NO.：DYT-2
Specification：CE, SGS
Trademark：TOP
Origin：Chongqing, China
HS Code：9027
Production Capacity：100 Sets Per,Mouth

Description

Basic Info.

Model NO. DYT-2 Specification CE, SGS Trademark TOP Origin Chongqing, China HS Code 9027 Production Capacity 100 Sets Per/Mouth

Product Description

ASTM D877 newly advanced technology portable transformer oil breakdown voltage tester (DYT-2)

1 FEATURES

(1) AC220V±10% power supply input

(2) Output voltage:AC 0V~80KV

(3) Rate of voltage rise: 0.5kv/s±10%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%

(4) Max test times: 9

(5) Init wait times:0~999s

(6) Stir time: 0~999s

(7) Wait time: 0~999s

(8) Measurement accuracy: ±(1% of full scale + 2 digits) Resolution:0.1KV

(9) Temperature measurement:

Measurement range : 0ºC to 70ºC, or better

Temperature resolution : 1ºC, or better

Operating temperature : up to 45ºC

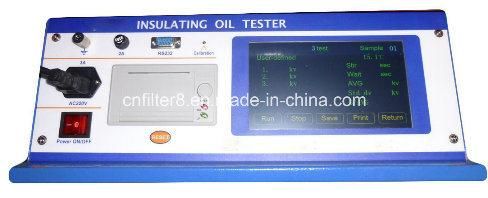

(10)7 inch colorful LCD with touch pad

(11)Oil test vessel temperature measurement unit

(12) Weight 38kg

(13) Size: 460 mm*380mm*360mm
ASTM D877portable Transformer Oil Breakdown Voltage Tester (DYT-2)

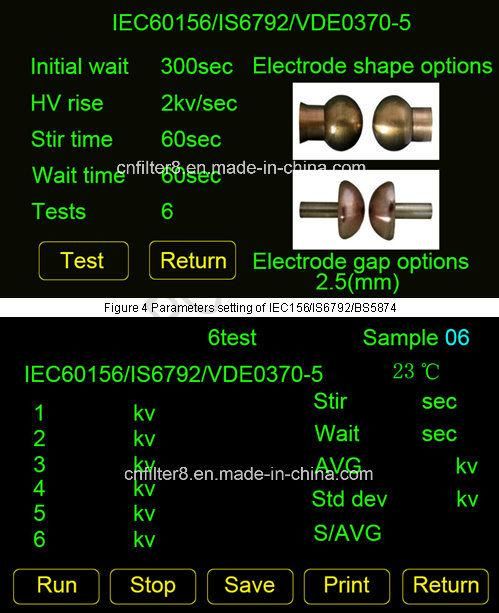

TEST OPTIONS

The main function of the tester is as follow:

1) IEC60156/IS6792/BS5874/VDE0370-5

2) User-defined

3) 5 minute test

4) ASTMD877

5) ASTMD1816

6)JIS C 2101-99(S)

7) Proof 'A'

8)Proof 'B'
ASTM D877portable Transformer Oil Breakdown Voltage Tester (DYT-2)

ACCESSORIES LIST

Name	Quantity	Memo
Insulating oil tester	1unit
Power line	1unit
Grounding line	1unit
Test vessel	1unit
Electrodes Mushroom, Flat and Spherical type	3pair
Feeler gauge 1mm,2mm,2.5mm,4mm	4units
Insulation cover	1pair
Stirrer	2unit
Insulation glue	1unit
High voltage column	1pair
USB-RS232 connection line	1unit
Thermal print paper	2units
Fuse(5A/3A)	2units/2units
Instruction manual	1unit
disk	1unit
Inspection report	1unit
Pass certificate	1unit
