Portable Multi Gas Analyzer with Audible and Visual Alarm

Shenzhen Korno Import & Export Co., Ltd.
  • Customized：Customized
  • Gas：Ex, Co, H2s, O2
  • N.W：0.35kg
  • G.W：0.7kg
  • Screen Size：2.4 Inch LCD HD Color Screen
  • Explosion Proof Sign：Exdll CT4 (Ia)

Base Info

  • Model NO.：GT-903-IV
  • Power：4000mA High Capacity Polymer Rechargeable Battery
  • Water Proof：IP65
  • Sampling：Pumping
  • Alarm Type：Audible and Visual Alarm
  • Storage：Large Data Logger(30, 800 Groups)
  • Transport Package：Size: 26*21*14cm
  • Specification：Product size: 21*8*7cm
  • Trademark：Korno or customized
  • Origin：China
  • HS Code：9027100090
  • Production Capacity：10000,Month

Description

Portable,EX,H2S,O2,CODetection Range:Please see the sensor listResolution:Please see the sensor listTemperature and  relative humidity:
(Optional)Temperature detection range:-40 ~ 120ºC
Humidity detection range:0-100%RHDetection pattern:Pumping, the flow rate is adjustable.Detection Accuracy:≤±3%F.SLinearity Error:≤±1%F.SReaction Time:≤20 S(T90)Zero drift:≤±1%(F.S/Year)Detection Method:Real-time detection mode, timing detection mode and cycle detection mode can be switch freelyStorage Method:Automatically saving and manually saving is available,
Up to 30,800 groups data ,user can view history data on the display.Explosion Proof Sign:Exdll CT4 (IA)Case material:ABS+PCIP rating:IP66Operating Temperature:-30 ~ 60ºC(-22~144ºF) Power:4000mA high capacity polymer rechargeable batteryOperating Humidity:≤90%RH,Non-condensingDimensions / Weight:180*88*55 mm(L×W×H)
0.5 Kg(net weight)Operating Pressure:-30Kpa ~ 100KpaStandard Accessories:-Portable aluminum Case
-User manual
-Certification
-USB charger+Data cable
-Calibration coverOptional Accessories:-Vapor filter
-Hose
-Sampling handle(stainless steel ,approx 60cm)

>>> Sesor list

GasDetection RangeResolution
Ammonia(NH3)0-50,100,500,1000,5000PPM0.01(0-100PPM),0.1PPM(0-1000PPM),1PPM(0-5000PPM)
Argon(Ar)0-10%,50%,100%VOL0.01%VOL


Acetylene(C2H2)0-1%,2%VOL0.01%VOL

Combustiable Gas (EX)0-100%LEL0.1%LEL

Carbon Dioxide(CO2)0-2000,5000,10000,50000PPM,20%,50%,100%VOL1PPM(0-50000PPM),0.01%VOL(0-100%VOL)
Chlorine(CL2)0-10,20,50,100,200,500,1000,2000,5000PPM0.01PPM(0-100PPM),0.1PPM(0-1000PPM),1PPM(0-5000PPM)

Chlorine Dioxide(CLO2)0-1,5,10,20,50,100,200,1000,2000,5000PPM 0.001PPM(0-10PPM),0.01PPM(0-100PPM),0.1PPM(0-1000PPM),1PPM(0-5000PPM)
Carbon Disulfide(CS2)0-50,100,500,1000,5000PPM0.01PPM(0-100PPM),0.1PPM(0-1000PPM),1PPM(0-5000PPM)


Ethylene(C2H4)0-10,50,100,200,500,1000,2000PPM,0-3%VOL 0.001PPM(0-10PPM),0.01PPM(0-100PPM),0.1PPM(0-1000PPM),1PPM(0-2000PPM),0.1%VOL(0-3%VOL)
Ethanol(C2H60)0-1%,5%VOL0.1%VOL


Formaldehyde(CH2O)0-10,20,50,100,500,1000PPM0.01PPM(0-100PPM),0.1PPM(0-1000PPM)
Fluorine Gas(F2)0-1,10PPM 0.001PPM(0-10PPM)
Hydrogen Sulfur(H2S)0-50,100,500,1000PPM0.01PPM(0-100PPM),0.1PPM(0-100PPM)
Hydrogen(H2)0-500,1000,5000,20000,40000PPM0.1PM(0-1000PPM),1PPM(0-40000PPM)

HC0-5000,10000,50000PPM,0-20%,50%,100%VOL1PPM(0-50000PPM),0.1%VOL(0-100%VOL)
Hydrogen Chloride(HCL)0-10,20,50,100,200,500,1000,2000,3000PPM 0.001PPM(0-10PPM),0.01PPM(0-100PPM),0.1PPM(0-1000PPM),1PPM(0-3000PPM)

Hydrogen Fluorine(HF)0-10,50PPM 0.001PPM(0-10PPM),0.01PPM(0-50PPM)
Hydrazine(N2H4)0-1,10,50,100PPM 0.001PPM(0-10PPM),0.01PPM(0-100PPM)


Methanol(CH4O)0-1%,5%VOL0.1%VOL




Nitrogen(N2)0-100%VOL0.01%VOL(0-99.99%VOL),0.001%VOL(0-99.999%VOL)

Nitrogen Dioxide(NO2)0-1,20,50,100,500,1000,2000,5000PPM 0.001PPM(0-1PPM),0.01PPM(0-100PPM),0.1PPM(0-1000PPM),1PPM(0-5000PPM)
NOX0-1000,2000,5000PPM0.1PPM(0-1000PPM) ,1PPM (0-5000PPM)
Oxygen(O2)0-5000,10000,30000PPM,5%,30%.100%VOL1PPM(0-30000PPM),0.01%VOL(0-100%VOL)
Ozone(O3)0-1,2,5,10,20,50,100,500,1000,2000,5000,10000,30000PPM 0.001PPM(0-1PPM),0.01PPM(0-100PPM),0.1PPM(0-1000PPM),1PPM(0-30000PPM)

Propane(C3H8)0-5000,10000,20000PPM,0-20%,50%,100%VOL 1PPM(0-20000PPM),0.01%VOL(0-100%VOL)

Proylene(C3H6)0-5000,10000,20000PPM1PPM (0-20000PPM)
Sulfur Hexafluoride(SF6)0-100,500,1000,2000,3000PPM0.01PPM(0-100PPM),0.1PPM(0-1000PPM),1PPM(0-3000PPM)
Sulphur Dioxide(SO2)0-1,20,50,100,500,1000,2000,5000,10000,40000,50000PPM0.001PPM(0-1PPM),0.01PPM(0-100PPM),0.1PPM(0-1000PPM),1PPM(0-50000PPM)

Tolune(C7H8)0-1000,2000,5000,10000PPM0.1PPM(0-1000PPM) ,1PPM (0-10000PPM)
TNT0-20,50PPM0.01PPM(0-50PPM)
Volatile Organic Compounds(VOC)0-2,10,50,100,200,500,1000,2000,5000,6000,10000PPM 0.001PPM(0-10PPM),0.01PPM(0-100PPM),0.1PPM(0-1000PPM),1PPM(0-10000PPM)

If you want to know more other Gas detector,please feel free contact us.

>>> Deteails

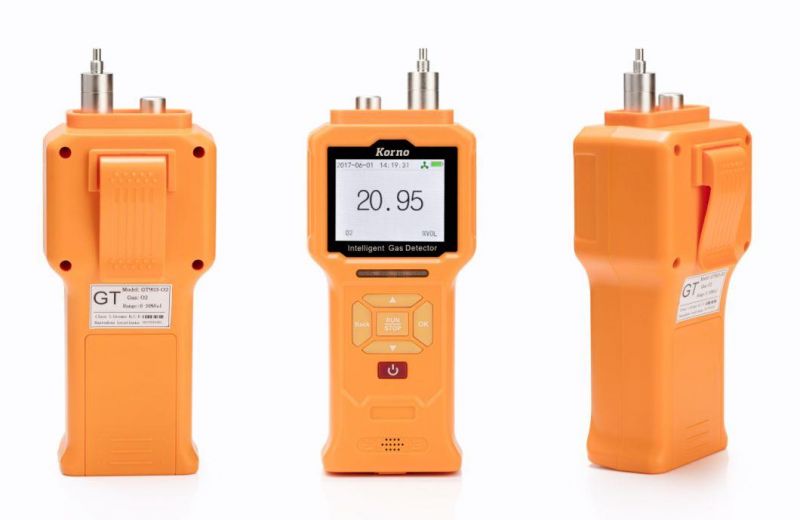

Portable Multi Gas Analyzer with Audible and Visual Alarm
