• Model NO.：AQMS-07
• Type：Laser Gas Analyzer
• Particle Parameters：Pm1.0,Pm2.5 ,Pm10,Tsp
• Flowconcentration Range：0-30(Mg,M^3)
• Monitoring Accuracy：0.1(μG,M^3)
• Sampling Period：6-9999 Seconds (Default 60s)
• Operational Environment：Atmosphere, Factory Boundary
• Communication Method：RS232,RS485
• Storage Capacity：> 530,000 Articles
• Power Supply Source：AC 220V
• Maximum Power：48W
• Dimension：800mm*260mm*600 mm
• Transport Package：Wooden Package
• Trademark：Scince
• Origin：Suzhou, China
• Production Capacity：50sets,Month

Basic Info.

Model NO. AQMS-07 Type Laser Gas Analyzer Particle Parameters Pm1.0/Pm2.5 /Pm10/Tsp Flowconcentration Range 0-30(Mg/M^3) Monitoring Accuracy 0.1(μG/M^3) Sampling Period 6-9999 Seconds (Default 60s) Operational Environment Atmosphere, Factory Boundary Communication Method RS232/RS485 Storage Capacity > 530,000 Articles Power Supply Source AC 220V Maximum Power 48W Dimension 800mm*260mm*600 mm Transport Package Wooden Package Trademark Scince Origin Suzhou, China Production Capacity 50sets/Month

Product Description

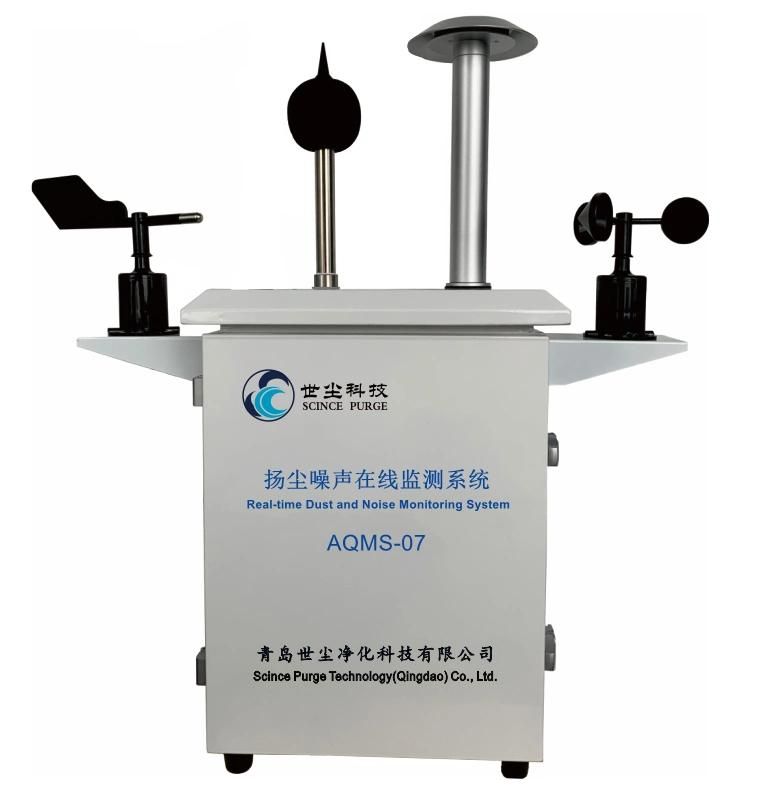

Real-time Dust and Noise Monitoring SystemProduct Profile
AQMS-07 Pump Suction Dust and Noise Monitoring System is suitable for the rapid measurement of inhalable particulate matter concentration in atmospheric environment, and is an on-line environmental monitoring product for realizing the functions of monitoring pollutants exceeding the standard. Each monitoring unit is arranged in layers, integrating particulate matter monitoring, temperature and humidity monitoring, wind speed, wind direction and atmospheric pressure monitoring, and can also be equipped with video acquisition and transmission. Through the Internet of Things and cloud computing technology, the real-time, remote and automatic monitoring of particulate matter concentration, meteorological parameters and the collection, superposition and capture of live video are realized.
This product can realize 24-hour long-time continuous automatic monitoring with high accuracy. Integrated structure, easy to install, strong and durable, and long outdoor running life.



Advantages
Optical particle size cutting can monitor PM1.0, PM2.5, PM10.0 and TSP simultaneously.
It has sheath gas protection and gas path protection functions.
Increase flow feedback, realize constant current control, ensure the stability of sampling quantity and improve accuracy.
Dynamic dehumidification, PID temperature precise control and heating dehumidification ensure data accuracy.
The data is stable, and it has automatic zero calibration and wide-span calibration devices and functions.
Data transmission through 4G, 5G, RS232, and RS485 etc.
If the network is disconnected for continuous transmission, the offline data can be automatically continuously transmitted to the monitoring platform.
Easy installation, maintenance, and disassembly.
Applications
Construction sites, industrial and mining enterprises, stockyards and docks, etc.
Technical Parameters

Monitoring parameters	PM1.0,PM2.5,PM10.0,TSP
Concentration range	0-30(mg/m³)
Monitoring accuracy	0.1(μg/m³)
Sampling period	6-9999 seconds (default 60s)
Operational environment	Atmosphere, factory boundary
Communication method	RS232/RS485
Storage capacity	> 530,000 articles
Power supply source	AC 220V
Maximum power	48W
Dimension	800mm*260mm*600 mm
Whole machine weight	12kg

1. Are you a trading company or manufacturer?we are a professional tester manufacturer with 25 years of industry experience. Our factory is located in Suzhou, where is only 100 kilometers far away from Shanghai Hongqiao International Airport. It is pretty convenient for you to make a visit.
2. What is the L/T?
The lead time will be between15 and 30 days after deposit payment. If there is stock for the instrument you want, timely shipment will be arranged within 7 days.

3. What is your terms of payment?
Based on our sales policy, T/T 30% as deposit should be paid before order, and 70% balance payment should be completed before shipment. We will provide you with real photos or video of the instrument before balance payment.

4. What is your terms of delivery?
Available in EXW, FOB, CFR and CIF.

5. What is your packing for the tester?
Generally, packed with wooden case. We can do some adjustments in terms of your special requirement.

6. Can the mask tester be certified?
There is certification requirements for mask only, and there has no relevant certification requirements for mask tester, but a calibration report is required. we will provide a calibration report with a randomizer for our mask test instrument. The calibration report is valid for one year. After then, we can also support the corresponding calibration service for small fee.

7. Do you have after-sales service?
We can provide on-site installation and commissioning service for you, but you need to bear the travel expense of our engineer. The warranty period will be one year. Free replacement parts will be supplied during this period. Only accessories and corresponding shipping charges will be charged out of the warranty period.

8. Is there an English interface for your instrument?
Our instrument can be customized on the base of your demand. For example, both mask tester and filter material tester can be displayed in Chinese, English and Korean interfaces. The instruction manual is available in both Chinese and English.
