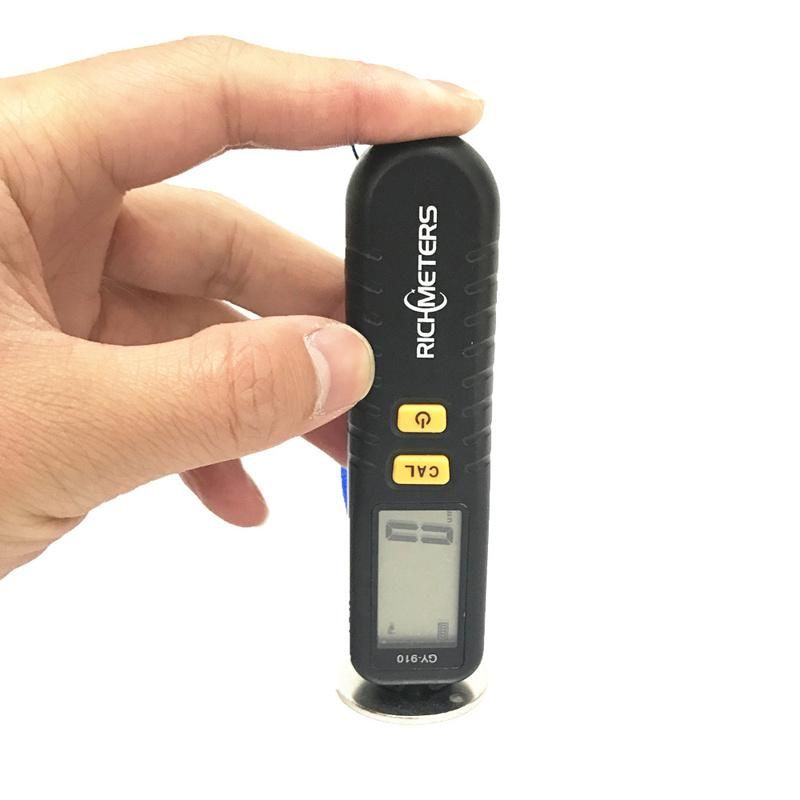

Gy910 Car Painting Coating Thickness Gauge Thickness Meter 1um Fe+Nfe

Nanjing Licheng Electronic Technology Co., Ltd.
  • Range：0-1300um
  • Accuracy：%3+2um
  • Cetificates：Ce,RoHS
  • Transport Package：Color Box
  • Specification：Resolution 1 micron
  • Trademark：RICHMETERS

Base Info

  • Model NO.：GY910
  • Origin：China

Description

Zero calibration, multi-points calibrationUnitum, mm, milsMin radius of concave curvature25mmMin radius of convexity curvature1.5mmMin radius of measurement area3mmMin thickness of base plate0.5mm0.3mmPower2 pieces of 1.5V AAA batteriesOperation conditionTemperature: 0-40ºC(32-103ºF)   Humidity: 20%-90%rh; no strong magnetic fieldStorage conditionTemperature: -20-70ºC(32-158ºF)Dimension117*30*22.5mmMaterial and weightABS, silica gel, 65g (2.23oz)
Gy910 Car Painting Coating Thickness Gauge Thickness Meter 1um Fe+NfeGy910 Car Painting Coating Thickness Gauge Thickness Meter 1um Fe+NfeGy910 Car Painting Coating Thickness Gauge Thickness Meter 1um Fe+Nfe

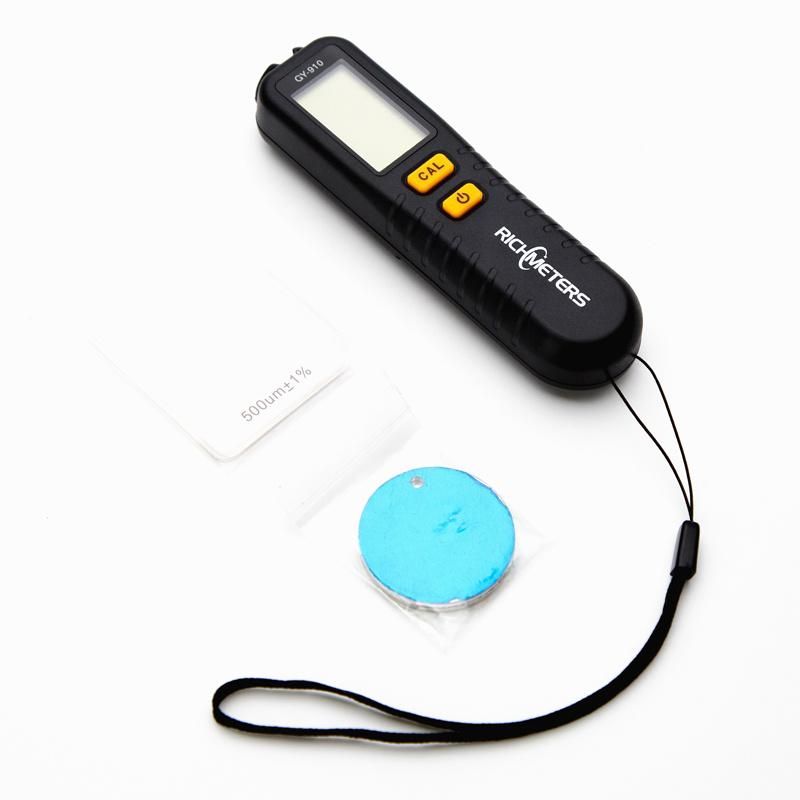

Package include:
Coating thickness Gauge
Manual (English+Russian)
One piece of iron base material
One piece of aluminum base material
One set of calibration film
(50um, 100um, 250um, 500um, 1,000um)
One hand rope
One set of carton box
