• Flue Gas Pressure：-20kpa - +20kpa
• Flue Gas Flow Rate：Less Than 5m,S
• Probe Material：304 Stainless Steel, 316 Stainless Steel
• Diversion Tube Material：2520, Gh3039, Silicon Carbide, Corundum Tube
• Transport Package：Standard Export Wooden Box Packaging
• Specification：215*145*260 (W*H*D)
• Trademark：CYKY
• Origin：Zhengzhou, China
• HS Code：8411820000
• Production Capacity：100pieces,Month

Basic Info.

Flue Gas Pressure -20kpa - +20kpa Flue Gas Flow Rate Less Than 5m/S Probe Material 304 Stainless Steel, 316 Stainless Steel Diversion Tube Material 2520, Gh3039, Silicon Carbide, Corundum Tube Transport Package Standard Export Wooden Box Packaging Specification 215*145*260 (W*H*D) Trademark CYKY Origin Zhengzhou, China HS Code 8411820000 Production Capacity 100pieces/Month

Product Description

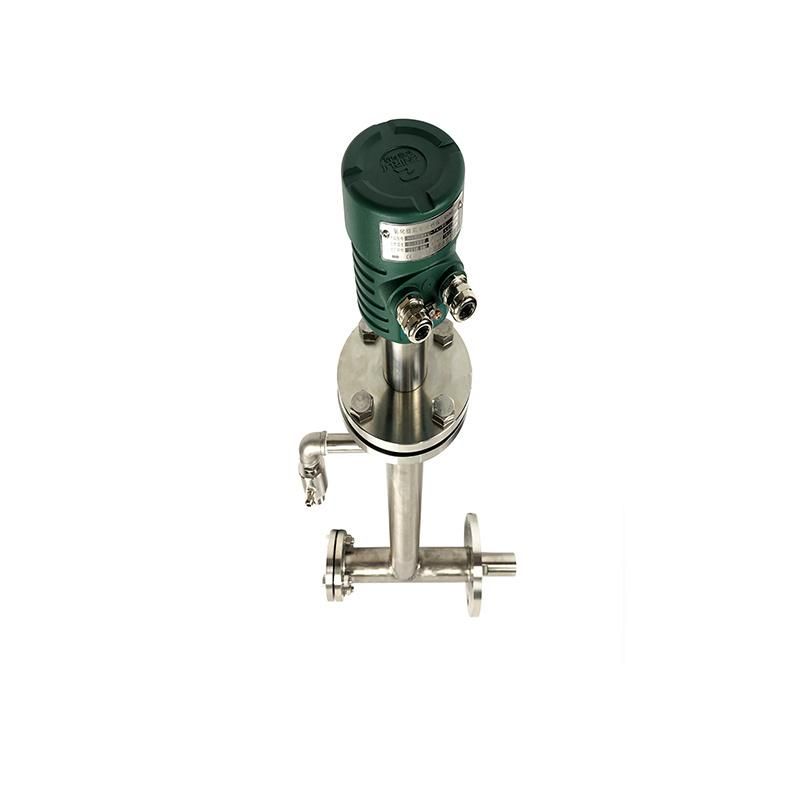

High-Temperature Extraction Sampling Type Zirconia Oxygen Analyzer

Introduction of Zirconia Oxygen Analyzer:
High-temperature extraction sampling type-zirconia oxygen analyzer-zirconia probe is suitable for flue gas temperature 0-1300ºC, flue gas flow rate is less than 5M/s, when the flue gas pressure is negative pressure, select the extraction sampling type (requires compression) Air as air source, pressure 0.05-0.5Mpa; vacuum generator); flue gas pressure is positive pressure, flue gas flow rate is less than 5M/s, then choose positive pressure self-spray sampling type (no need for compressed air and vacuum generator) .

Technical parameters of Zirconia Oxygen Analyzer:

Use flue gas temperature	0-1300ºC
Air source pressure	0.05Mpa--0.5Mpa, adjust the air pressure according to the site conditions, to ensure that the temperature of the gas outlet of the gas ejected by the vacuum generator is not too high (usually less than 200 ºC).
Air source connection diameter	6mm
Flue gas pressure	-20KPa - +20KPa
Flue gas flow rate	less than 5M/s
Probe material	304 stainless steel, 316 stainless steel
Diversion tube material	2520, GH3039, silicon carbide, corundum tube
Flange specifications	outer diameter 155mm, screw hole spacing 125mm, other specifications are optional

Specifications:

Shape	Dimensions (mm)	Hole size (H×W) mm
Horizontal (H)	160×80×110	(76+1)×(152+1)
Vertical (S)	80×160×110	(152+1)×(76+1)
Wall-mounted (G)	220×170×75 (H×W×Thickness)

Related photos of Zirconia Oxygen Analyzer:

Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.

We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.

Q. Are you a manufacturer or a trading company?

A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.

Q. How is your company's product after-sales service system?

A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.

Q. How long is your delivery time? If I want to customize the instrument, how long does it take?

A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.

Q. Our country's power supply and plug are different. How do you solve it?

A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.

Q. How to pay?

A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.

Q. How is the package of goods? Delivery methods?

A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.

More questions, please contact customer service.
