Four Ball Ep Test Machine (ASTM D2596) for Lubricating Grease Testing
Chongqing Advanced Technology Co., Ltd.- After-sales Service:12 Months
- Warranty:1 Year
- Display:LCD
- Appliance:Petrochemical
- Portable:Non Portable
- Certification:ISO9001
Base Info
- Model NO.:AIC-2783
- Type:Grease Testing
- Test Standard:ASTM D2596,ASTM D2266,ASTM D 2783,ASTM D4172
- Temperature Range:Ambient~250ºC
- Test Force:10000n
- Motor Power:2.2kw
- Dimension:1300*490*1220mm
- Temperature Control Range:+_3degrees Celsius
- Color:White
- Below 4% of Test Force,Indication Error:+_5n
- Friction:200n
- Total Power:1000 W
- Rotation Speed:300~1800r,Min
- Sample Quantity:10ml
- Diameter of Steel Ball:12.7
- Timing Range:1s~9999min
- Wear Spots Measuring Range:0~10mm
- Transport Package:Plywood Case
- Specification:Big
- Trademark:AI
- Origin:China
- HS Code:9027809990
- Production Capacity:20 Sets,Month
Description
Basic Info.
Model NO. AIC-2783 Type Grease Testing Test Standard ASTM D2596,ASTM D2266,ASTM D 2783,ASTM D4172 Temperature Range Ambient~250ºC Test Force 10000n Motor Power 2.2kw Dimension 1300*490*1220mm Temperature Control Range +_3degrees Celsius Color White Below 4% of Test Force,Indication Error +_5n Friction 200n Total Power 1000 W Rotation Speed 300~1800r/Min Sample Quantity 10ml Diameter of Steel Ball 12.7 Timing Range 1s~9999min Wear Spots Measuring Range 0~10mm Transport Package Plywood Case Specification Big Trademark AI Origin China HS Code 9027809990 Production Capacity 20 Sets/MonthProduct Description
IntroductionThis four ball EP test machine uses four Ф12.7mm standard steel balls evaluate the load-bearing capacity and anti-wear performanceof lubricants (including oil film strength PB, sintering load PD, comprehensive wear value ZMZ, Long-term wear D and other indexes).The influence of temperature on the lubricating performance of lubricants can also be measured. Main feature1.The 4 ball EP test machine adopts double floating bearing technology, no-clearance guiding technology and buffer cross-balancing technology to ensure the precision of real-time tracking measurement of test force and friction force.
2.The main shaft is driven by a branded servo motor, and the related transmission components are also imported precision bearings.
3.Using independent embedded industrial controller, industrial metal touch screen, and collecting independent analysis modules, which can effectively guarantee the effect of the equipment on the performance of the control part when the equipment is high-speed or the oil film is ruptured and violently vibrated.
4.This four ball EP test machine is convenient to realize the capture of the wear scar, the measurement and analysis of the friction surface profile, and directly save the wear spot images.
5.The test software can establish professional test programs according to different standards, and can also judge the Pb value according to the size of the wear scar, and has the function of saving and exporting data tables.
6.Large screen touch operation, real-time dynamic collection, professional data processing.
7.The expandable friction pair of the spindle meets a variety of related standards.
8.Long guide shaft, double bearing support, accurate test force, stable and reliable.
9.Special weight stop groove to prevent weight accidental falling off and causing damage.
10.3 million digital CCD probe pixels is equipped with the 4 ball EP test machine.
Technical specifications
Model | AIC-2783 four ball EP test machine |
Applicable standard | GB/T3142,GB/T12583,SH/T0189,SH/T0202,SH/T0204; ASTM D2596,ASTM D2266,ASTM D 2783,ASTM D4172 |
Test force | 10000N |
Below 4% of test force,indication error | ±5N |
Above 4% of test force,the relative error of the indicated value | ±1% |
Friction | 200N |
Temperature range | Ambient~250ºC |
Temperature control range | ±3ºC |
Range of rotation | 300~1800r/min |
Accuracy of rotation | <15r/min |
Oil volume for test | 10ml |
Diameter of steel ball | φ12.7 |
Motor power | 2.2kW |
Time display and control range | 1S~9999min |
Wear spots measurement software | Automatically capture wear spots, save and measure the average |
Microscope magnification | 25× 200 |
Wear spots measuring range | 0~10mm |
Wear spots measuring accuracy | 0.001mm |
Test force loading method | Front weight loading |
Force retention mechanism | Self-balancing without clearance guide |
The relative error of the displayed value of friction | ≤±2% |
Wear scar measurement microscope | Electronic measuring system |
Dimension | 1300×490×1220(mm) |
Accessories List
No. | Name | Specifications | Quantity |
1 | Four Ball EP Test Machine | 1 Set | |
2 | Normal temperature oil box | 1 PC | |
3 | High temperature oil box | Including heater,platinum resistance | 1 PC |
4 | Test force weight | 1 PC | |
5 | Mouse | 1 PC | |
6 | Friction sensor 100N | 1 PC | |
7 | Spring chuck | 2 PCS | |
8 | Special steel ball | Ф12.7 | 200 PCS |
9 | Top ball device | 1 Set | |
10 | Power cable | 1 Set | |
11 | Damping pad iron (Anchor nut) | 4 Sets | |
12 | Wear scar video measuring instrument | 1 Set | |
13 | Tool box | 1 PC | |
14 | Stainless steel medium waist plate | 1 PC | |
15 | Stainless steel small waist plate | 1 PC | |
16 | Square wrench | 1 PC | |
17 | Cover head socket wrench | 1 PC | |
18 | Steel ball tweezers | 1 PC | |
19 | Hammer | 1 PC | |
20 | Oil box pressing ring lifting rod | 1 PC | |
21 | Lifting screw | 4 PC | |
22 | Hair dryer | 1 PC | |
23 | User manual | 1 Copy |

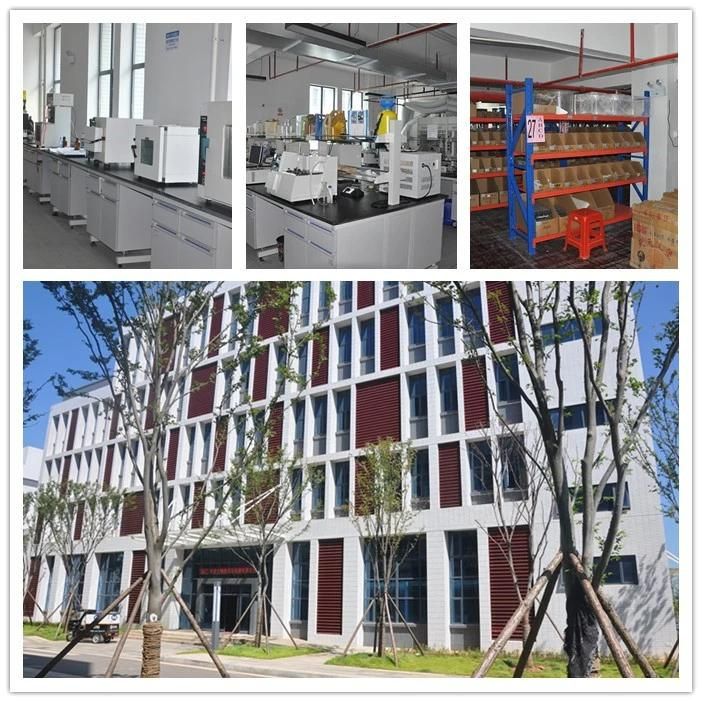

Factory overview

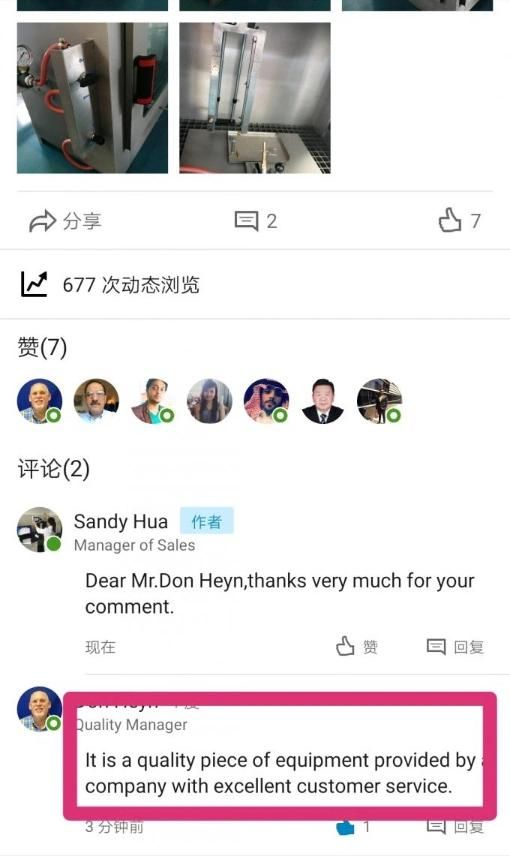

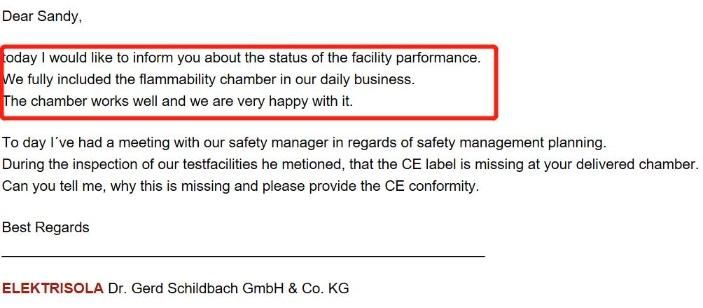

Customer Feedback
