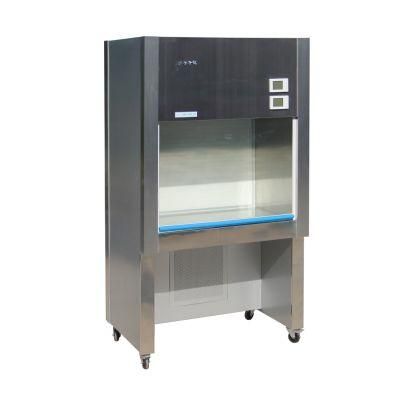

SW-CJ-1D Single-person single-side (vertical air) clean bench
TIME GROUP INC.- Sample Type：Solidity
- Processing Method：Dry
- Warranty：1 Year
- Environment：Normal Pressure and Temperature
- Display：Digital Display
- Performance：manual
Base Info
- Model NO.：SW-CJ-1D Single-person single-side (vertical air)
- Power Supply：220V
- Weight：0-50kg
- Certification：CE, UL
- Customized：Non-Customized
- Transport Package：Wooden Case
- Specification：ISO, ASTM
- Trademark：TIME
- Origin：China
- HS Code：8090
- Production Capacity：500
Description
Basic Info.
Model NO. SW-CJ-1D Single-person single-side (vertical air) Power Supply 220V Weight 0-50kg Certification CE, UL Customized Non-Customized Transport Package Wooden Case Specification ISO, ASTM Trademark TIME Origin China HS Code 8090 Production Capacity 500Product Description
It is widely used in medicine, pharmacy, biological & chemical experiment, electron, precise apparatus, instrument and so on.
Characteristics
This is a kind of new unidirectional air flow clean bench designed and made with international advanced technology, adopting fan system with air volume adjustable and matched with movable door free to locate. Contact switch adjusts voltage to keep wind speed in working area in ideal state all the time.
Main characters
1,Equipped with spring up/down movable door in the front and back of work bench, flexible and convenient to locate,air insulation design to avoid cross pollution inside and outside
2,Contact switch adjusts voltage to keep wind speed in working area in ideal state all the time.
3 Operate with LED panel.
4 The material of the work area is 304 stainless steel.
| No. Index/Model | SW-CJ-1D single-person single-side (vertical air supply) clean bench |
| Cleaning level | Grade 100(209E U.S. Federal) |
| Several colonies | ≤0.5per utensil.hour(90mmutensil) |
| The average wind speed | 0.25~0.45m/s(Speed two-speed) |
| Noise | ≤62dB |
| Power | AC, single 220 V/50Hz |
| Illumination | ≥300LX |
| Half ventilation peak value | ≤ 3μm(XYZ direction) |
| Max. power consumption | 300W |
| Weight | <85Kg |
| Dimension of working area(W1×D1×H1) | 700×490×515mm |
| Overall dimension W*D*H | 855×550×1600mm |
| Efficient filter specifications and quantities | 695×460×38×1 |
| Specification and number of fluorescent lamp or UV lamp of ultraviolet lights | 8w× 1 / 10w ×1 |
| Suited number | Single Single |
