• Model NO.：RP-K6
• Operating Mode：Keyboard
• Heating Mode：Optionali
• Off Mode：Manual
• Condition：New
• Power Supply：AC220V, 50Hz
• Power(W)：<40W
• Dimension(L*W*H)：380mm×200mm×180mm
• Weight：About 6kg
• Transport Package：Standard Export Wooden Case
• Specification：ISO,CE
• Trademark：TOP
• Origin：Chongqing, China
• HS Code：9027809900
• Production Capacity：100 Sets Per,Mouth

Basic Info.

Model NO. RP-K6 Operating Mode Keyboard Heating Mode Optionali Off Mode Manual Condition New Power Supply AC220V, 50Hz Power(W) <40W Dimension(L*W*H) 380mm×200mm×180mm Weight About 6kg Transport Package Standard Export Wooden Case Specification ISO/CE Trademark TOP Origin Chongqing, China HS Code 9027809900 Production Capacity 100 Sets Per/Mouth

Product Description

Main features: 1.no need installation, debugging, it can be used after opening the packing. 2.no need training, simple operation, eliminating the tedious use of steps; 3.short measurement time, high work efficiency; 4.uniform heating, stable performance, accurate test; 5.small size, light weight; 6.automatic measurement, measurement alarm reminder completion, the measurement process without care; 7.widely used for the determination of moisture in various industries; 8.Germany imported sensors make the instrument test effect more outstanding and accurate; 9.The unique windshield design makes the instrument weighing system more stable; 10.The water content and solid content of the sample can be converted at the same time; 11.the heating chamber uses pure stainless steel chamber cover, high temperature, easy to clean. 12.standard RS-232 interface to achieve two-way communication, you can connect the printer.
Working principle: The traditional moisture measurement is generally using the oven drying method. It takes two or three or four hours for a sample to be tested. It is also necessary to calculate the moisture content of the sample by weighing and manually calculating the balance. The inefficiency of the moisture measurement by the oven method cannot be adapted to the high-paced business production needs. RP-K Series Moisture Analyzer is a newly developed high-efficiency moisture measuring instrument. It adopts a high-efficiency drying heater-high quality circular halogen lamp to rapidly and evenly heat the sample. The moisture of the sample is continuous. It is dried. Throughout the measurement process, the instrument automatically displays the measurement results in real time: sample weight, moisture content, solid content, measurement time, and heating temperature. RP-K series moisture analyzer applies the principle of international oven drying method. The measurement results are in good agreement with the moisture determination by the oven method, and the working efficiency is much higher than that of the oven method. Using the RP-K Series Moisture Analyzer, the general sample can be measured in just a few minutes, so it is well received and appreciated by users.
Operation steps: RP-K Series Moisture Analyzer is a high-tech moisture measurement instrument. The measurement data is very accurate. It is extremely simple to use and requires no special training. The steps are as follows: First, place the sample that needs to be tested into the sample pan evenly, then cover with a heating mantle, and finally press the "Start" button. The rest of the work is done automatically by the instrument. After the measurement is completed, the instrument will automatically alarm and the measurement result will be locked on the LCD screen. Application scope: RP-K series moisture analyzer is applied to all industries that need to measure moisture quickly, as long as it is granular, powdery, flake-like, non-volatile liquid can be measured, such as: food, chemical, pharmaceutical, plastic materials, rubber, Tobacco, tea, textiles, meat, food, starch, feed, coal, sand, sewage sludge, dairy, etc. RP-K series moisture analyzer is the best choice for the production process and laboratory moisture measuring instruments.
Technical parameters: Water content determination range: 0.01%-100% Solid content determination range: 100%-0.01% Maximum weighing: 110g Weighing accuracy: 0.005g Water content readability: 0.01% Heating source: 400W halogen lamp, service life 5000 hours Heating temperature: 40-200°C Display content: moisture content, solid content, time, temperature, weight Measurement method: standard, automatic, timed, manual Display mode: with backlight LCD display Load cell: imported from Germany to ensure measurement accuracy Temperature Sensor: High Precision PT100 Platinum Thermal Resistance Power supply: voltage 220v±10% 50HZ±1HZ
Weighing plate size: diameter 90mm Working environment temperature: 5°C-35°C best Dimensions: 380mm×200mm×180mm Net weight: 5.8kg

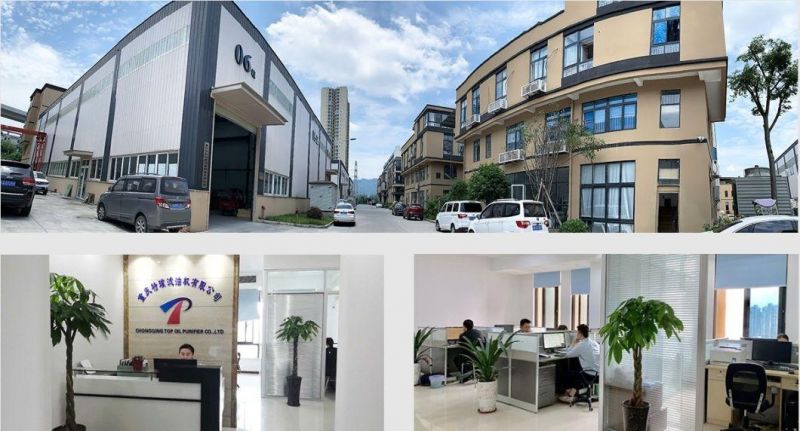

Our Company
