• Model NO.：YMJ-B
• Resolution：0.01cm2
• Measuringlength：Less Than 1000mm
• Measuringwidth：Less Than 160mm
• Thickness：Less Than 8mm
• Datastorage：More Than 1000groups
• Transport Package：Standard Sea Freight Package
• Specification：38*20*13.5cm 1.7kg
• Origin：Zhejiang
• HS Code：9031809090
• Production Capacity：500PCS ,Month

Brief Introduction

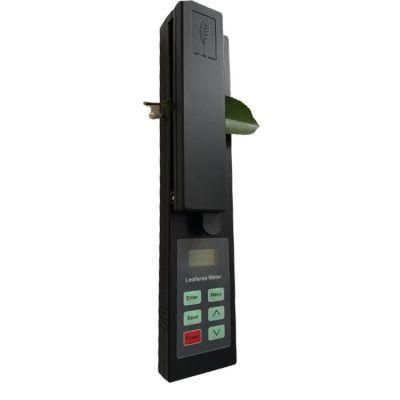

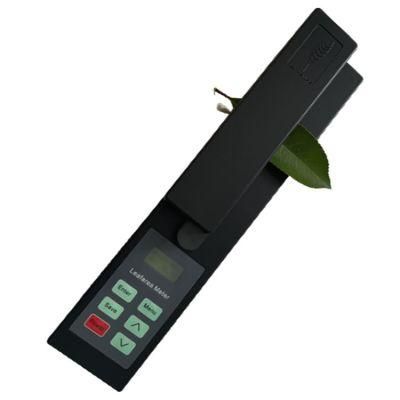

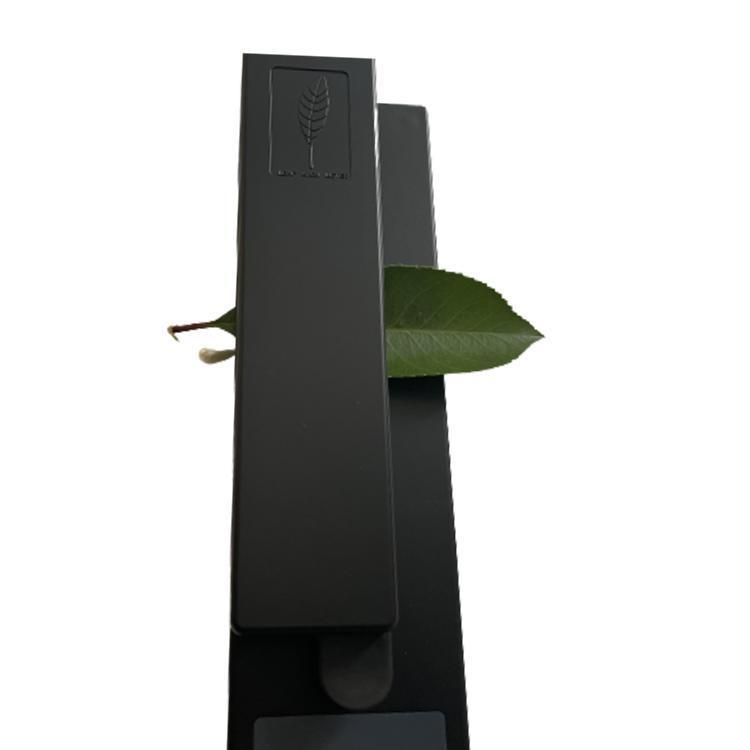

Portable Leaf Area Meter is a portable instrument for non-destructive leaf area measurements. This handheld meter can measure the leaf area, average area, length, width, perimeter and ratio of length and width. The measured data can be saved by the inside memory and upload by USB.

Technical Parameters

• Test unit: millimeter, square centimeter
• Precision: ±2%
• Resolution: 0.01cm²
• Measuring Leaf Length: ≤1000mm
• Measuring Leaf Width: ≤160mm
• Thickness: ≤8mm
• Data capacity: ≥1000 Groups

The Function Difference

YMJ-A : Without computer interface
YMJ-B : RS-232 connects meter to PC, data can be converted to excel format can be printed.
