• Transport Package：Customized
• Specification：D32*3, D10*1, 25.4*2
• Trademark：ICC
• Origin：Qinhuangdao
• HS Code：9001909090
• Production Capacity：5000 Pieces,Month

Basic Info.

Transport Package Customized Specification D32*3, D10*1, 25.4*2 Trademark ICC Origin Qinhuangdao HS Code 9001909090 Production Capacity 5000 Pieces/Month

Product Description

1. BAF2 MATERIAL

MgF2 (Magesium Flouride is transparent over a extremely wide range of wavelengths .windows, lenses ,and prisms made of this materials can be used over the entire range of wavelengths from 0.12μm(vacuum ultraviolet ) to 8.0μm (infrared). High quality synthetic VUV grade MgF2 is quite expensive. Low grade MgF2 is sometimes used in the infrared but it is inferior to CaF2. MgF2 is tough and works and polishes well, but it is slightly birefringent and should be cut with the optic axis perpendicular to the plane of the window or lens.

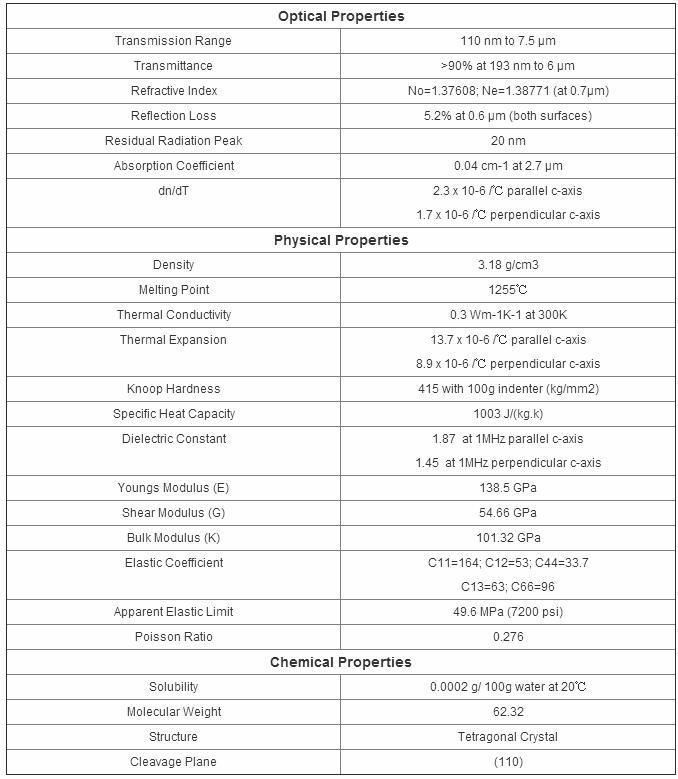

2. Properties

3. ICC's Ability

Grade: EUV,UV,IR

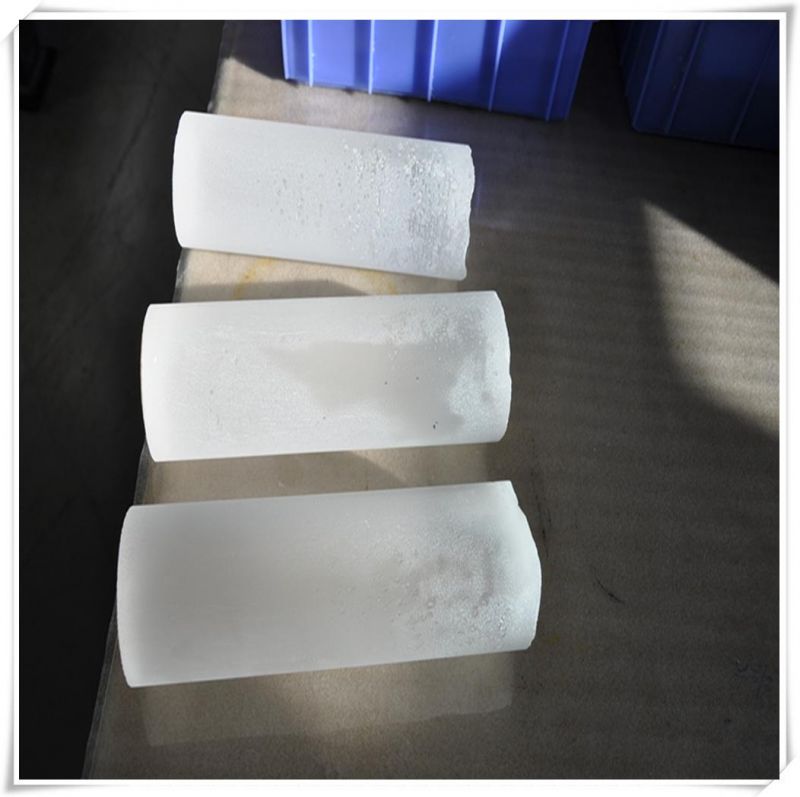

rod: D3.0-200mm*length180-150mm;
ignot: D100-150mm*length60-40mm

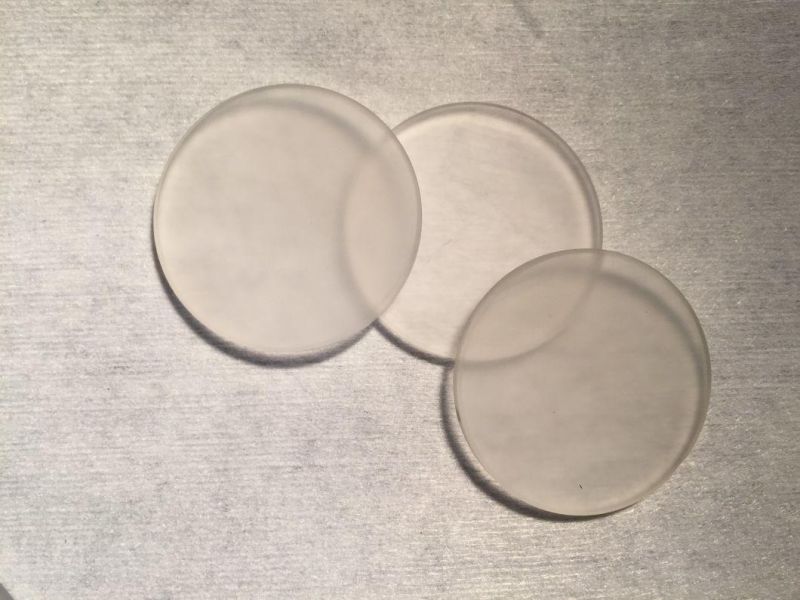

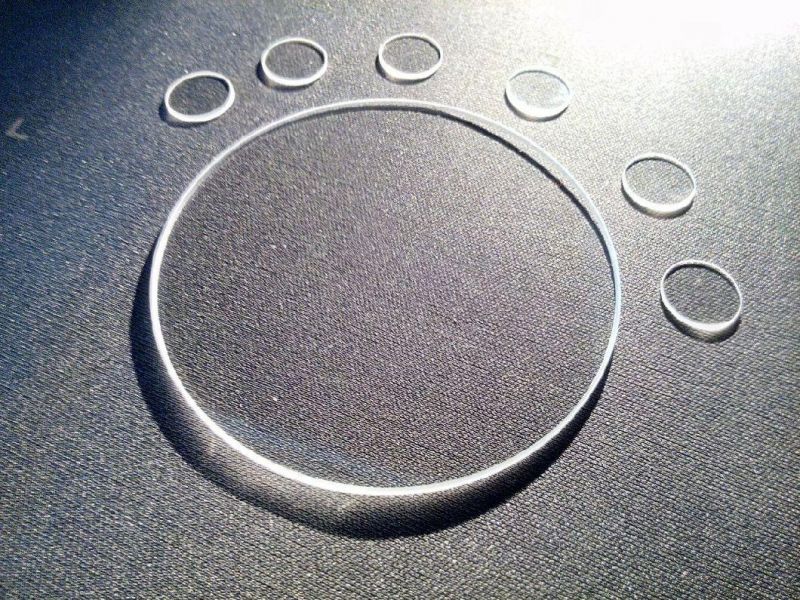

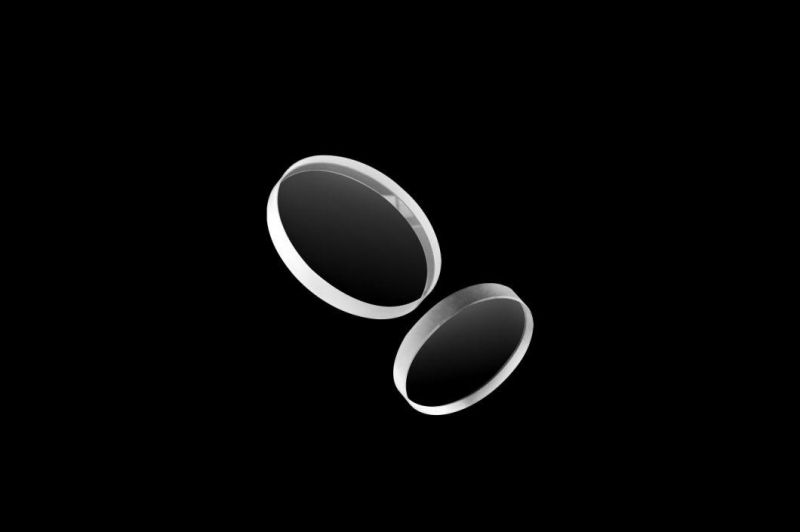

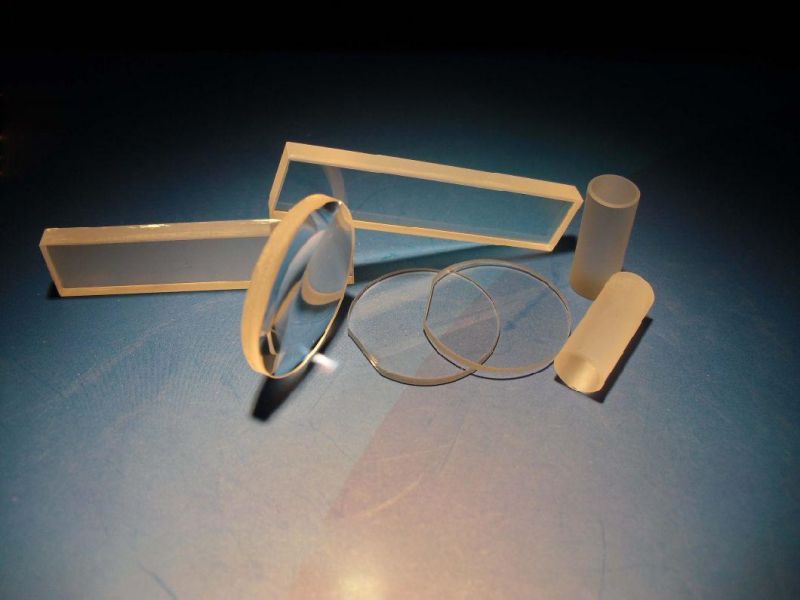

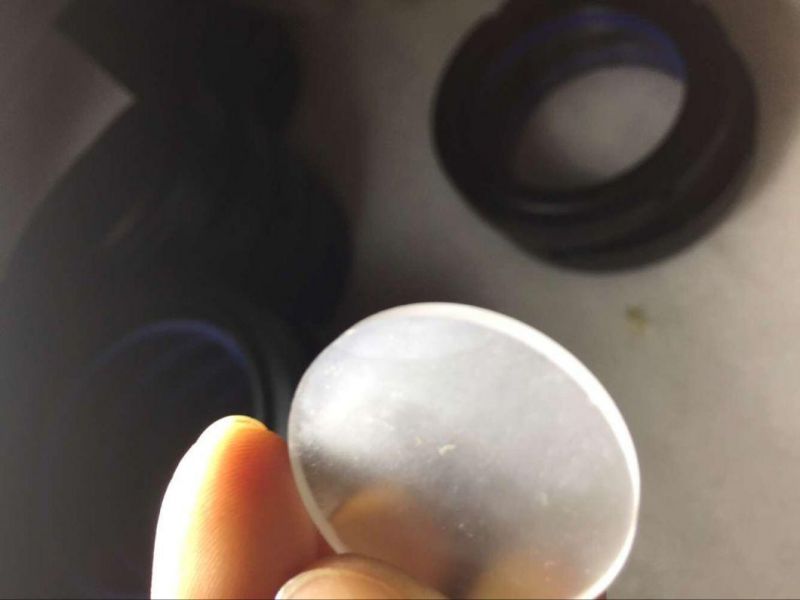

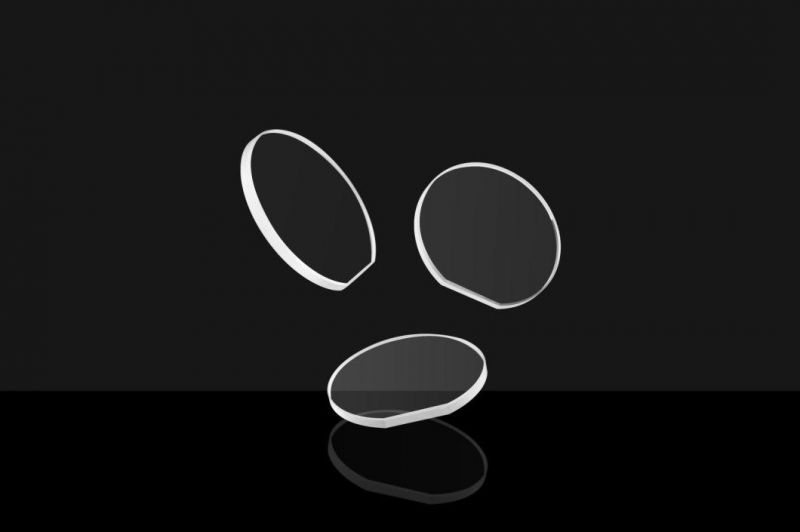

discs: round, square, drilled, step,

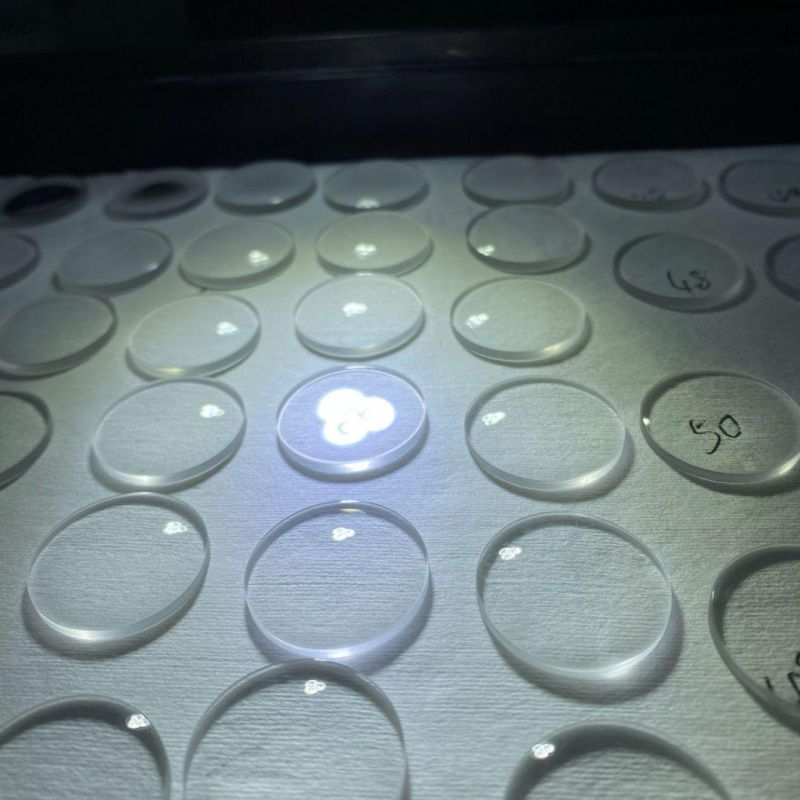

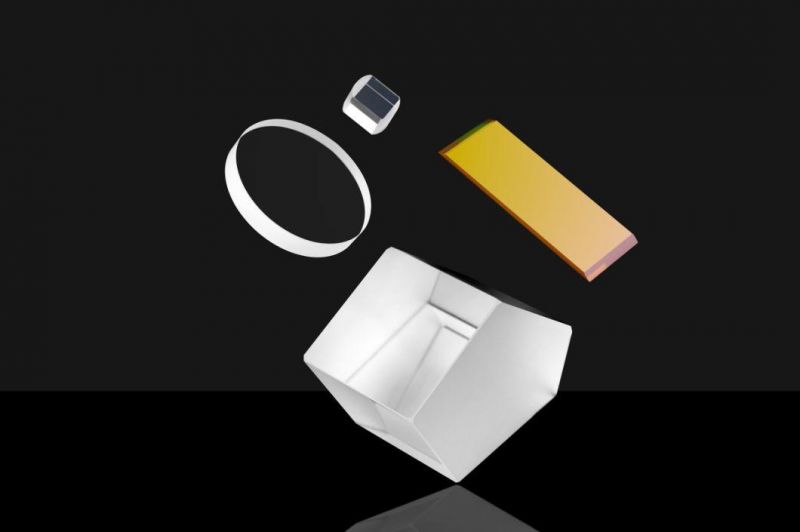

blanks: wedge,prism spherical, cylinderical, wafer
structure: single crystalline, no boundaries multi crystalline, 1-3boundaries

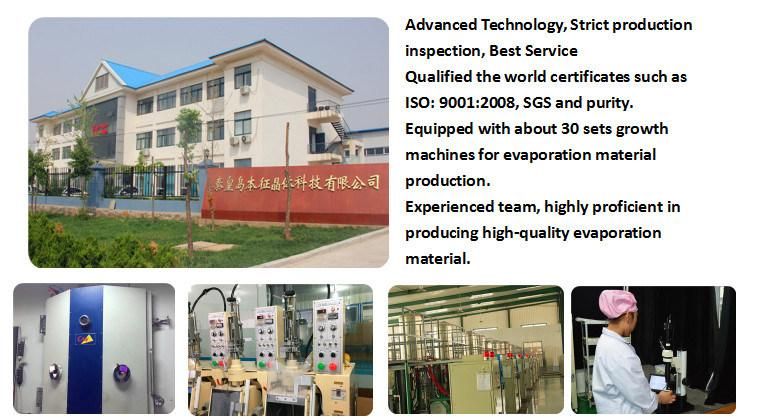

4. Our Factory

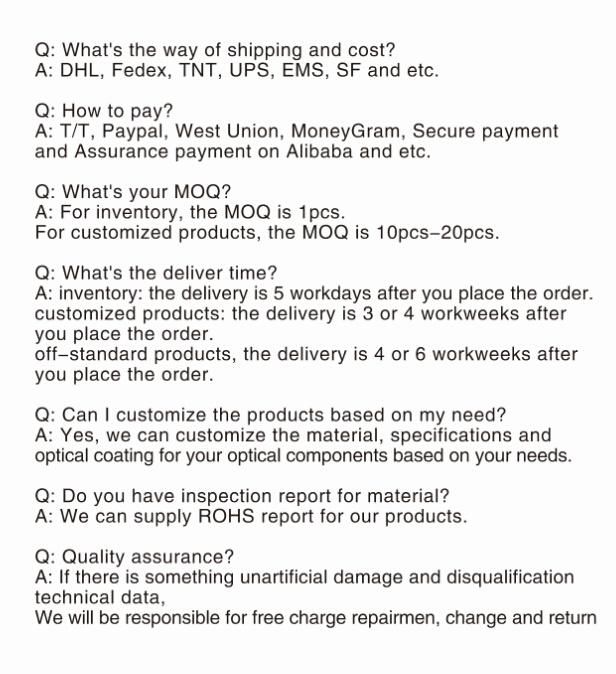

5. FAQS
