• Model NO.：AQMS-16
• Type：Laser Gas Analyzer
• Particle Parameters：Pm1.0,Pm2.5 ,Pm10,Tsp
• Flow：1.3L,Min ±5%
• Detection Period：Default 60s(6-999s Adjustable)
• Temperature：(-50-100)ºC, Accuracy ±0.3ºC
• Humidity：(0-100)%Rh, Accuracy ±3%
• Gas Parameter：Co,So2,No2,O3
• Co：(0-20) Ppm, Accuracy ±5% F.S.
• Tvoc：(0-50) Ppm, Accuracy ±5% F.S.
• Wind Speed：(0-30)M,S, Accuracy ±1m,S.
• Noise：(30-130)dB(a), Accuracy ±3dB
• Transport Package：Wooden Package
• Trademark：Scince
• Origin：Suzhou, China
• Production Capacity：50sets,Month

Basic Info.

Model NO. AQMS-16 Type Laser Gas Analyzer Particle Parameters Pm1.0/Pm2.5 /Pm10/Tsp Flow 1.3L/Min ±5% Detection Period Default 60s(6-999s Adjustable) Temperature (-50-100)ºC, Accuracy ±0.3ºC Humidity (0-100)%Rh, Accuracy ±3% Gas Parameter Co/So2/No2/O3 Co (0-20) Ppm, Accuracy ±5% F.S. Tvoc (0-50) Ppm, Accuracy ±5% F.S. Wind Speed (0-30)M/S, Accuracy ±1m/S. Noise (30-130)dB(a), Accuracy ±3dB Transport Package Wooden Package Trademark Scince Origin Suzhou, China Production Capacity 50sets/Month

Product Description

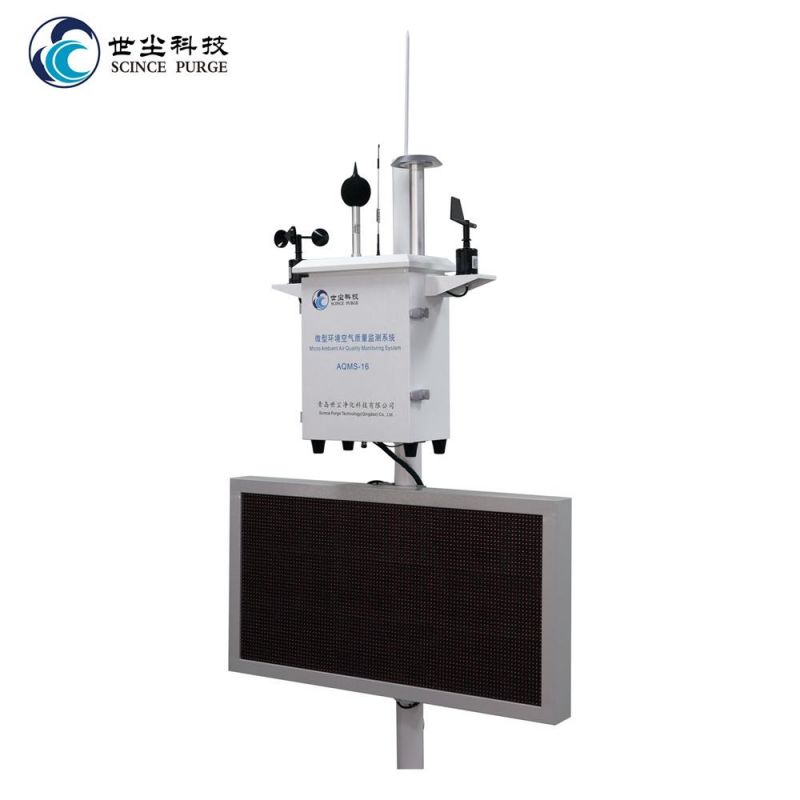

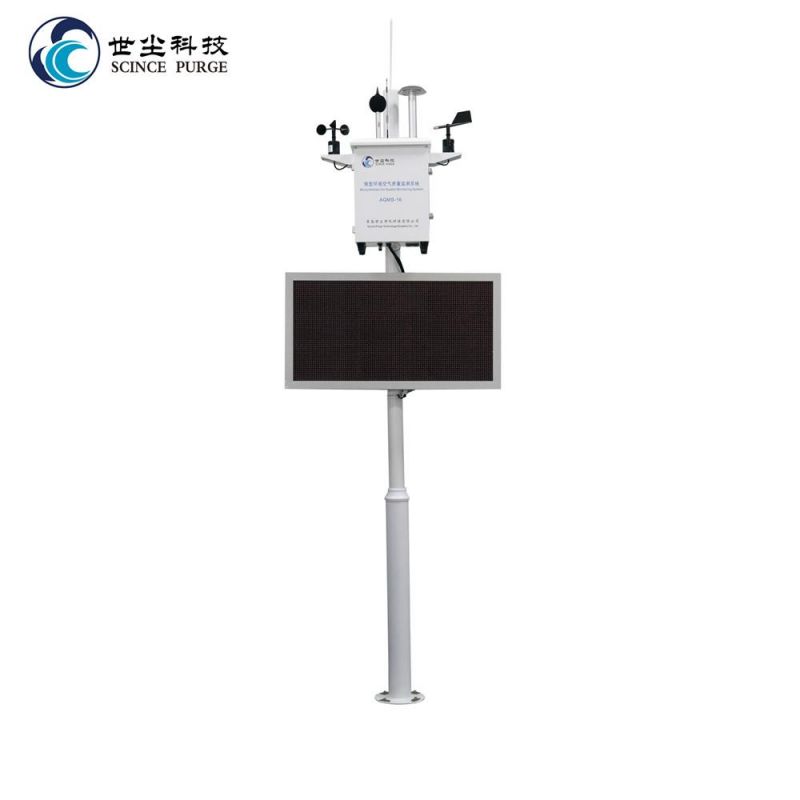

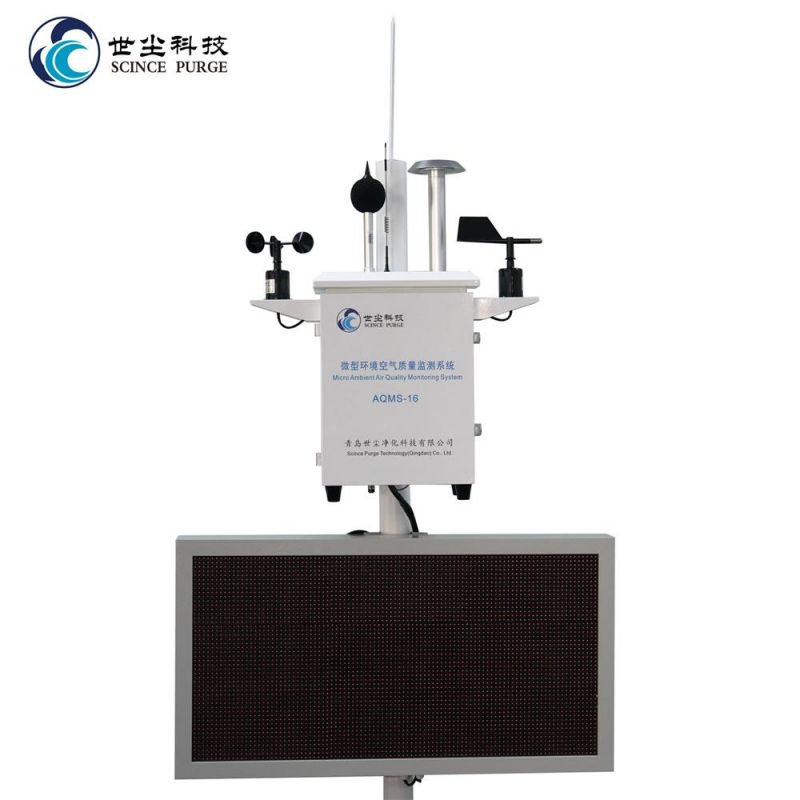

Micro Ambient Air Quality Monitoring SystemProduct Profile
AQMS-16 Micro Ambient Air Quality Monitoring System is used to detect outdoor air pollutants. Test parameters include ozone (O₃), nitrogen dioxide (NO₂), carbon monoxide (CO), sulfur dioxide (SO₂), TVOC, particulate matter (PM_2.5, PM₁₀), TSP, noise, temperature, humidity, wind speed, wind direction and air pressure. The system not only pays attention to the real-time and accuracy of data, but also takes into account the economy.

Advantage
1.Imported high-sensitivity sensor is adopted, which has fast response speed and high resolution.
2.Good data stability, with automatic zero and span calibration devices and functions.
3.Constant current control ensures stable sampling quantity and improves accuracy.
4.It has sheath gas and gas path protection functions.
5.Modular design is convenient for maintenance.
6.Have USB interface and support local export. Offline data can be automatically transmitted to the monitoring platform.
7.It can be used in rain, snow and thunder.

Application
1.Road and tunnel pollutant monitoring.
2.Urban air quality monitoring, air quality trend analysis.
3.Monitoring of particulate matter and pollution source emissions.
4.Monitoring of residential areas, schools, hospitals and other environments.
5.Park and forest environmental monitoring.
6.Atmospheric monitoring in chemical plants, power plants, incineration stations, ports, sewage treatment plants and other places.
Technical Parameters

Monitoring method	Laser scattering method
Particle parameters	PM1.0,PM2.5 ,PM10,TSP
Concentration range	0-30(mg/m³)
Monitoring accuracy	0.1(μg/m³)
Flow	1.3L/min ±5%
Detection period	Default 60s(6-999s adjustable)
Temperature	(-50-100)ºC, accuracy ±0.3ºC
Humidity	(0-100)%RH, accuracy ±3%
Gas parameter	CO,SO2,NO2,O3
CO	(0-20) ppm, accuracy ±5% F.S.
SO2,NO2,O3	(0-2) ppm, accuracy ±5% F.S.
TVOC	(0-50) ppm, accuracy ±5% F.S.
Wind speed	(0-30)m/s, accuracy ±1m/s.
Wind direction	0-360°
Noise	(30-130)dB(A), accuracy ±3dB
Power Supply	DC12V/AC220V
Communication	GPRS
Power	28W
Weight	11Kg
Applicable environment	(-40-55)ºC/(0-99)%RH
Outdoor waterproof grade	IP53

1. Are you a trading company or manufacturer?we are a professional tester manufacturer with 25 years of industry experience. Our factory is located in Suzhou, where is only 100 kilometers far away from Shanghai Hongqiao International Airport. It is pretty convenient for you to make a visit.
2. What is the L/T?
The lead time will be between15 and 30 days after deposit payment. If there is stock for the instrument you want, timely shipment will be arranged within 7 days.

3. What is your terms of payment?
Based on our sales policy, T/T 30% as deposit should be paid before order, and 70% balance payment should be completed before shipment. We will provide you with real photos or video of the instrument before balance payment.

4. What is your terms of delivery?
Available in EXW, FOB, CFR and CIF.

5. What is your packing for the tester?
Generally, packed with wooden case. We can do some adjustments in terms of your special requirement.

6. Can the mask tester be certified?
There is certification requirements for mask only, and there has no relevant certification requirements for mask tester, but a calibration report is required. we will provide a calibration report with a randomizer for our mask test instrument. The calibration report is valid for one year. After then, we can also support the corresponding calibration service for small fee.

7. Do you have after-sales service?
We can provide on-site installation and commissioning service for you, but you need to bear the travel expense of our engineer. The warranty period will be one year. Free replacement parts will be supplied during this period. Only accessories and corresponding shipping charges will be charged out of the warranty period.

8. Is there an English interface for your instrument?
Our instrument can be customized on the base of your demand. For example, both mask tester and filter material tester can be displayed in Chinese, English and Korean interfaces. The instruction manual is available in both Chinese and English.
