Tzs-Ecw Series Soil Multiple Parameters Meter (Temperature Moisture and Salinity)
Zhejiang Top Cloud-Agri Technology Co., Ltd.- Type:Soil Moisture Meter
- Analysis Method:Physical Analysis
- Display:Digital
- Application:Agriculture & Food
- Portable:Portable
- Operating Mode:Keyboard
Base Info
- Model NO.:TZS-ECW
- Off Mode:Manual
- Power:Electronic 220V,50Hz
- Usage:Soil Salt, Moistrue, Temperature Meter
- Storage Data:up to 120000
- Function:Optional Voice Alarm
- Delivery Time:10 Days After Receive Payment
- Transport Package:Carton, Export Standard Package.
- Specification:ISO9001
- Trademark:TOP
- Origin:Zhejiang, China (Mainland)
- HS Code:9031809090
- Production Capacity:1000 Piece,Pieces Per Month
Description
Basic Info.
Model NO. TZS-ECW Off Mode Manual Power Electronic 220V/50Hz Usage Soil Salt, Moistrue, Temperature Meter Storage Data up to 120000 Function Optional Voice Alarm Delivery Time 10 Days After Receive Payment Transport Package Carton, Export Standard Package. Specification ISO9001 Trademark TOP Origin Zhejiang, China (Mainland) HS Code 9031809090 Production Capacity 1000 Piece/Pieces Per MonthProduct Description

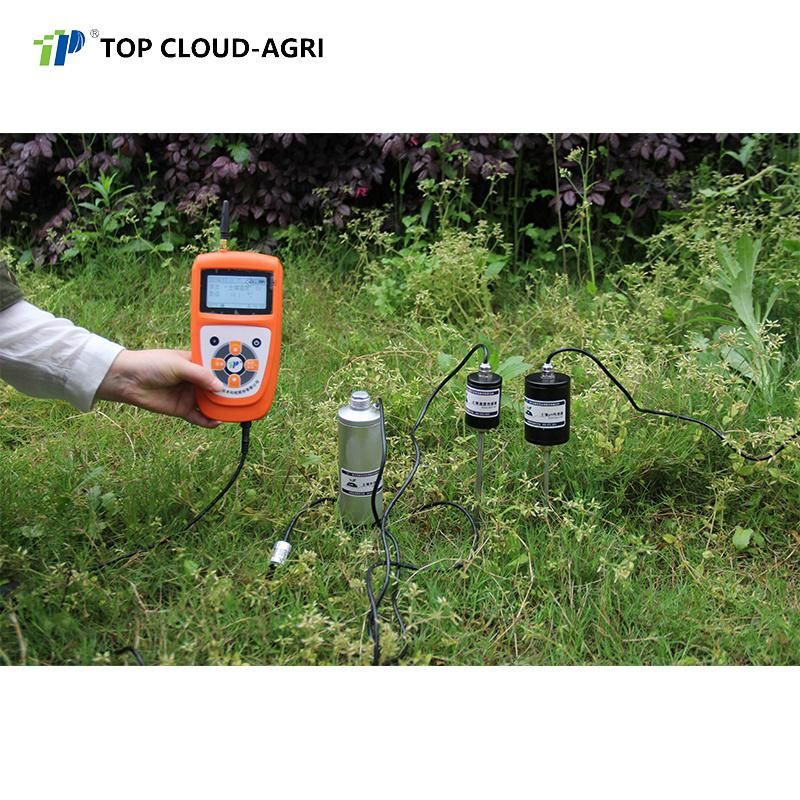

Name: Soil temperature, moisture and salinity meterModel: TZS-ECW
Introduction
The meter can test three kinds of parameters: Soil temperature, soil moisture, and soil salinity. With the handset function and PC software function, automatically record data up to 120000 groups, real-time display, data can be uploaded to the computer and export to Excel, data curve drawing, map printing, widely used in agricultural, forestry, farms and other agricultural and forestry production, scientific research departments.
With GPS positioning function, global real-time positioning and navigation and Equipped with TF Card, with GPRS function, but need to configure SIM card by yourself
Technical parameters of the meter
Power: DC 6V~12V, AC 220V/50Hz; (AC /DC)
Current: <5mA
Weight: 300g
Size: 160mm× 75mm× 30mm
Environment temperature: -40° C~80° C
Relative humidity: ≤ 100%RH
Storage data: A maximum of 120000 groups of data
Soil salinity sensor
The sensor can be directly buried in the soil
Ambient temperature: 0~50° C
Measuring range: 0-19.99ms/cm
Measuring accuracy: ± 2%
Resolution: 0.01ms/cm;
Soil temperature sensor
Environmental temperature: -40° C ~ 80 ° C;
Relative humidity: ≤ 95% RH;
Measuring accuracy: ± 0.3° C
Measurement range: -40° C ~ 100° C
Soil moisture sensor
Relative Humidity: ≤ 95% RH;
Measuring range: 0% ~ 100%
Relative error: ≤ 3%
Response time: ≤ 2s
Standard cable: 1.5m (can be customized according to customer demand, the longest is 1000m)
