• Model NO.：SZF-06C
• Temperature Controlling Range：Room Temperature 0-100°c
• Power：AC220V,50Hz, 1000W
• Shape Size：670×250×600mm
• Weight：23kg
• Transport Package：Satandard Export Package
• Specification：Soxhlet Extraction Fat Analyzer
• Trademark：West Tune
• Origin：China
• HS Code：9031809090
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. SZF-06C Temperature Controlling Range Room Temperature 0-100°c Power AC220V/50Hz, 1000W Shape Size 670×250×600mm Weight 23kg Transport Package Satandard Export Package Specification Soxhlet Extraction Fat Analyzer Trademark West Tune Origin China HS Code 9031809090 Production Capacity 5000PCS/Month

Product Description

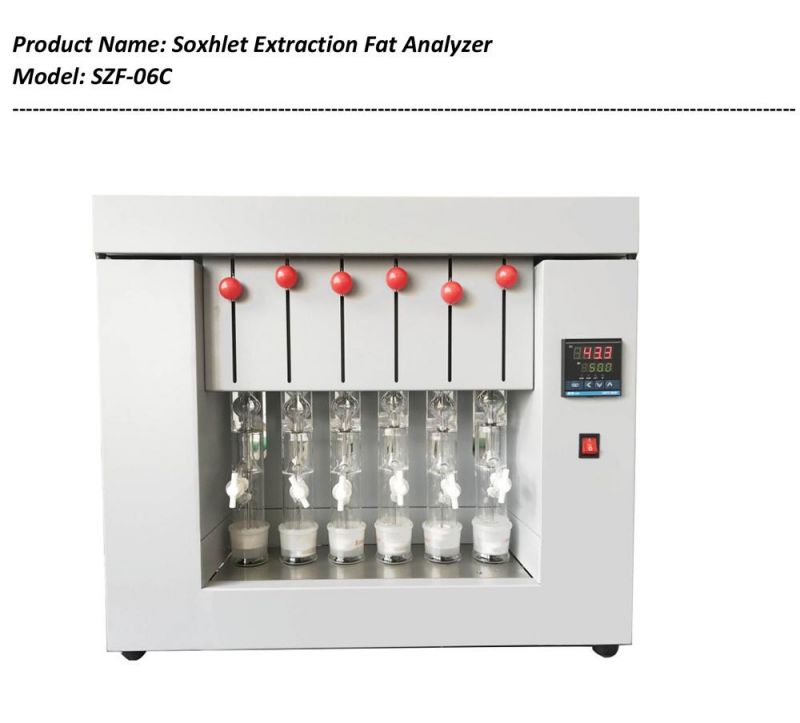

Product Name: Soxhlet Extraction Fat Analyzer
Model: SZF-06C

Product Description
Fat Analyzer tests fat content according to Soxhlet Extraction principle
It features extraction, reagent recovery, cooling system and temperature controlling.
 is a common fat tester, according to the Soxhlet extraction principle, using weight determination method to determine the content of fat.That is, the fat is dissolved in the organic flux, the fat is separated from the flux by extraction method, and then dried, weighed, and the fat content is calculated.
The instrument is mainly composed of three parts: heating extraction, flux recovery and cooling.During the operation, the heating temperature can be adjusted according to the different boiling point and ambient temperature of the reagent. The sample is soaked and extracted repeatedly in the extraction process, so as to achieve the purpose of rapid determination.

Characteristic

1. Small volume, fast heating speed, even heating.
2. Extraction bottle and apparatus are made of glass to avoid other spills
3. Accurate digital temperature controlling, easy to operate.

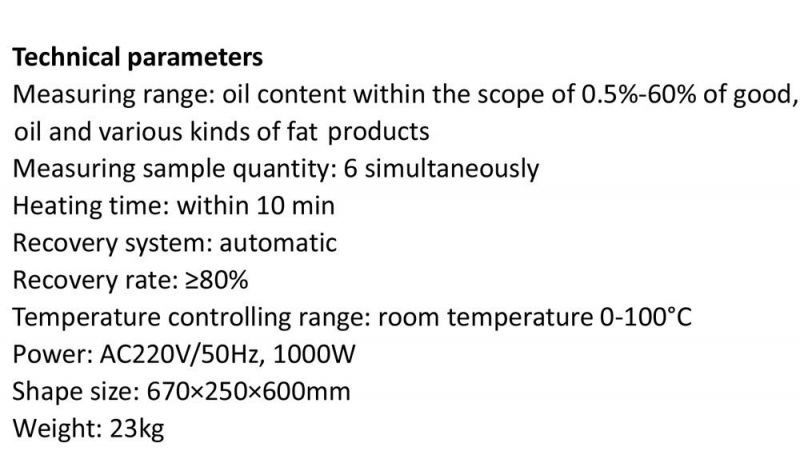

Technical parameters

Measuring range	oil content within the scope of 0.5%-60% of good, feed, oil and various kinds of fat products
Measuring sample quantity	6 simultaneously
Heating time	within 10 min
Recovery system	automatic
Recovery rate	≥80%
Temperature controlling range	room temperature 0-100°C
Power	AC220V/50Hz, 1000W
Shape size	670×250×600mm
Weight	23kg
