• Model NO.：OPGD1000
• Model No：Opgd1000
• Detect Principle：Tdlas
• Working Voltage：DC14V-32V
• Output：4-20mA or RS485
• Detecting Distance：≤120m
• Response Time：T90≤3s
• Protection Grade：IP66
• Working Temperature：-40ºC-70ºC
• Working Humidity：0-95%Rh (No Dews)
• Explosion-Proof：Exdiict6
• Transport Package：Carton
• Origin：China Mainland
• Production Capacity：2000PCS

Basic Info.

Model NO. OPGD1000 Model No Opgd1000 Detect Principle Tdlas Working Voltage DC14V-32V Output 4-20mA or RS485 Detecting Distance ≤120m Response Time T90≤3s Protection Grade IP66 Working Temperature -40ºC-70ºC Working Humidity 0-95%Rh (No Dews) Explosion-Proof Exdiict6 Transport Package Carton Origin China Mainland Production Capacity 2000PCS

Product Description

Description
This OPGD1000 Laser-Based Open Path Methane Detector is specific to natural gas / methane (CH4) and can detect CH4 over distances of 5 to 120 meters. The OPGD 100 system is designed to keep your personnel safe in high risk environments.

Applications
OPGD1000 Laser-Based Open Path Methane Detector is widely used in industrial gas detection fields such as petroleum refinery, LNG/LPG cylinder factory, and offshore oil and gas platform.

Features
Fast response
Vapor resistance
High selectivity
Detect gas leakage covering certain area
Maintenance free
Shock resistance
High sensitivity,only response to methane,no interference from water vapor,car exhaust and other gases

Technical Data
Target Gas: Methane
Range: 0-100%LEL·m(0~2000ppm·m)
Advised Alarm: 20%LEL·m
Response Time: T90≤3s
Detecting Distance: ≤120m
Working Temperature: -40ºC-70ºC
Working Humidity: 0-95%RH
Working Voltage: DC14V-32V
Explosion-proof: ExdIICT6
Protection Grade: IP66
Output: 4-20mA or RS485
Material: 316L stainless steel
Certificate: SIL2

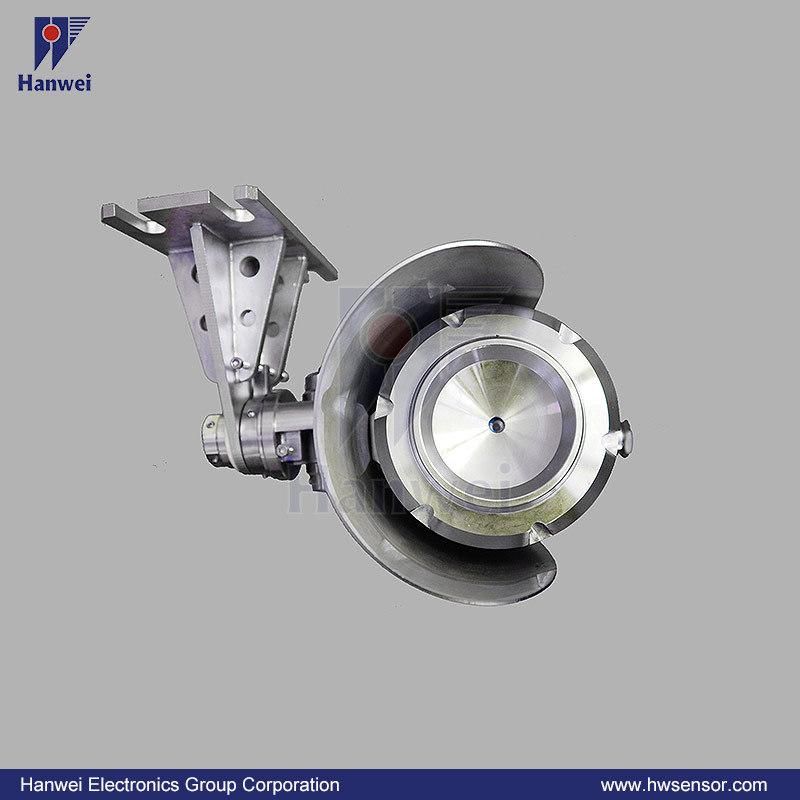

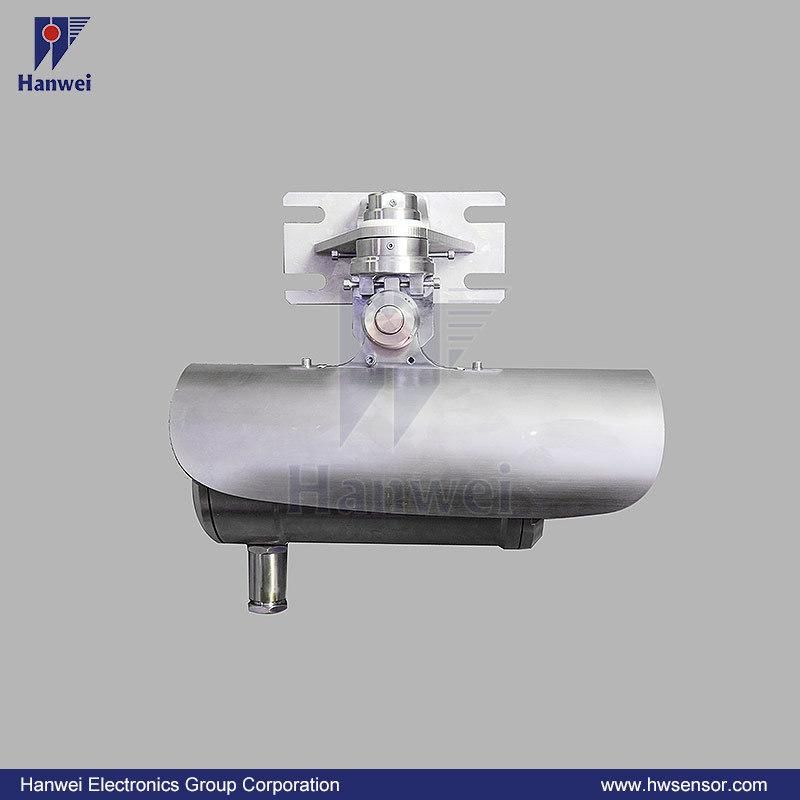

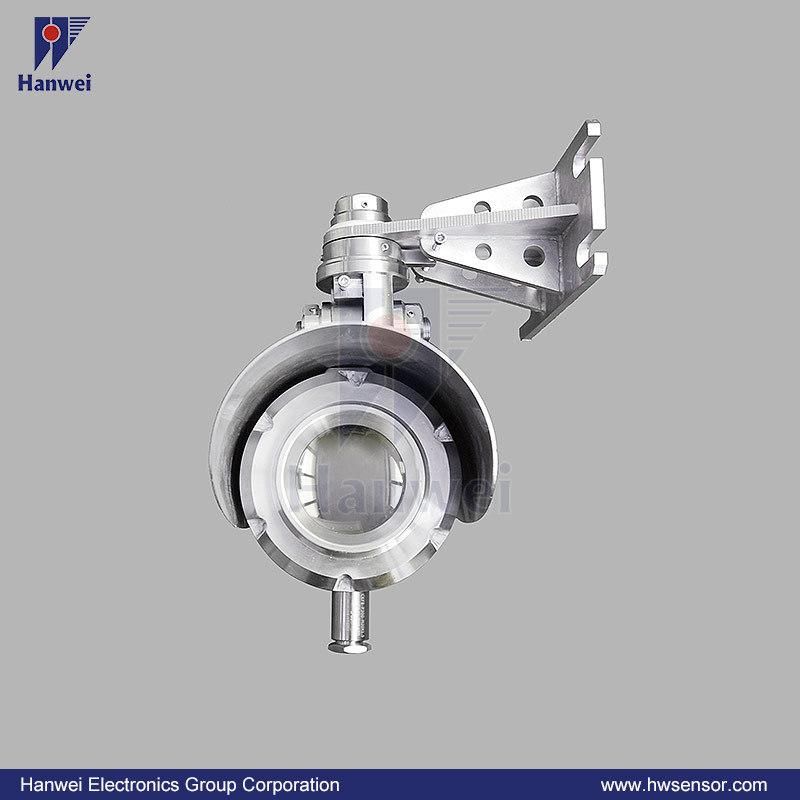

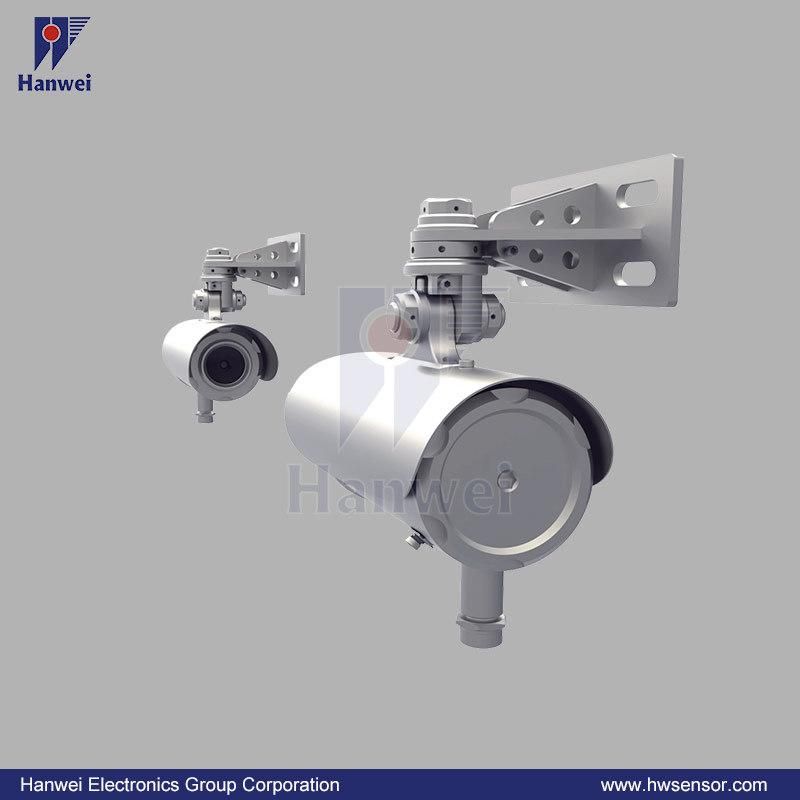

Product Pictures









FAQ:
Q1: Why do you choose our company?
A1: We are a professional manufacturer, We have seasoned engineers with 20 years' experience in gas detection field.  so we can offer products of the same quality at the best prices.

Q2: Can I have a sample order?
A2: The sample order to test are welcomed at the first time.

Q3: What certification do you have?
A3: CE, EN, BSI, UL, ISOD and etc.

Q4: How do I get price information?
A4: Sales representatives are responsible for providing detailed price information within 1 workday after get your inquiry.

Q5: If I order a large quantity, what's the best price?
A5: Please send the detailed enquiry to us, including item model number, quantity for each item, quality requirement, Logo and payment terms etc. We will make an accurate quotation to you at the earliest time.
