Sr6828p Moisture Meter (Pin type)
Shanghai Total Industrial Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Display：Digital
- Portable：Portable
- Off Mode：Automatic
- Transport Package：Carton
Base Info
- Model NO.：SR6828P
- Trademark：ShowRange
- Origin：China
- HS Code：9025800000
- Production Capacity：1000PCS,Month
Description
Dimensions Unit: 182*68*38 mm Sensor: 170*44*25 mm Weight 334g (Not Including Batteries)
Standard Accessories:
1. Main Unit
2. Carrying Case(B02)
3. Operation Manual
4. Separate Probe
Optional Accessories:
Moisture standard 18%

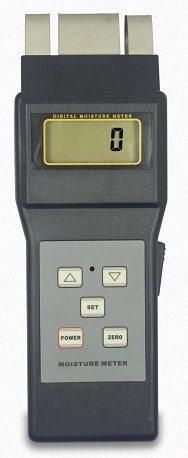

SR6812 Moisture Meter (Search type)
Applications:
Applicable of wood fiber materials, wooden articles, Chinese traditional medicine, tobacco, cotton paper, building, soil and other fibre materials.
Specifications:
Standard Accessories:
1. Main Unit
2. Carrying Case
3. Operation Manual
Special Noting: 1, All above SR68xx Series is applicable of wood fiber materials, wooden articles, Chinese traditional medicine, tobacco, cotton, paper, building, soil and other fibre materials and other materials which are not electric conducting.
Special Noting: 2, SR6825P can be used to test dry agriculture items (not including dry seefood) such as copra, gambier, and can be used to test straw, silage/feedstuff, when it is equipped with long probe as SR6825G (Seperate Probe P25G Size: 368*44*25mm), order model number is SR6825P+(probe P25G).
SR6825P, SR6825PS can be equiped with long probe P25G, order model number is SR6825P+(probe P25G), SR6825PS+(probe P25G).
Special Noting: 3, SR6825S can be used to test plastic resin, Tea, cheese. It is suggested to use SR6825S to test chemical items.
As buildings are most made of hard materials such as concrete, hard wood floor, we suggest to use search type moisture meter as SR6825S, SR6812 to test. However, SR6825S is the best choise, because SR6825S searching sensor is plain, can touch more area and then give more accurate testing. We don't suggest to use pin type to as SR6825P, SR6806 to test, because the hard materials are not good for pin to go into.
For building/concrete tesing, SR6825S can test up to 80% moisture, but generally the moisture of building/concrete won't be so high.
Special Noting: 4, SR6806's probe pin length is 3cm, SR6825P, SR6825PS is 1cm.
Special Noting: 5, Species List for SR6825P, SR6825S, SR6825PS
Special Noting: 5, Density code table for SR6825S, SR6825PS
Special Noting: 6, all above moisture meters CAN NOT test the moisture of the items which are electric conducting.
Special Noting: 7, SR6825P, S, PS is more professional and accurate and can test more materials than SR6812, SR6806, so it is more expensive.
Standard Accessories:
1. Main Unit
2. Carrying Case(B02)
3. Operation Manual
4. Separate Probe
Optional Accessories:
Moisture standard 18%
Applications:
Applicable of wood fiber materials, wooden articles, Chinese traditional medicine, tobacco, cotton paper, building, soil and other fibre materials.
Specifications:
| Operating Principle | Electromagnetic induction |
| Measuring Range | 0~80 % |
| Accuracy | ± (0.5%n+0.5) |
| Resolution | 0.1 |
| Display | 4 Digits, 10 mm LCD |
| Calibration | Automatic |
| Battery Indicator | Low Battery Indicator |
| Penetration Depth | up to 50 mm |
| Induction Value | Specified |
| Operating Conditions | Temperature: 0~50 %°C, Humidity: < 90 %RH |
| Power Supply | 4*1.5 AAA Size (UM-4) Battery |
| Dimensions | 220*77*43 mm |
| Weight | 260g (Including Batteries) |
1. Main Unit
2. Carrying Case
3. Operation Manual
Special Noting: 1, All above SR68xx Series is applicable of wood fiber materials, wooden articles, Chinese traditional medicine, tobacco, cotton, paper, building, soil and other fibre materials and other materials which are not electric conducting.
Special Noting: 2, SR6825P can be used to test dry agriculture items (not including dry seefood) such as copra, gambier, and can be used to test straw, silage/feedstuff, when it is equipped with long probe as SR6825G (Seperate Probe P25G Size: 368*44*25mm), order model number is SR6825P+(probe P25G).
SR6825P, SR6825PS can be equiped with long probe P25G, order model number is SR6825P+(probe P25G), SR6825PS+(probe P25G).
Special Noting: 3, SR6825S can be used to test plastic resin, Tea, cheese. It is suggested to use SR6825S to test chemical items.
As buildings are most made of hard materials such as concrete, hard wood floor, we suggest to use search type moisture meter as SR6825S, SR6812 to test. However, SR6825S is the best choise, because SR6825S searching sensor is plain, can touch more area and then give more accurate testing. We don't suggest to use pin type to as SR6825P, SR6806 to test, because the hard materials are not good for pin to go into.
For building/concrete tesing, SR6825S can test up to 80% moisture, but generally the moisture of building/concrete won't be so high.
Special Noting: 4, SR6806's probe pin length is 3cm, SR6825P, SR6825PS is 1cm.
Special Noting: 5, Species List for SR6825P, SR6825S, SR6825PS
| Code | Materials |
| Cd00 | Abies grandis, Acer macrophyllum, Maple, Acer saccharum, Pine(scots), yellow Pine, Dalbergia latifolia, Dipterocarpus zeylanicus, Eucalyptus microcorys, Fraxinus excelsior, Cupressus spp, Pinus contorta, Pterygota bequaertii, Quercus robur, Pinus sylvestris, Balsa, Boxwood (maracaibo), red Gum(American), Gum spotted, Gurjun, Birch, Cypress(African) Karri, Oak(European), Oak(Japanese), black Poplar, Redwood(Baltic European), Rosewood (Indian), Pine(lodgepole), Tallowwood, Walnut (American), Kapur |
| Cd01 | Araucaria bidwilli, Eucalyptus crebra, Eucalyptus saligna, Flindersia brayleyana, Fraxinus Americana, Intsia bijuga, Podocarpus dacrydioides, Sequoia sempervirens, Pinus pinaster, Gum(southern), Mahogany (west Indian), Douglas fir, Maple (queensland), red (light or dark) Meranti, white Meranti, Redwood(Californian), Walnut (new guinea), white Pine (new Zealand), Araucaria angustifolia |
| Cd02 | Distemonanthus benthamianus, Jarrah, Endiandra palmerstonii, Erythrophleum spp, Abies alba, Fagus sylvatica, Grevillea robusta, Juglans regia, Larix deciduas, Larix occidentalis, Podocarpus spicatus, Picea abies, Pinus caribaea, Pinus nigra, Pinus palustris, Pinus ponderosa, Pinus radiata, Taxus baccata, Thuja plicata, Tsuga heterophylla, red Cedar (western), Chestnut, Greenheart, Hemlock (western), Larch ( European), Larch (Japanese), Queensland walnut, red Seraya, Spruce, Silky oak( African), Silky oak( Australian), Pine (Corsican), Pine, radiata, Walnut(European), Walnut (queensland), Whitewood, Yew, Pine(ponderosa), Stringybark, Oak (tasmanese) |
| Cd03 | Khaya senegalensis, Podocarpus totara, Quercus cerris, Ulmus American, Ulmus procera, Ulmus thomasii, Afzelia, Kauri( new Zealand), Lime, Elm( English), white Elm, Matai, Oak( Turkey), Pyinkado |
| Cd04 | Acer pseudoplatanus, Carya glabra, Sycamore, Cassipourea elliotii, Dipterocarpus(keruing), Teak, Cordia alliodore, Larix occidentalis, Pterocarpus soyauxii, Hickory, Padauk( African) |
| Cd05 | Afrormosia elata, Diospyros virginiana, Gonystylus macrophyllum, Pterocarpus indicus, Afrormosia, Amboyna, Basswood, Coachwood, Persimmon |
| Cd06 | Calophyllum brasiliense, Guarea cedrata, white Guarea |
| Cd07 | Abies procera, Agathis robusta, Betula pendula, Croton megalocarpus, Prunus avium, Agba, Birch( European), Cedar( west lndian), black Guarea, Kauri (queensland), Walnut( African), Cherry (european), Utile |
| Cd08 | Chipboard, Paper |
| Cd09 | Building, Wall, Concrete |

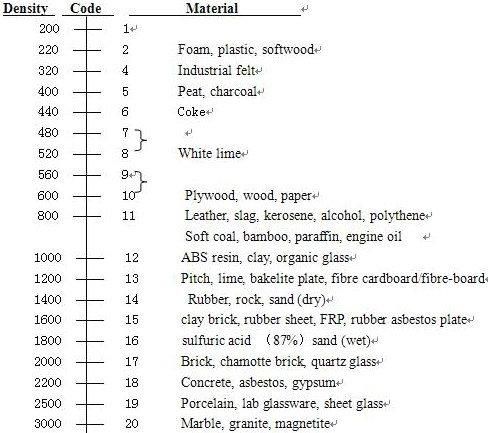

Special Noting: 5, Density code table for SR6825S, SR6825PS
Model: SR6825S | Model: SR6825PS |
Special Noting: 6, all above moisture meters CAN NOT test the moisture of the items which are electric conducting.
Special Noting: 7, SR6825P, S, PS is more professional and accurate and can test more materials than SR6812, SR6806, so it is more expensive.
 | SR6825F Foam Moisture Meter / Sponge Moisture Meter Description: * Be a powerful and versatile instrument for measuring and diagnosing dampness in foam through testing the capacitance, the foam moisture can be obtained. * Digital display gives exact reading with guessing or errors while a color coded light(LED) indicates the moisture condition of the Cotton. This combined presentation of moisture measurement helps the user to map the extent of problems and monitor changes in condition precisely and reliably. * Specially used to test cotton moisture in the process of allotment, acquisition, storage and machining. * Can communicate with PC computer for statistics and printing by the optional cable and software for USB interface. * Power off automatically, save electricity. Specification Display: 4 digits, 10mm LCD With color coded LED indication Green LED represents a safe, air-dry state. Yellow LED represents a borderline State. Red LED represents a damp state. Measurement Range: 0~200% Accuracy: ±(0.5%n +0.5) Resolution: 0.1 Penetration depth: up to 50mm PC interface: USB, Bluetooth Power supply: 4x1.5 AAA size (UM-4) battery Power off : 2 modes Manual off at any time Auto power off after 5 minutes from last key operation Operating conditions: Temperature: 0-50 ºC Humidity : below 90% RH Dimensions: 165x62x26mm or 6.5x2.4x1.0 inch Weight: 119g (not including batteries) Packing: 20PCS/CTN, CTN SIZE: 43.5*27*56.5CM, N.W/G.W: 16/17KGS Optional: cable and software for USB interface |
