• Model NO.：T9010Fe
• Lower limit of Detection：0.01
• Resolution：0.01
• Accuracy：+,-10% or +,-8mg,L(Take the bigger value)
• Repeatability：10% or 6mg,L(Take the bigger value)
• Transport Package：Wooden Box
• Specification：Height1500xWidth 550xDepth 450(mm)
• Trademark：Twinno
• Origin：Shanghai, China
• HS Code：9027
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. T9010Fe Lower limit of Detection 0.01 Resolution 0.01 Accuracy +/-10% or +/-8mg/L(Take the bigger value) Repeatability 10% or 6mg/L(Take the bigger value) Transport Package Wooden Box Specification Height1500xWidth 550xDepth 450(mm) Trademark Twinno Origin Shanghai, China HS Code 9027 Production Capacity 1000PCS/Month

Product Description

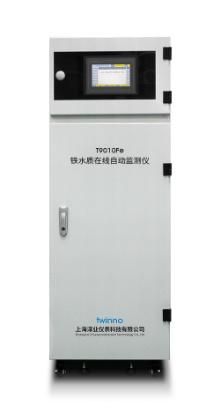

T9010Fe On-line Automatic Analyzer








Introduction:

Although iron is an essential trace element in human body. Iron itself is not toxic, but it can also lead to iron poisoning when ingested in excess or by mistake. Acute iron poisoning occurs mostly in children, and chronic iron poisoning occurs in the middle and old people over 45 years old, and the majority of men. It is reported that iron poisoning can also induce epilepsy.
The analyzer can work automatically and continuously for a long time without attendance according to the site settings. It is widely used in industrial pollution source discharge wastewater, industrial process wastewater, industrial sewage treatment plant wastewater, municipal sewage treatment plant wastewater and other occasions. According to the complexity of site test conditions, the corresponding pretreatment system can be selected to ensure the test process is reliable,test results are accurate, and fully meet the needs of different occasions.

Product principle:
This product is determined by spectrophotometric method. Under the condition of certain acidity, the ferrous ions in the sample form red complex with the indicator, and the change of color is detected by the analyzer, and the change is converted into iron value. the amount of colored complexes generated is equivalent to the amount of iron.
This product is suitable for waste water with iron in the range of 0-50 mg/L.


Specification:


No.	Item	Technical Parameters
1	Application Range	This product is suitable for waste water with iron in the range of 0-50 mg/L.
2	Test Methods	The colorimeteic method of 1,10-Phenanthroline hydrate
3	Measuring range	0~50mg/L
4	Lower limit of Detection	0. 05
5	DPI	0.001
6	Accuracy	±10% or ± 0.1mg/L (the bigger one between them)
7	Repeatability	10% or 0.1mg/L (the bigger one between them)
8	Zero Drift	±0.05
9	Span Drift	±10%
10	Measurement cycle	Minimum 20min, it can be set
11	Sampling period	Time interval (adjustable), integral hour or trigger measurement mode can be set.
12	Calibration cycle	Time interval (adjustable), integral hour or trigger measurement mode can be set.
13	Maintenance cycle	Maintenance interval is more than one month, about 30 minutes each time.
14	Man-machine operation	Touch screen display and instruction input.
15	Self checking protection	Working status is self-diagnostic, abnormal or power failure will not lose data. Automatically eliminates residual reactants and resumes work after abnormal reset or power failure.
16	Data storage	No less than half a year data storage
17	Input interface	Switch quantity
18	Output interface	Two RS232 digital output, One 4-20mA analog output
19	Working conditions	Working indoors; temperature 5-28ºC; relative humidity≤90% (no condensation,no dew)
20	Power Supply and Consumption	AC230±10%V, 50~60Hz, 5A
21	Size	Height1500×Width 550×Depth 450(mm)

After Sales Service

* The warranty period is 12 months from commissioning acceptance date on. In addition, we supply 1 year warranty and lifelong free technical guiding and training.
* We guarantee the maintenance time no more than 7 working days and response time within 3 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.
