• Model NO.：LTL-SP-200
• Origin：China
• Production Capacity：100000units,Month

Basic Info.

Model NO. LTL-SP-200 Origin China Production Capacity 100000units/Month

Product Description

Multi-Positon Magnetic Stirrer 4 8 12 Stirring Point

Multi-Positon Magnetic Stirrer

Model:LTL-SP100



Product description:

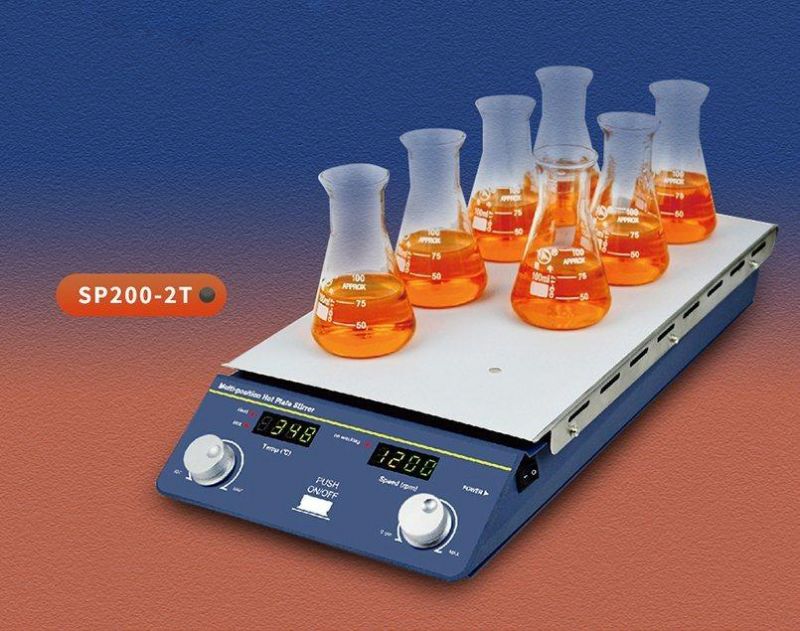

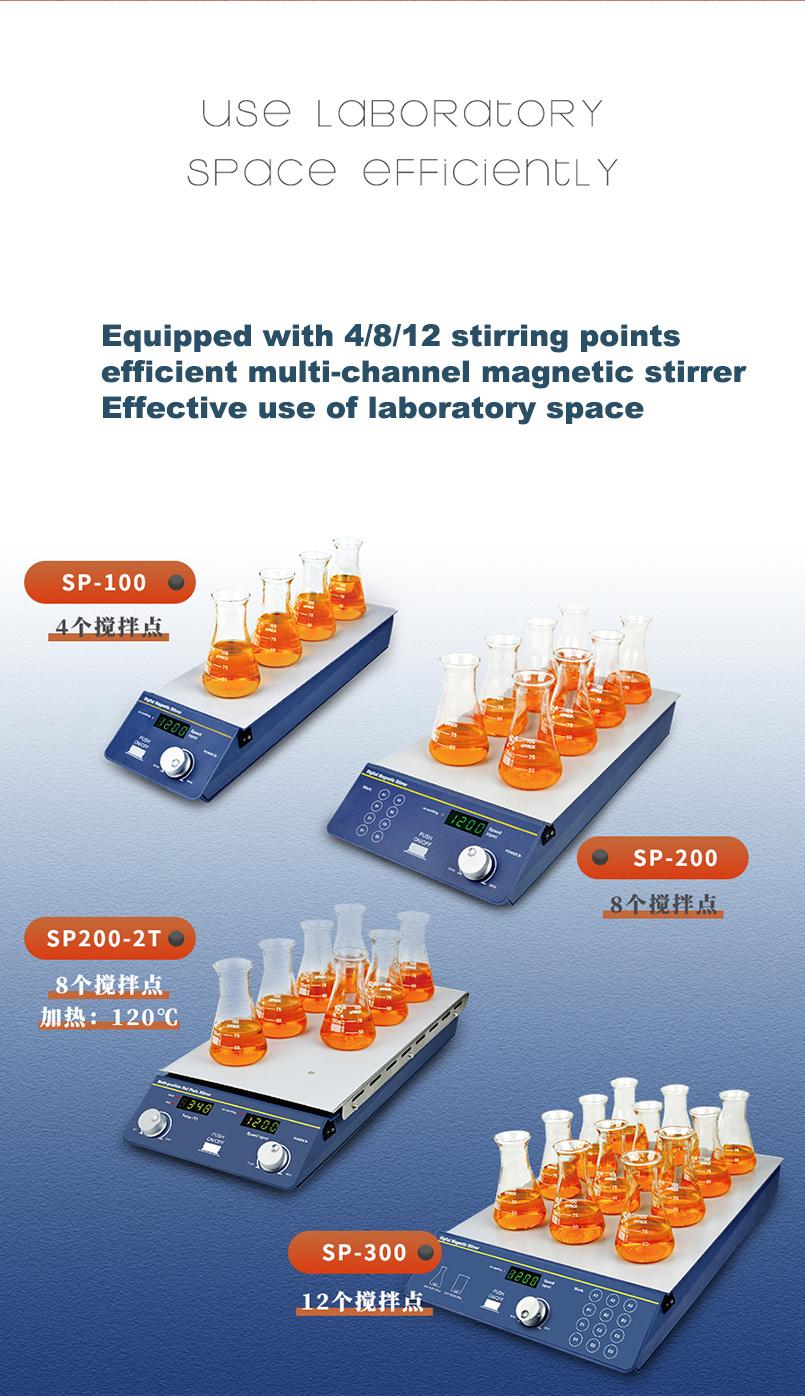

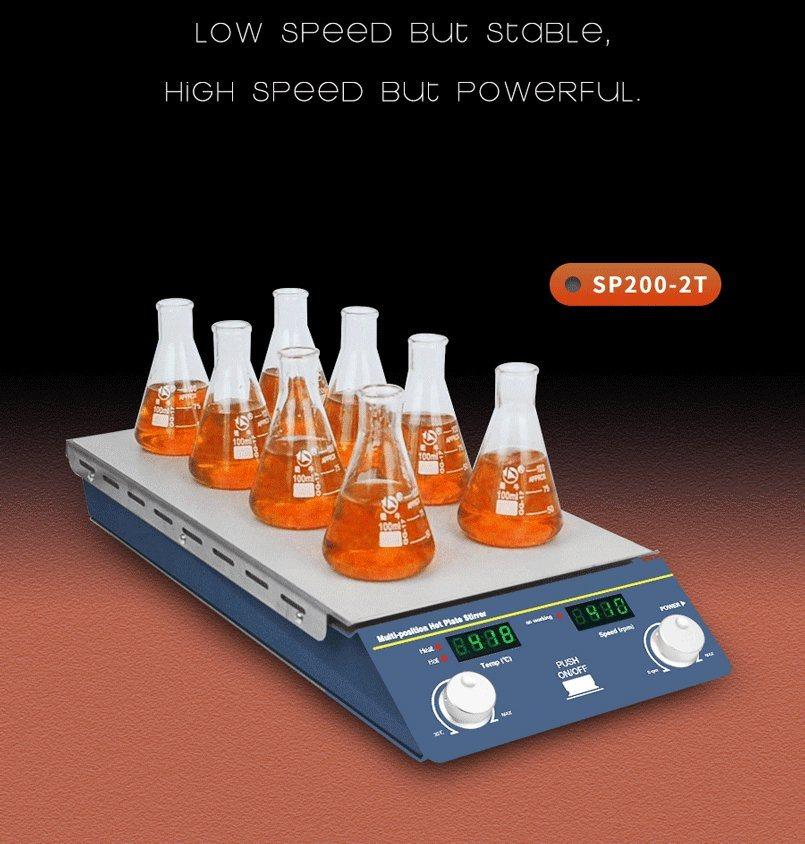

SP-200T Tseries Multi-position Magnetic Stirrer is designed for the high-efficiency experiments and has 4/8/12 stirring bar configurations to choose. It can use laboratory space efficiently. DC brushless motor makes the model, low speed but stable,high speed but powerful with low noise. Stainless steel is coated by silicone resin film disk. Non-slip and anti-corrosion.



Model	SP-100	SP-200	SP-300	SP200-2T
Stirring Point Quantity	4	8	12	8
Max.Size of Stirring Bars	8 x46mm	8 x46mm	8x46mm	8 x46mm
Max.Stir Capacity	400ml x 4	400ml x 8	400ml x12	400ml x 8
Digital Display	Speed Display	Speed Display	Speed Display	Temp.& speed
Speed Range	200~1200rpm	200~1200rpm	200~1200rpm	200~1200rpm
Temp. Control Range (surface)	/	/	/	R.T.+5ºC~120ºC
Platform Material	stainless steel with silicon pad	stainless steel with silicon pad	stainless steel with silicon pad	stainless steel with silicon pad
Motor	DCbrushless motor	DC brushless motor	DC brushless motor	DC brushless motor
Voltage	AC100~230V, 50/60Hz	AC100~230V, 50/60Hz	AC100~230V, 50/60Hz	AC 220VIAC 110V, 50/60Hz
Power	2ow	20w	20w	400w
Fuse	250V,1A,5×20	250V,1A,O5×20	250V,1A,5×20	250V,5A3A,5×20
Dimension (WxDxH)	W.115xD.480 x H.50mm	w.205xD.480 x H.50mm	w.295xD.480 x H.50mm	w.205×D.480 x H.50mm
Net Weight	3kgs	4kgs	5kgs	5.3kgs
